Revolution 54 Plus - Relocatable Partition System

Name: Revolution 54 Plus - Relocatable Partition System
Brand: Optima
SKU: 4h9VDLDTnQNjARa2zxTmYL

Verified by manufacturer 4 months ago

Revolution 54 Plus - 10 mm toughened glass

Optima

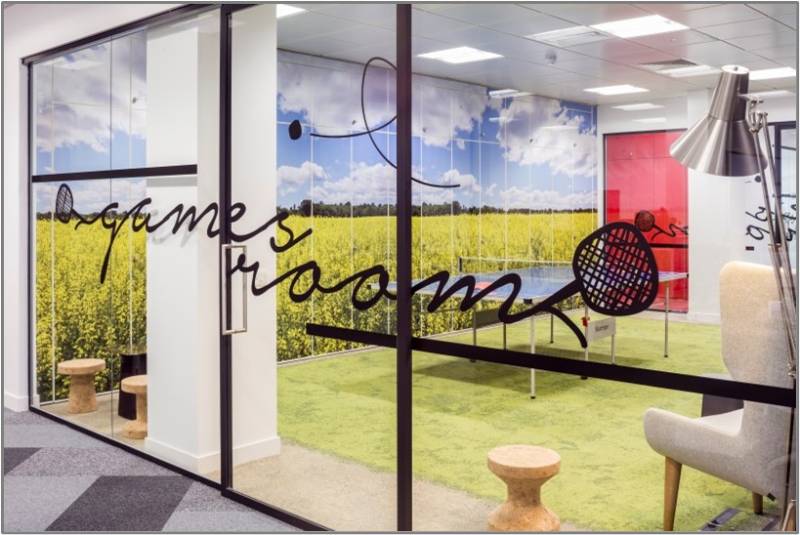

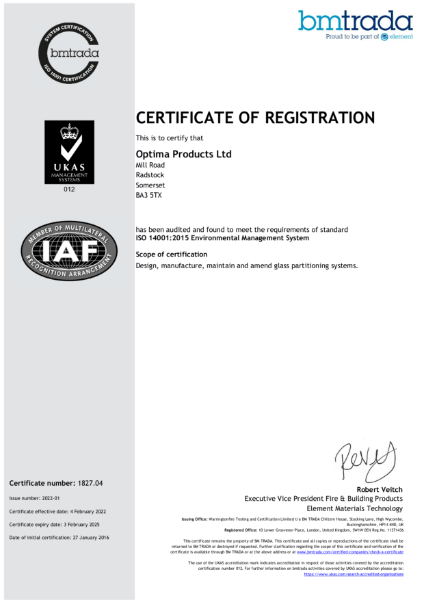

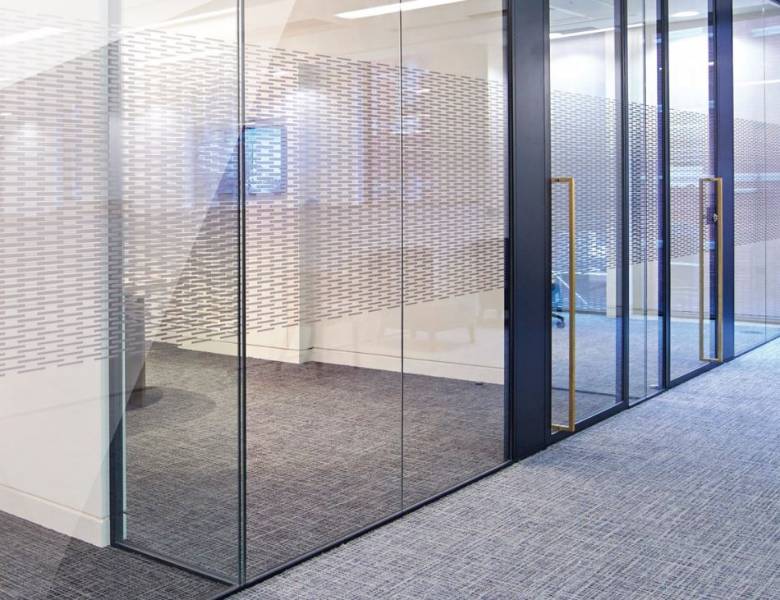

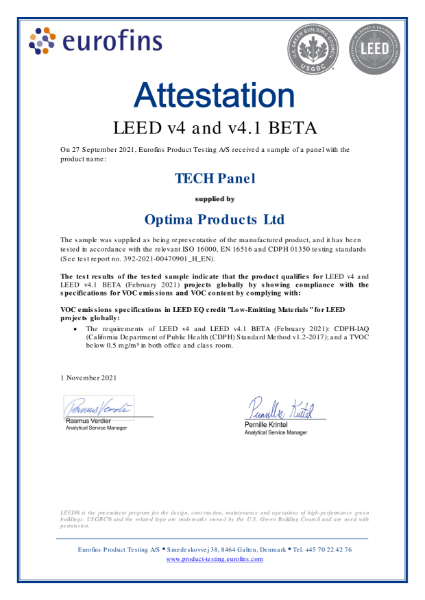

Third party certifications:

UKAS
Certificate type

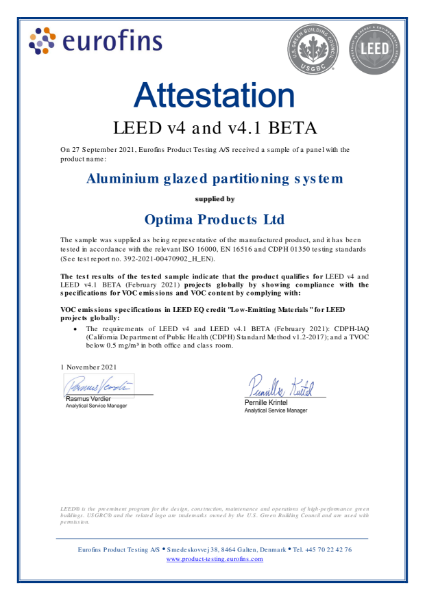

LEED (Canada)
Certificate type
BREEAM - Certification
Certificate type
BM Trada
Certificate type
SKA Rating
Certificate type
WELL Building Standard
Certificate type

Single or double glazed, relocatable partition system.

Jump to:

+44 (0)1494 492725 Website

Application

For use in a range of application areas including offices.

Description

Single or double glazed relocatable partition system.

Features and benefits:

Slimline mullion-free double glazed system.
Dry jointed and fully demountable.
Aluminium framework.
Fully integrates with Revolution 54 Plus single glazing and Optima 117 plus single glazing.
Numerous door options.

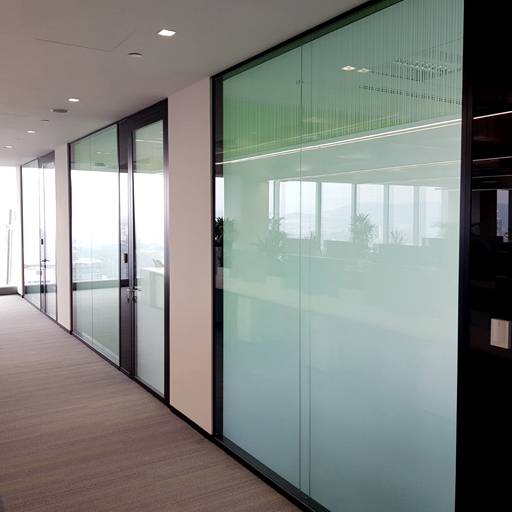

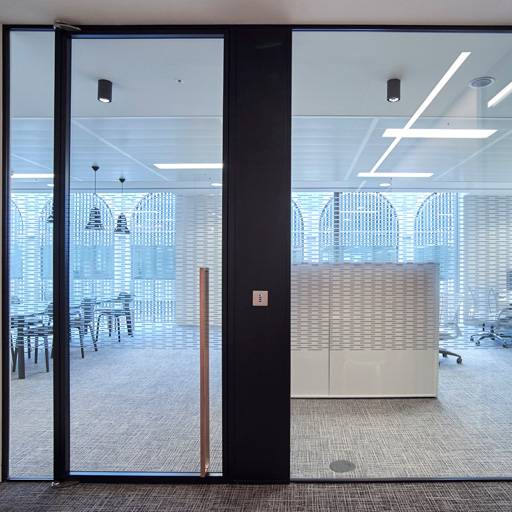

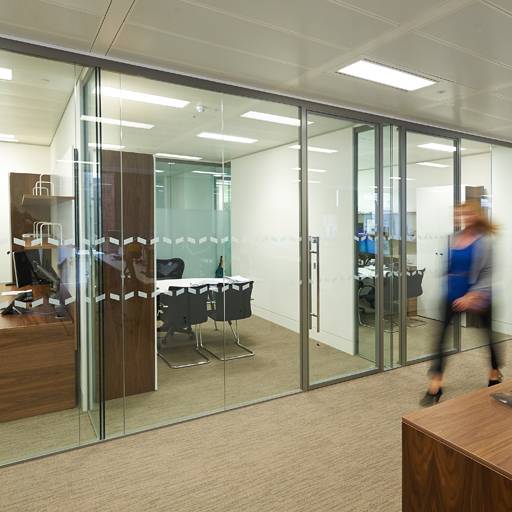

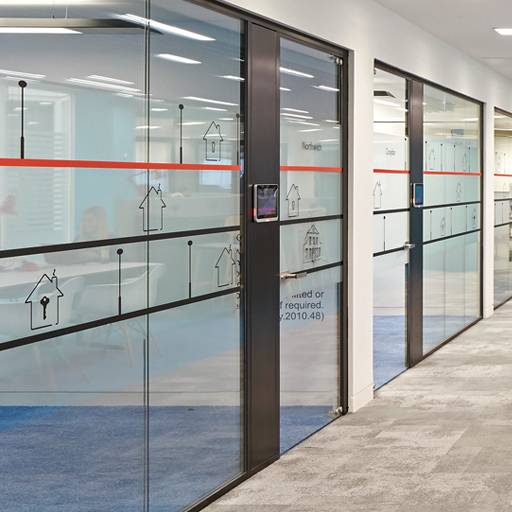

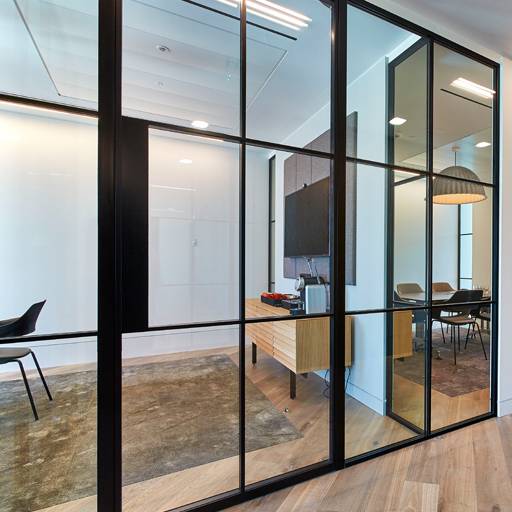

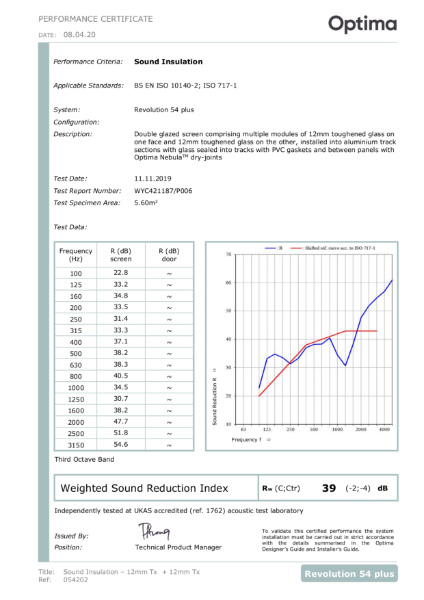

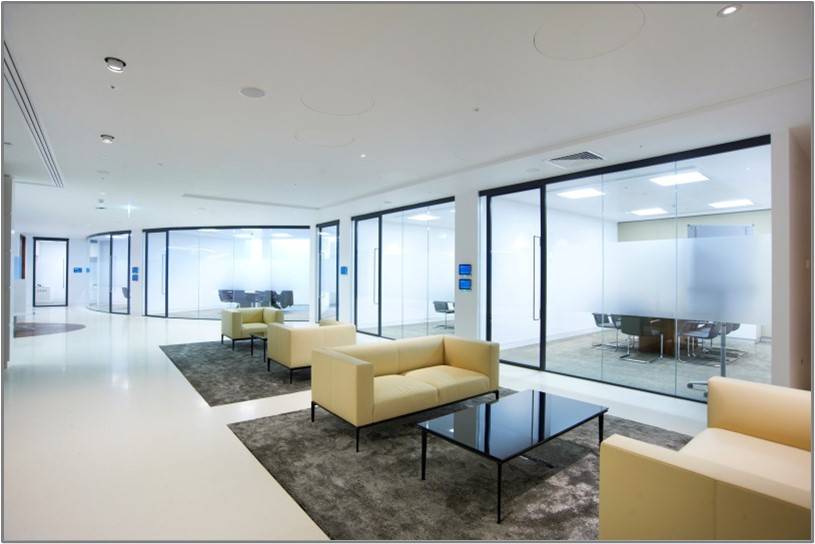

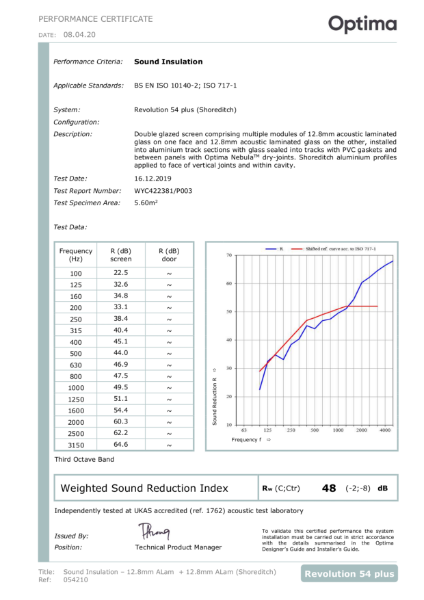

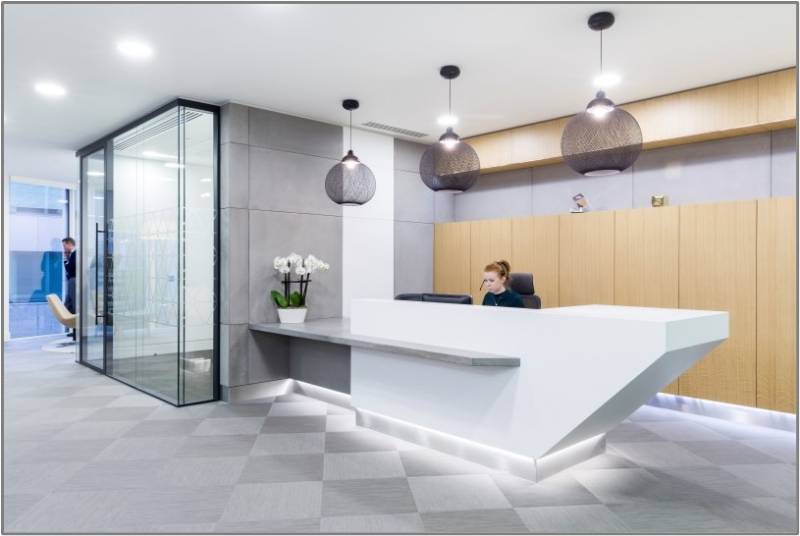

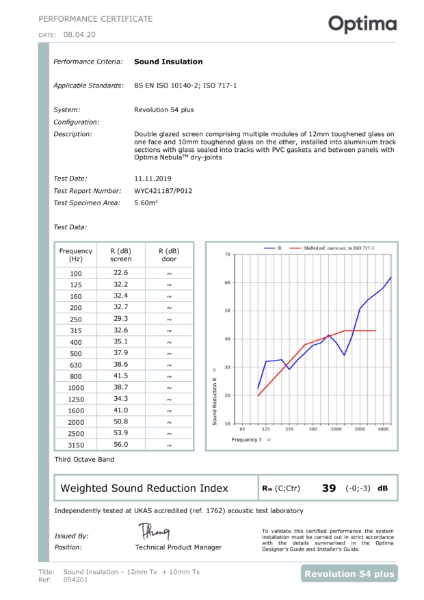

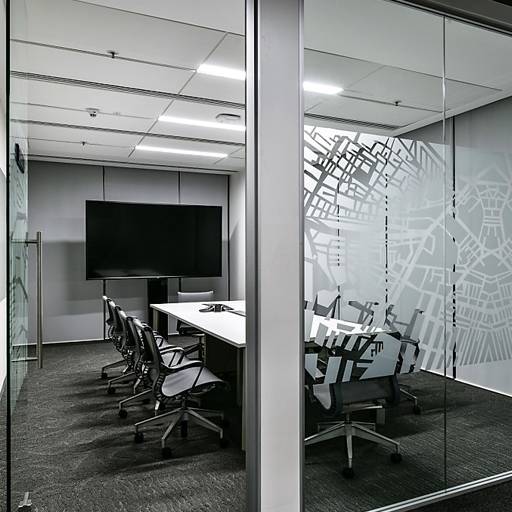

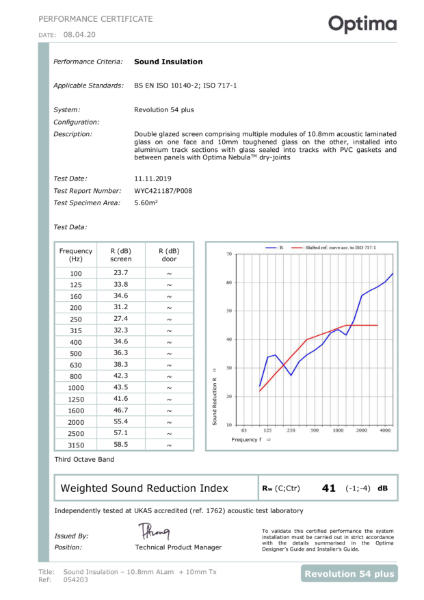

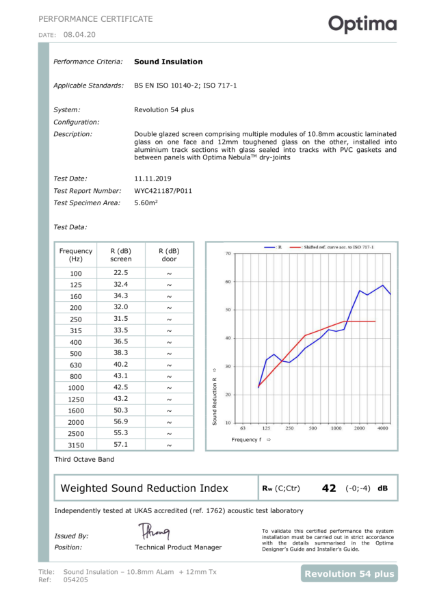

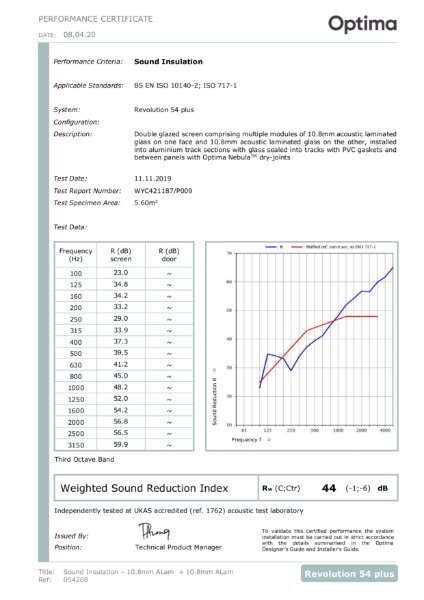

Maximum tested acoustic rating of Rw 46 dB using 2 layers of 12.8 mm acoustic laminated glass in multi-module screen.
Can accommodate up to ±40 mm deflection.

General information

Color	Black White Silver Other
Finish	Powder-coated Anodized Grained Polished
Material	Glass Aluminium
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	- Manufacturer guidance See manufacturer's warranty document.

Uniclass	Pr_25_71_57_60 Partition panelsPrimary
CAWS	K30/130 Relocatable partition system K30/10 Relocatable partition system

Product range	Revolution 54 Plus

Specification data - Partition panels

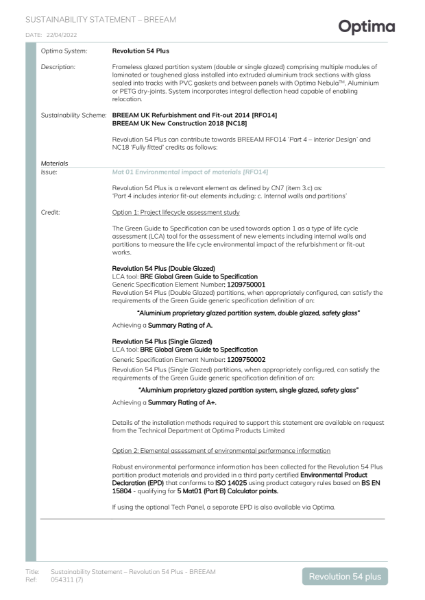

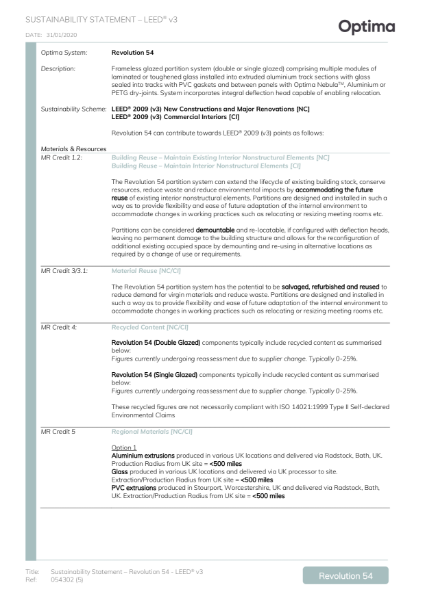

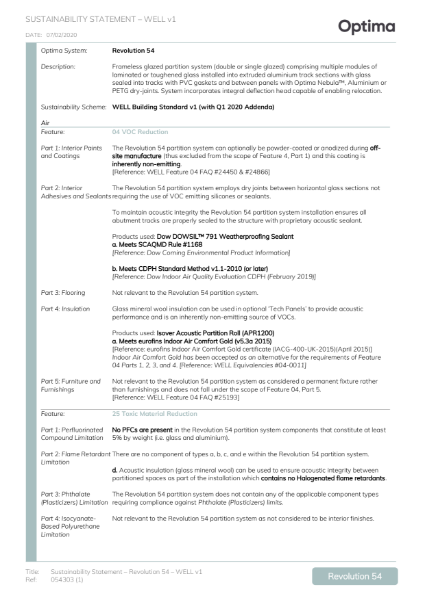

Third-party certification	System to conform to the requirements of BREEAM. Guidance for specification option: Satisfies a rating of A+ against Green Guide Ratings 2008 – Ref. Sustainability Statement 054303/ 054301. System to conform to the requirements of SKA. Guidance for specification option: Compliant with Good Practice Measure M09 – Ref. Sustainability Statement 054300.
Unit size	-
Thickness	- Manufacturer guidance Insert requirement or refer to Optima for details.
Partition height (nominal)	- Manufacturer guidance Insert floor to ceiling height. Maximum standard height 3000 mm.
Width (nominal)	- Manufacturer guidance Insert requirement or refer to Optima for details.
Deflection allowance (maximum)	-
Head	25 mm deep x 54 mm wide Offset glazed (no deflection). 25 mm deep x 54 mm wide Central glazed (no deflection). 50 mm deep x 54 mm wide Offset glazed (no deflection). 50 mm deep x 54 mm wide Central glazed (no deflection). 94 mm deep Offset glazed (±25 mm deflection – external). 94 mm deep Central glazed (±25 mm deflection – external). 140 mm deep Offset glazed (±40 mm deflection – external). 140 mm deep Central glazed (±40 mm deflection – external). 125 mm deep (±25 mm deflection – drywall). 140 mm deep (±40 mm deflection – drywall).
Floor	25 mm deep x 54 mm wide, Offset glazed. 25 mm deep x 54 mm wide, Central glazed. 50 mm deep x 54 mm wide, Offset glazed. 50 mm deep x 54 mm wide, Central glazed.
Verticals	25mm deep x 54 mm wide Offset glazed. 25mm deep x 54 mm wide Central glazed. 25mm deep x 54 mm wide Offset glazed with clip-on beads. 25mm deep x 54 mm wide Central glazed with clip-on beads. 50mm deep x 54 mm wide Offset glazed. 50mm deep x 54 mm wide Central glazed. 50mm deep x 54 mm wide Offset glazed with clip-on beads. 50mm deep x 54 mm wide Central glazed with clip-on beads. Door Frame Spacer for D450 Frame. ±25mm horizontal deflection Offset Glazed. Guidance for specification option: 94 mm deep x 58 mm wide. ±25mm horizontal deflection Central Glazed. Guidance for specification option: 94 mm deep x 58 mm wide.
Panel partition type	Relocatable.
Framing, fixing points and joints	Aluminium extruded track sections.
Glazed panels	-
Type	Single-glazed, 10 mm toughened glass
Additional features	Not required. Tapeable glazing bar to 100 mm generic drywall Offset glazed. Tapeable glazing bar to 100 mm generic drywall Central glazed. Tapeable glazing bar to 122 mm generic drywall Offset glazed. Tapeable glazing bar to 122 mm generic drywall Central glazed.
Door arrangement	-
Type	AXILE Clarity frameless single glazed leaf on offset Quad pivots. Guidance for specification option: Lab Tested to 32 dB (R_w) with suitable threshold seal - See Performance Certificate 900185. AXILE Clarity frameless single glazed leaf on lift-off hinges. Guidance for specification option: Lab Tested to 32dB (R_w) with drop seal – See Performance Certificate 900253. EDGE Symmetry single glazed leaf on offset pivots/hinges. Guidance for specification option: Lab Tested to 35dB (R_w) – See Performance Certificate 900254. If door leaf needs to incorporate Shoreditch Edition® features to complement partition, insert requirements. EDGE Symmetry double glazed leaf on offset pivots/hinges. Guidance for specification option: Lab Tested to 41dB (R_w) – See Performance Certificate 900256. If door leaf needs to incorporate Shoreditch Edition® features to complement partition, insert requirements. EDGE Affinity single glazed leaf on offset pivots/hinges. Guidance for specification option: Lab Tested to 39dB (R_w) – See Performance Certificate 900257. EDGE Affinity double glazed leaf on offset pivots/hinges. Guidance for specification option: Lab Tested to 42dB (R_w) – See Performance Certificate 900258. Timber 44 mm leaf on offset pivots/hinges. Guidance for specification option: Lab Tested up to 31dB (R_w) – See Performance Certificate 900187. Timber 54 mm rebated leaf on offset pivots/hinges. Guidance for specification option: Lab Tested up to 33dB (R_w) – See Performance Certificates 900188 & 900195.
Door frames	Integral Microflush D450 aluminium door frame with 50 mm face.
Trims	Not required. Shoreditch Edition® as detailed in the Optima Shoreditch Edition® Designer’s Guide. Guidance for specification option: Insert requirements.
Hardware	- Manufacturer guidance To architect’s choice, from Optima standard ironmongery suite, insert requirements.

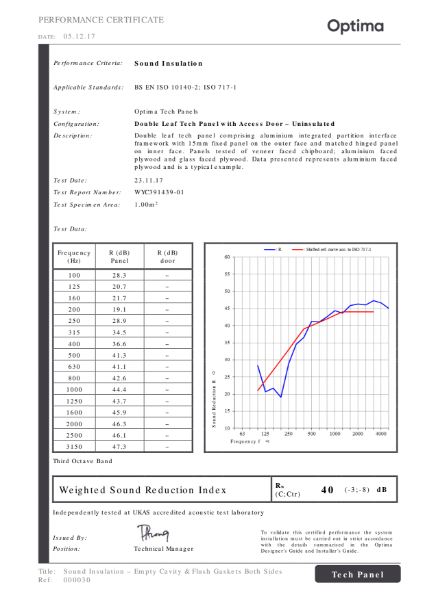

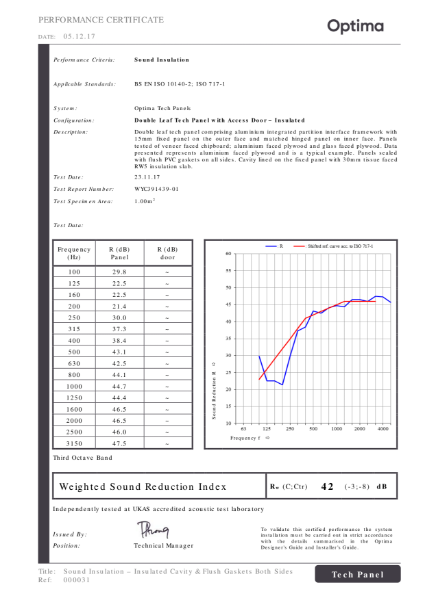

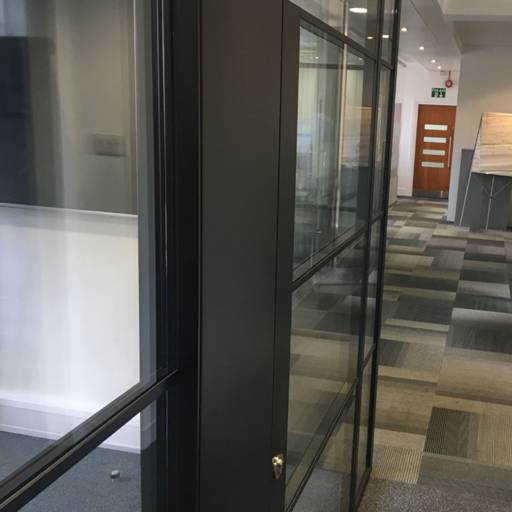

Cable management and outlets	Tech Panel: 100 mm (3D) Metal faced with hinged access door (colour to match rest of system). Tech Panel: 100 mm (3D) Timber with hinged access door. Guidance for specification option: Insert veneer surface finish. Tech Panel: 100 mm (3D) Back-painted glass with hinged access door. Guidance for specification option: Insert back-paint colour. Tech Panel: Back-painted glass with mullion interface to screen. Guidance for specification option: Insert back-paint colour. Tech Panel: Back-painted glass with Nebula interface to screen. Guidance for specification option: Insert back-paint colour. Tech Panel: 54 mm (Flush) Metal faced with hinged access door (colour to match rest of system). Tech Panel: 54 mm (Flush) Timber with hinged access door. Guidance for specification option: Insert veneer surface finish. Tech Panel: 54 mm (Flush) Back-painted glass with hinged access door. Guidance for specification option: Insert back-paint colour. Access door locking: Not applicable. Access door locking: Magnetic latch. Access door locking: Secure near-field electronic latch.

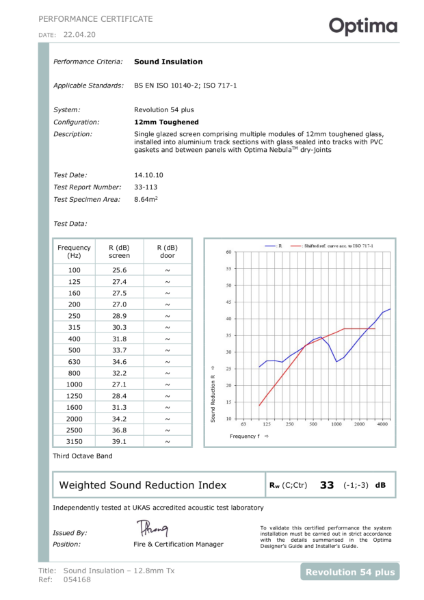

Sound insulation	32 dB (Rw).
Manifestation	- Manufacturer guidance Insert requirements. To architects’ choice and in accordance with the requirements of Approved Document K.
Junctions/ Corners	SA Aluminium in-line joint. SA Aluminium 3-way joint. SA Aluminium 90° corner joint. NebulaTM in-line joint. NebulaTM 3-way joint. Mitred & Taped 90° corner joint. Ghost in-line joint. Ghost 3-way joint. Ghost 90° corner joint. Taped in-line joint. Taped 3-way joint. Taped 90° corner joint. Taped 3-way to Aluminium In-Line Joint. Show more Manufacturer guidance Glass-to-glass joints.
Strength grade	Uncongested Office Space – 0.36 kN/m line load. Congested Office Space – 0.74 kN/m line load. Public Access Space – 0.74 kN/m line load. Public Access Space – 1.50 kN/m line load.
Framing colour	Anodized, 25 microns. Guidance for specification option: Refer to manufacturer for advice. Grained, Brightened and Protective Anodized. Guidance for specification option: Refer to manufacturer for advice. Polished, Brightened and Protective Anodized. Guidance for specification option: Refer to manufacturer for advice. Powder-coated, RAL 9005 Black. Guidance for specification option: 50 microns (nominal), 30% gloss. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns (nominal), 30% gloss. Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns (nominal), 30% gloss. Powder-coated, non-standard colour. Guidance for specification option: Refer to manufacturer for advice. Show more
Accessories/ Other requirements	- Manufacturer guidance Refer to manufacturer for advice and insert special requirements.

Sustainability data

Contains Red List materials	Yes
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	89.7 kg CO₂ eq/m² Self declared
