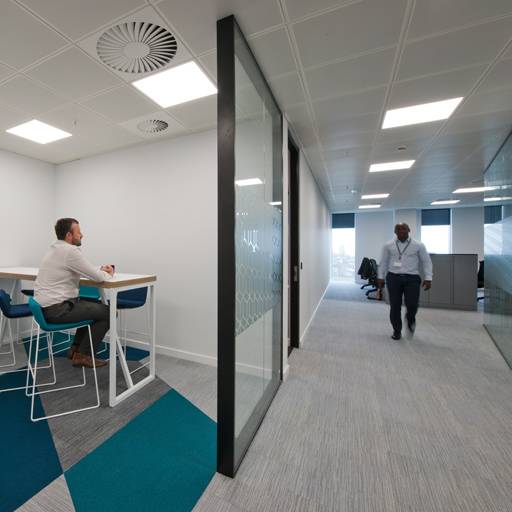

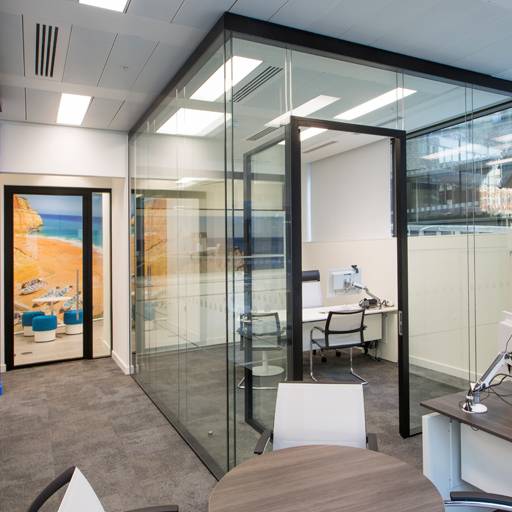

Revolution 100 single glazing is a stunning dry jointed system with offset glazing and discreet glass to glass joints between the glazed panels.
Dry-jointed single-glazed partition system which is offset, with discreet glass-to-glass joints between the glazed panels. This 100 mm-wide system easily converts from double to single glazing or vice versa, maintaining the same visual appearance across a work space whilst addressing varying acoustic requirements.
Color | RAL 9006RAL: 9006 |
Material | Aluminium / Glass |
Uniclass 2015 |
Product Reference | Revolution 100 Single Glazed Partition |
StrengthGrade | - |
Duty rating (to BS 5234-2) | Congested office space – 0.74 kN/m line loadPublic access space – 0.74 kN/m line loadPublic access space – 1.50 kN/m line loadUncongested office space – 0.36 kN/m line load |
Maximum allowable deflection under the line load | L/65 or 50 mmWhichever is least. L/120 or 25 mmWhichever is least. |
Partition height | Insert floor to ceiling requirement, available up to 3000 mm. |
Finish/ Colour | Anodized25 microns thickness. Grained, brightened and protective anodizedPolished, brightened and protective anodizedPowder-coated, RALInsert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White50 microns, 30% gloss (nominal). |
Glazing | - |
Type | 10 mm toughened glass33 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 10.8 mm acoustic laminate glass35 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 10.8 mm laminate glass35 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 12 mm toughened glass34 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 12.8 mm acoustic laminate glass38 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 12.8 mm laminate glass36 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 14.8 mm acoustic laminate glass39 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 15 mm toughened glass35 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 16.8 mm acoustic laminate glass40 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. |
Manifestation | Insert requirements. |
Junctions/ corners | 100033-01Nebula™ dry butt-joint. 100033-02SA aluminium dry butt-joint. 100033-03Ghost dry butt-joint. 100033-04Taped dry butt-joint. 100033-0590° mitred taped dry corner joint. 100033-06SA aluminium dry corner joint. 100033-07Ghost dry corner joint. 100033-0890° taped dry corner joint. 100034-01Taped three-way to plain glass. 100034-02Taped three-way to Nebula™ joint. 100034-03Taped three-way to SA aluminium joint. 100034-04SA aluminium three-way joint. 100034-05Ghost three-way joint. |
Partition abutments | - |
Head detail | 100004-0390 mm deep (±25 mm deflection – internal) for up to 12.8 mm glass. 100004-0490 mm deep (±25 mm deflection – internal) for up to 16.8 mm glass. 100005-0394 mm deep (±25 mm deflection – external) for up to 12.8 mm glass. 100005-0494 mm deep (±25 mm deflection – external) for up to 16.8 mm glass. 100006-03135 mm deep (±40 mm deflection – internal) for up to 12.8 mm glass. 100006-04135 mm deep (±40 mm deflection – internal) for up to 16.8 mm glass. 100007-03140 mm deep (±40 mm deflection – external) for up to 12.8 mm glass. 100007-04140 mm deep (±40 mm deflection – external) for up to 16.8 mm glass. 100002-0325 mm deep (no deflection) for up to 12.8 mm glass. 100003-0350 mm deep (no deflection) for up to 12.8 mm glass. 100002-0425 mm deep (no deflection) for up to 16.8 mm glass. 100003-0450 mm deep (no deflection) for up to 16.8 mm glass. |
Floor detail | 100008-0325 mm deep for up to 12.8 mm glass. 100008-0425 mm deep for up to 16.8 mm glass. 100009-0350 mm deep for up to 12.8 mm glass. 100009-0450 mm deep for up to 16.8 mm glass. |
Wall detail | 100016-01door frame spacer for D660 frame. 100016-02door frame spacer for D665 frame. 100014-0350 mm deep for up to 12.8mm glass. 100011-0325 mm deep with clip-on bead for up to 12.8 mm glass. 100012-0325 mm deep for up to 12.8 mm glass. 100013-0350 mm deep with clip-on bead for up to 12.8 mm glass. 100011-0425 mm deep with clip-on bead for up to 16.8 mm glass. 100012-0425 mm deep for up to 16.8 mm glass. 100013-0450 mm deep with clip-on bead for up to 16.8 mm glass. 100014-0450 mm deep for up to 16.8 mm glass. |
Transom detail | 100010-0350 mm deep for up to 12.8 mm glass. 100010-0450 mm deep for up to 16.8 mm glass. |
Mullion detail | 100015-0350 mm wide for up to 12.8 mm glass. 100015-04mm wide for up to 16.8 mm glass. |
Doorset | - |
Leaf | AXILE Clarity frameless single-glazed leaf on lift-off hinges32 dB (Rw). AXILE Clarity frameless single-glazed leaf on offset quad pivots32 dB (Rw). EDGE Affinity double-glazed leaf on offset pivots/ hinges42 dB (Rw). EDGE Affinity single-glazed leaf on offset pivots/ hinges39 dB (Rw). EDGE Flush double-glazed leaf on offset pivots37 dB (Rw). EDGE Symmetry double-glazed leaf on offset pivots/ hinges41 dB (Rw). EDGE Symmetry single-glazed leaf on offset pivots/ hinges35 dB (Rw). Timber 44 mm leaf on offset pivots/ hinges31 dB (Rw). Timber 54 mm rebated leaf on offset pivots/ hinges33 dB (Rw). |
Manifestation | Insert requirements. |
Ironmongery | Insert requirements from Optima standard ironmongery suite. |
Locking | Insert requirements; contact manufacturer for information. |
Cable management/ Outlets | - |
Tech panels | 100021-01Metal faced with hinged access door (colour to match rest of system). 100021-02Timber with hinged access door (insert veneer surface finish). 100021-03Back-painted glass with hinged access door (insert back-paint colour). |
Access door locking | Not applicableMagnetic latchSecure near-field electronic latch |
Sustainability requirements | Not requiredBREEAM 'A' ratingSKA Good Practice Measure M09 compliant |
Accessories | Insert requirements; contact manufacturer for more information. |
Standard product features | Framing: Aluminium extruded track sections. |
Product Options | Glazing: Glazing is full height, dry jointed and dry glazed. Doorset: Integral Microflush D665 aluminium door frame with 65 mm face and leaf set. |
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | Revit 2017 | 1 | 2.0 |
