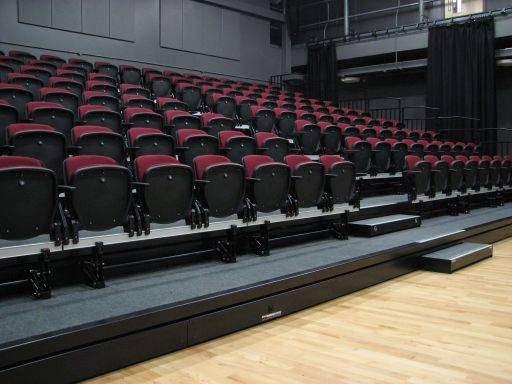

Retractable Seating With Integra Chairs And End Aisles

Application

Designed for use in schools, colleges, sports and multi-purpose halls.

Description

Retractable seating mounted onto a platform.


Integra Chair:

The rail based design allows variable seat spacing’s to be achieved. The ergonomic polymer mouldings can be upgraded with the addition of upholstered pads, these can easily and economically be replaced. Integra is certified to strength test level 4 (severe) allowing it to perform in the most demanding of environments. Integra is designed for use with our high specification TP retractable structure.


Seatway TP Platform:

The retractable platform system has been developed to feature a welded design leading to an Inherently stiffer structure. The platforms accommodate any of the manufacturer's bench and chair range leading to a fully integrated solution. Manufactured in the UK and certified to EN 1090.


Features and benefits:

- Seating:

  • Rail mounting allows equal spacing of seat modules, justification of rows and replacement of complete seat modules in seconds.
  •  Available with or without auto tip armrests.
  •  Upholstered pads can be replaced quickly and economically.
  •  Spring activated tipping with a ‘soft action’ fully enclosed stop mechanism (safety for fingers and clothing).
  •  Designed for use on retractable platforms with at least 244 mm row rise and 838 mm row depth.


- Platform:

  • Distinctive fully welded platform design.
  • Adjustable cantilevers on every row to compensate for any floor deviances.
  • Parallel guidance system for straight line operation.
  • Stiff and dynamically correct under-structure with unique space frame construction methods.
  • Row to row, parallel and vertical, column interlock.
  • Non marking polyurethane wheels.

General information

Color

Black

RAL 9004. Seat/ back.

Other

Fabric colour bespoke to project requirement.

Finish

Powder coated

Material

Steel

Fabric

Polymer

WarrantyDescription

Ten year

Ten year warranty, condition based.

Size

Bespoke based on project requirement. Seat centres from 460 mm.

-

Uniclass

Pr_40_30_29_72 Retractable seatsPrimary

CAWS

N10/172 Retractable/ demountable seating system

Specification data - Retractable seats Enhanced data

Form

TP-F - Wall and floor-fixed.

TP-M - Mobile unit.

TP-R - Wall-fixed, recessed.

TP-T - Travelling system.

Telescopic platform

-

Unit width

Consult manufacturer and insert requirement.

-

Number of rows

Consult manufacturer and insert requirement.

-

Row depth

Custom row depths are available, contact manufacturer for details.

850 mm.

900 mm.

915 mm.

1800 mm.

Double depth.

Row rise

Custom row rises are available, contact manufacturer for details.

244 mm.

No arms.

245 mm.

Arms/ scribe.

260 mm.

280 mm.

300 mm.

320 mm.

Seat spacing (lateral)

From 460 mm.

460 mm.

490 mm with arms.

Seats and backs

-

Material

Polymer mouldings and fabric from the Camira Xtreme range.

Customers own choice of fabric can also be specified.

Colour

Fabric available in a range of colours, consult manufacturer.

-

Frames

-

Material

Steel.

Finish

Powder coated.

Colour

Black.

Integral accessories

Not required.

Seat numbers and row letters.

Auto-tip polymer or upholstered armrests.

Cup holders.

Integral folding Scribe writing tablet.

Gas struts to dampen the folding action.

Coloured polymer mouldings.

Front, Front, side and rear safety rails.

Integral power.

Fascia panel systems.

Aisle lighting.

Flex rows for wheelchair spaces.

Electronic partial opening feature.

Fire performance

The fabric and foam comply with BS 5852:1990 (Source 0, 1 and 5). Other codes or European Standards can be satisfied as required. Applies to plastic, fabric and foam.

BS 5852 Ignition Source 5.

Standards

To EN 12727:2000, BS 5852:1990, BS 7176:1995, BS EN 1021 - 1 & 2:1994, BS EN 13200-5.

Centres

460 mm.

No arms.

490 mm.

Arms.

540 mm.

Scribe.

Height

420 mm.

Upholstered/plastic benches.

460 mm.

Gallery PC & arts PC.

Width

Aisle width.

1100 mm.

Environmental information

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

1

1.3
Download now from NBS National BIM Library
