Retention Roof - Extensive

Name: Retention Roof - Extensive
Brand: Optigreen Ltd
SKU: rZ9fTUrt2B1L8TH7ohKezy

Verified by manufacturer 2 months ago

Flow Control Extensive

Optigreen Ltd

Retention roofs for intelligent rainwater management.

Jump to:

+44 (0)203 5899400 Website

Application

Retention Roof Meander FKM 30:

Greatly reduced drainage peaks.
For extensive green roof structures.

Retention Roof Meander FKM 60:

Greatly reduced drainage peaks.
Long-term water storage (meander 60).
For extensive and semi-intensive green roof structures.

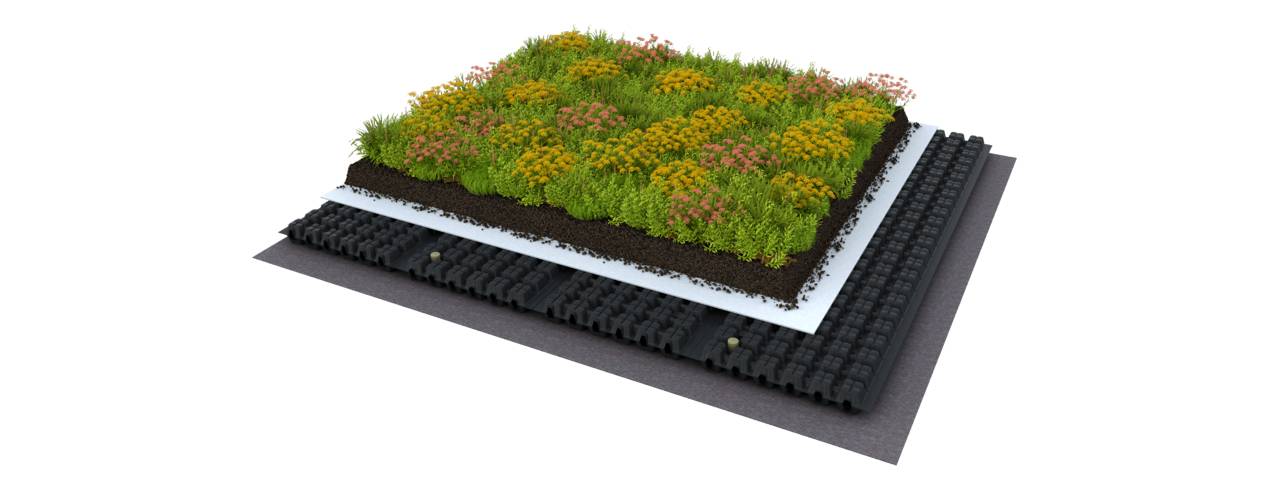

Retention Roof Flow Control Extensive:

Very low outflow rate, thanks to a specifically adjusted flow control unit.
High retention volume in the WRB 80F approx. 75 l/m².
Lightweight thanks to hollow-body drainage unit (Water Retention Box WRB).
High evaporation capacity thanks to integrated capillary system.
Basic prerequisite: 0° roof.
Suitable for inverted roofs.

Description

With the retention roof systems, green roofs and intelligent rainwater management work together effectively and sustainably. For a better microclimate and in line with the concept of the sponge city. Optigrün offer effective solutions for delaying runoff and complying with discharge restrictions or throttled runoff from the green roof.

Features and benefits:

Retention Roof Meander FKM 30:

Greatly reduced drainage peaks.
For extensive green roof structures.

Retention Roof Meander FKM 60:

Greatly reduced drainage peaks.
Long-term water storage (meander 60).
For extensive and semi-intensive green roof structures.

Retention Roof Flow Control Extensive:

Very low outflow rate, thanks to a specifically adjusted flow control unit.
High retention volume in the WRB 80F approx. 75 l/m².
Lightweight thanks to hollow-body drainage unit (Water Retention Box WRB).
High evaporation capacity thanks to integrated capillary system.
Basic prerequisite: 0° roof.
Suitable for inverted roofs.

General information

Color	Green Brown
Finish	Natural
Material	Vegetation Acrylonitrile butadiene styrene (ABS) Plastic
Shape	Square Rectangle Other
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Ss_45_40_47_28 Extensive green roof systemsPrimary Ss_45_40_47_75 Semi-intensive green roof systems
CAWS	Q37/120 Simple intensive green roof Q37/130 Extensive green roof

Specification data - Extensive green roof systems

Protection	-
Protection layer	Protection and storage fleece RMS 300. Guidance for specification option: Strength class: GRK 2. Thickness: approx. 3.6 mm. Weight: 300 g/m². Water storage: approx. 2 l/m². Roll: 100 m². Roll width: 2.0 m. Sound reduction ∆LW: 35 dB.
Moisture control	-
Drainage layer	Water retention box WRB 80F. Guidance for specification option: Nominal thickness: 80 mm. Weight: approx. 3.6 kg/m². Retention volume: approx. 75 l/m². Interstitial volume: approx. 90.0 vol.%. Maximum flow capacity: approx. 2.0 l/m×s (with 2% slope). Compression strength: approx. 100 kN/m² as per EN ISO 25619-2.
Filter membrane	Suction and capillary fleece RMS 500K. Guidance for specification option: Strength class: GRK 4. Thickness: approx. 3.6 mm. Weight: 500 g/m². Water storage: approx. 4 l/m². Roll: 50 m². Roll width: 2.0 m.
Drainage ancillaries	Capillary columns and flow control unit. Guidance for specification option: Capillary columns: ensures the transport of the accumulated rainwater to the substrate level. Flow control unit: retention control with defined perforations. Allows for delayed water discharge.
Planting systems	-
Planting medium	Extensive substrate E (60 mm).
Planting requirements	Pre-cultivated sedum mat with decomposable carrier. Plug planting. Wildflower-based vegetation mats.
Fire breaks	- Manufacturer guidance Consult manufacturer for details and insert requirements or omit.
Edge restraints	- Manufacturer guidance Consult manufacturer and insert requirements. Erosion protection plates ESP in pebble boarders. Vegetation mats on green spaces.

Weight	100 kg/m² (1.0 kN/m²).
System depth	From 140 mm. Manufacturer guidance Build-up depth.
Roof pitch	0°.
Discharge	- Manufacturer guidance Project specific settings possible. Consult manufacturer for details and insert requirements.
System accessories	- Manufacturer guidance System add-ons available. Consult manufacturer for details and insert requirements.

Sustainability data

Country of material origin	Europe
Country of product manufacture	Europe
Material	Vegetation Acrylonitrile butadiene styrene (ABS) Plastic
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance RMS 300 - 100% recycled plastic fibre (PP/PES/acrylic) FKM 30 - 100% recycled HDPE

Literature

Optigrün Technical Brochure

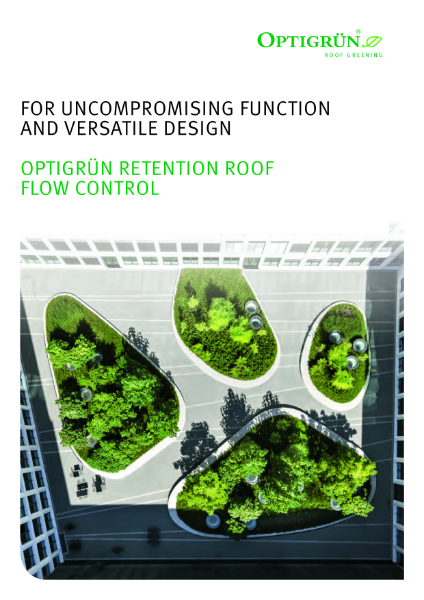

Optigrün Retention Roof - Flow Control
