Retaining Wall System
Verified by manufacturer 2 months ago
CHAS
Certificate type
ISO 9001 Quality Management
Certificate type
PEFC
Certificate type
Hardwood timber retaining wall system.
Application
- Suitable for exterior use
- Ideal for creating stunning terraces, embankments, and landscape features
Description
The Hardwood Retaining Wall System provides a quick and effective way of building retaining walls up to 1800 mm high and sometimes higher.
Manufactured in Naturally Very Durable Hardwood to provide great strength and an extremely long life expectancy, this product weathers gracefully, with no routine treatment or maintenance required.
Features and benefits:
- Designed and manufactured in the UK.
- Can be customised to meet specific project requirements.
- Ideal for raised planting areas in any setting
- Ideal for creating stunning terraces, embankments, and landscape features
- Straight, corner and circular designs are available
- Straight and curved copings are available at any radius.
- The Retaining Wall System has an Independent Design Certification.
- Light units can also be incorporated into most retaining wall components.
- Available in FSC Certified timber.
General information
Color | Other Guidance for specification option: Natural. |
Finish | Natural |
Material | Wood Timber |
Shape | Rectangle Circle Other Guidance for specification option: Fully customisable for shape and size |
Length | 600 mm 900 mm 1500 mm 1800 mm 2100 mm |
Width | 140 mm Bespoke |
Height | Bespoke |
Warranty description | Other Guidance for specification option: See https://woodscape.co.uk/warranty/ for details. |
Uniclass | |
CAWS | D41/510 Timber retaining wall systems |
Specification data - Timber sleepers
Dimensions | |
Overall length | Custom.Guidance for specification option: Custom overall lengths available on request; consult manufacturer and insert requirement. |
Cross section | 140 x 65 mm.Guidance for specification option: Straight component: Seven components make approximately one linear metre. Also suitable for constructing radii of 3000 mm or greater. Custom.Guidance for specification option: Custom cross sections available on request; consult manufacturer and insert requirement. |
Special shapes | |

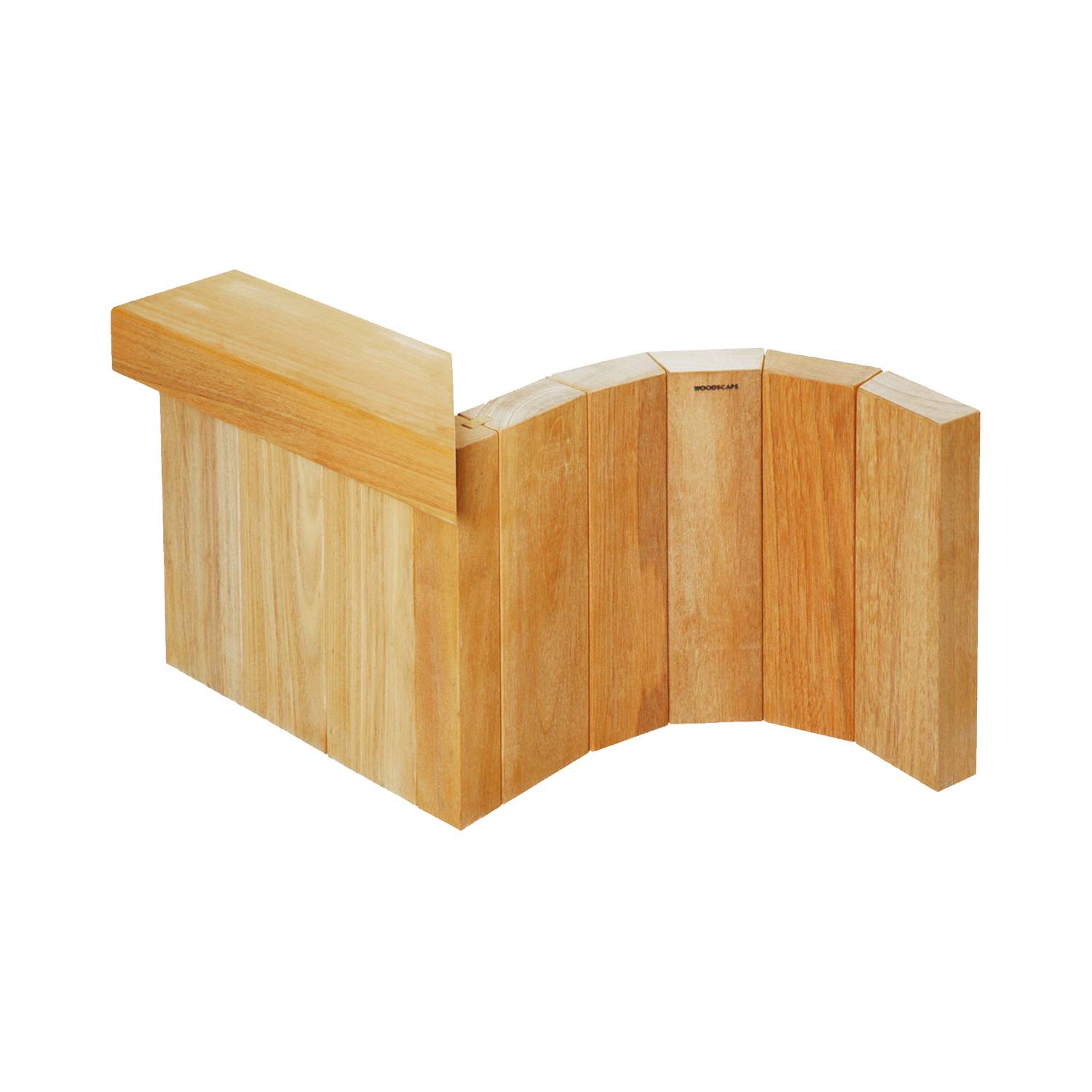

Type | Corner.Guidance for specification option: 65 x 65 mm corner section grooved on two adjacent faces. Special angle corner components are also available. End.Guidance for specification option: 140 x 65 mm section grooved on one face only. Radius component, 500 mm.Guidance for specification option: 22 components make a full circle with a 1000 mm outside diameter. Radius component, 1000 mm.Guidance for specification option: 44 components make a full circle with a 2000 mm outside diameter. Circular.Custom. |
Dimensions | Manufacturer guidanceContact manufacture and insert requirements. |
Preservative treatment | Manufacturer guidanceAvailable on request. Consult manufacturer and insert requirements. |
Coping type | Not required. Straight. Curved. Manufacturer guidanceStandard dimensions are 190 x 90 mm and 140 x 65 mm, available at any radius. |
Joint | Loose tongue and groove. |
Accessories | Not required. Lighting. Stainless steel ‘trickstoppa’. Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceDepends on timber species used. Consult manufacturer for more details. |
Country of product manufacture | United Kingdom |
Material | Wood Timber |
Manufacturing plant location | |
Recyclability | Timber is recyclable |
Expected Life | Manufacturer guidanceDepends on material choices; consult manufacturer for more details and insert requirements. |
Third party certifications
CHAS
Contractors Health & Safety Assessment Scheme (CHAS)
ISO 9001 Quality Management
ISO 9001:2015
PEFC
PEFC Chain of Custody (CoC) Certified Supplier
Literature

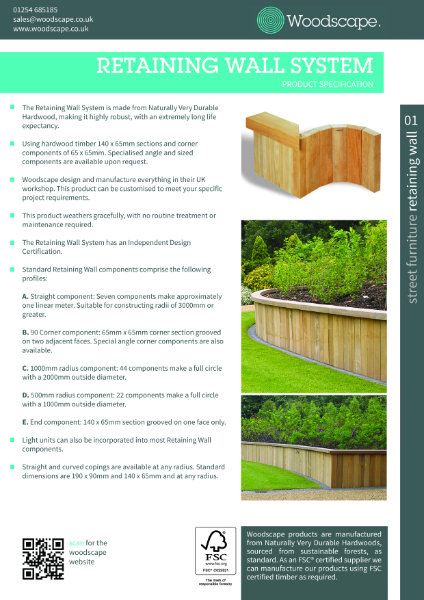

Retaining Wall System
Case studies

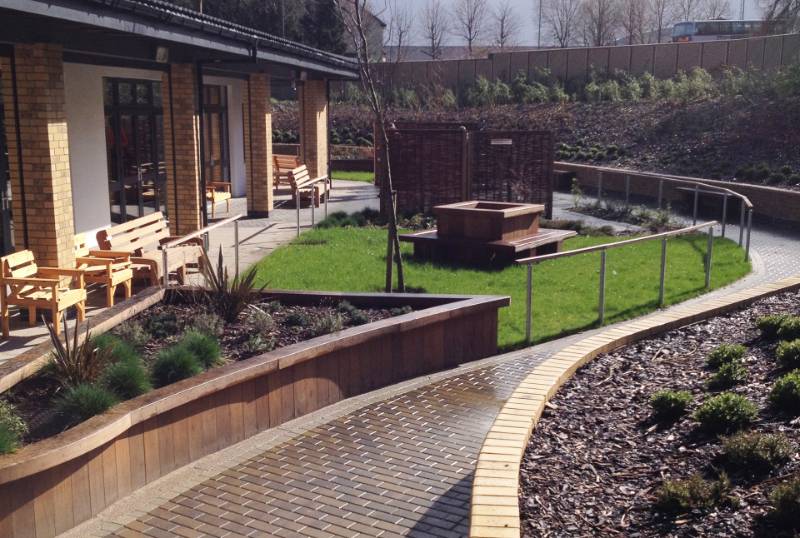

Castlemilk, Glasgow
