Resurgence Flush Sash

Resurgence Flush Sash

Liniar Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

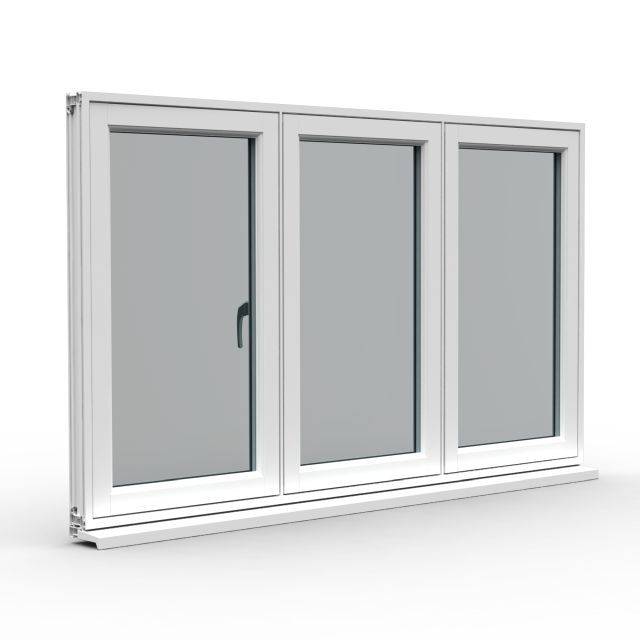

Unplasticized polyvinyl chloride (PVC-U) 80 mm flush sash window with the appearance of a traditional timber window and all the benefits of modern energy efficiency.

Jump to:
+44 (0)1332 883900 www.liniar.co.uk

Description

Unplasticized polyvinyl chloride (PVC-U) 80 mm flush sash window featuring two co-extruded bubble gaskets. The external seal is discreetly mounted on the double rebated sash out of sight. Resurgence features fully foiled glazing areas to both outer frame and transoms, delivering an authentic appearance even when the window is opened.

Features and benefits:

  • 70 mm sash with 80 mm frame.
  • Sculptured suite.
  • Welded or mechanically jointed options.
  • Double rebated weather seal.
  • Thermal transmittance (U-value) as low as 0.8 W/m²k.
  • Fully foiled outer frame and transoms for authenticity.

Accreditations:

  • PAS24.
  • Secured by Design.
  • BS EN 12608.
  • BS EN 6375.

General information

Size

As drawing

Insert reference number, available up to 1250 x 1325 mm.

As schedule

Insert reference number.

Material

Unplasticized polyvinyl chloride (PVC-U)

Uniclass 2015

Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary

CAWS

L10/30 PVC-U windows

L10/350 PVC-U windows

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units

Product Reference

Resurgence Flush Sash

Size

As drawing

Insert reference number, available up to 1250 x 1325 mm.

As schedule

Insert reference number.

Glazing

Double

U-value of 1.2 W/m²K achievable, consult manufacturer for details.

Triple

U-value of 0.8 W/m²K achievable, consult manufacturer for details.

Colour

7016 Grey

7038 Agate Grey

Anteak oak

Black

Cream

Rosewood

White

White foil

Special order

Insert requirement.

Sill

85 mm

150 mm

165 mm

180 mm

Steel reinforcement

Not required

Required

Glazing flipper

Not required

Required

Creates a thermal barrier and additional gasket for even higher energy efficiency.

Standard product features

Material:

Unplasticized polyvinyl chloride (PVC-U).

Frame depth:

  • Small frame and sash: 104 mm.
  • Transom and sash: 170 mm.
  • Small frame: 57 mm.
  • Sill: 30 mm.

Literature

Third party certifications

  • Accredited
