Resin Flooring System Resuflor Topcoat

Verified by manufacturer 2 months ago

Sherwin-Williams Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

A high build epoxy resin system for application as a heavy duty floor coating at a thickness of around 500 microns.

Jump to:
+44 (0)1204 521771 Website

Application

Epoxy resin flooring system suitable for:

  • Food processing and beverage areas.
  • Chemical plant rooms.
  • Engineering workshops.
  • Automotive and aviation areas.
  • Factory units.
  • Warehouses.
  • Suitable for all demarcation and walkways.

Description

A high build epoxy resin system for application as a heavy-duty floor coating at a thickness of approximately 500 micrometres. The finish provides a smooth gloss coloured finish which is suitable for all areas of industry where a hard wearing and chemically resistant floor coating is required. Applied by roller, paint brush and squeegee, the system is low odour producing a tough, seamless and hygienic floor finish.


Features and benefits:

  • High build finish.
  • Solvent-free.
  • Hygienic and easily cleaned.
  • Good colour stability.
  • Excellent slip resistance with the inclusion of selected aggregates.
  • High gloss finish.
  • Available in a wide range of colours.

General information

Color

Black

Blue

Green

Grey

Red

Show more

Finish

Gloss

Guidance for specification option:

High gloss.

Smooth

Coated

Material

Epoxy resin

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/10 Resin flooring

M12/110 Resin flooring

Specification data - Resin flooring systems

Substrate

-

Testing

Moisture content to BS 8204.

Preparation

Preparation of existing substrates.

Guidance for specification option:

Substrates must be clean, sound, dry and free of surface laitance with a minimum strength of 25 N/mm². Mechanically prepare substrate to provide a surface texture that will function as a key for the resin. Remove all dust and debris. Repair significant mechancial damage, pitting and cracks.

Primer

Resuprime ST.

Resuseal WB Clear.

Resuprime MVT.

Guidance for specification option:

For use if the concrete substrate moisture levels are above 75% equilibrium relative humidity (ERH) or no damp proof membrane is present.

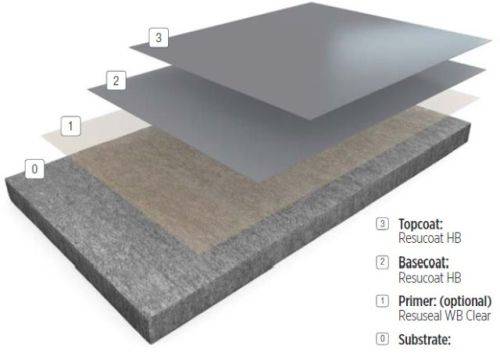

Resin flooring

Base coat: Resucoat HB.

Top coat: Resucoat HB.

Resin floor coatings.

High-build floor coatings.

Surface treatment

Floor surface coating resins.

Movement joints

-

Type

Resin flooring strip movement joints.

Execution

Workmanship.

Application of primers.

Applying surface finishes.

System thickness

0.5 mm.

Reaction to fire (to EN 13501-1)

Bfl-s1.

Curing time

12—16 hours.

Guidance for specification option:

Light traffic.

48—72 hours.

Guidance for specification option:

Designed traffic.

≤7 days.

Guidance for specification option:

Full cure traffic.

Abrasion resistance

To ASTM D4060-14, 134.7 mg.

Guidance for specification option:

Loss/ 1000 cycles.

CompressiveStrength

To BS EN ISO 604, 9.6 MPa.

Tensile strength (to EN ISO 527)

To BS EN ISO 527-2, 7.5 MPa.

Flexural strength

To BS EN 13892-8, 3.2 N/mm².

Bond strength

To BS EN 13892, >3 N/mm².

Guidance for specification option:

Substrate failure.

Temperature resistance

45°C.

Manufacturer guidance

Tolerant of temperatures up to:

Chemical resistance

Good.

UV stabilization

No.

Colour

Light Grey.

Dark Grey.

Red.

Blue.

Green.

Show more

Finish:

High gloss.

Performance

-

Manufacturer guidance

  • Slip resistance.
  • Durability.
  • Water and vapour resistance.

Testing

-

Manufacturer guidance

  • Testing slip resistance.
  • Testing bond strength.
  • Verification of performance.

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Literature

Resin flooring Resuflor Topcoat coating system

Resin flooring Resuflor Topcoat coating system

A guide to Sherwin-Williams Industrial Resin Flooring

A guide to Sherwin-Williams Industrial Resin Flooring

RAL Colour Card - Resuflor™, Resupen, Resutile™

RAL Colour Card - Resuflor™, Resupen, Resutile™

Case studies

Silverstone uses Resuflor HB for world-class visitor experience

Silverstone uses Resuflor HB for world-class visitor experience

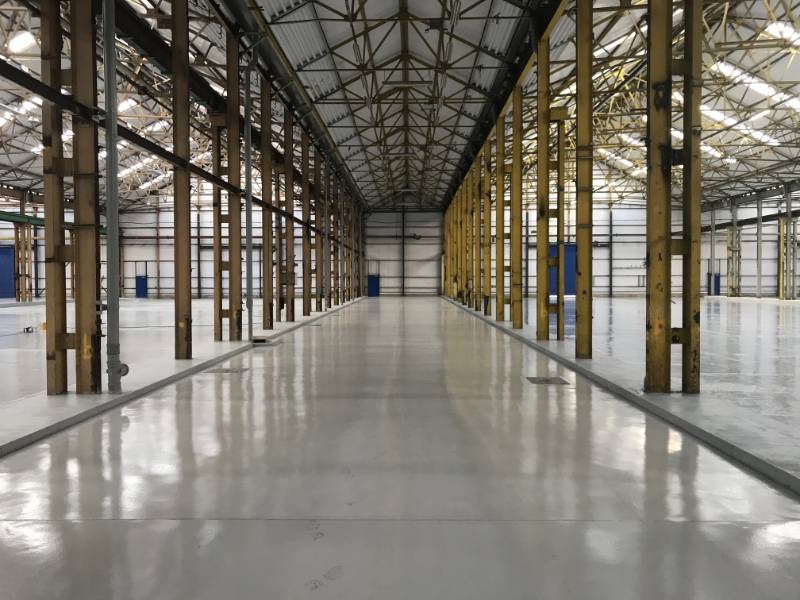

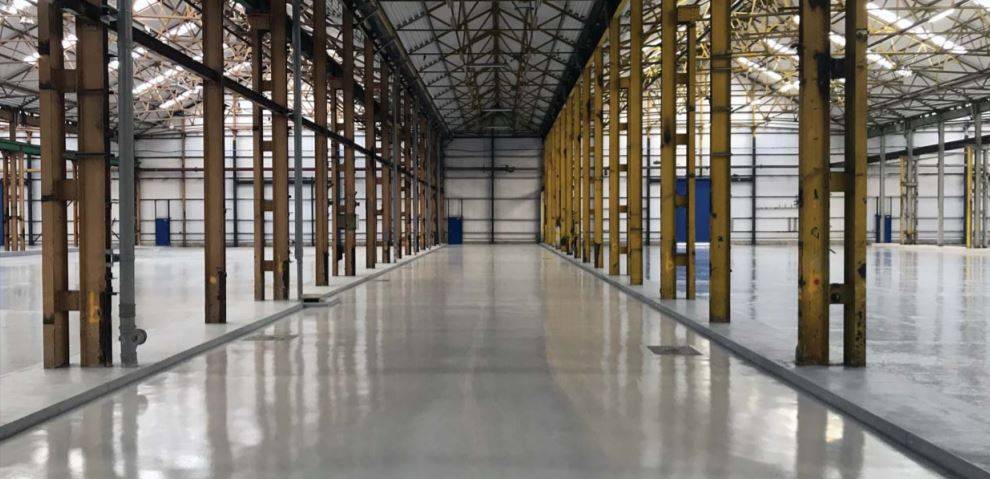

The Copperworks in Leeds required a floor refurbishment over some 30000 square metres - Sherwin-Williams Resucoat HB product provided the solution.
