Resin Flooring System Resuflor Deco Flake
Verified by manufacturer 3 months ago
ISO 9001 Quality Management
Certificate type
A multi-component epoxy floor system which utilizes coloured flakes applied to a base coat to provide a 1 mm thick decorative flooring finish.
Application
Epoxy resin floor coating suitable for use in:
- Decorative seamless floor areas.
- Domestic areas.
- Retail spaces.
- Stadiums and arenas.
- Factory units.
- Toilets and washrooms.
Description
A multi-component epoxy floor system which utilizes coloured flakes applied to a base coat to provide a 1 mm thick decorative flooring finish. Resuflor Deco Flake provides a solvent free low odour flooring solution with a hard wearing gloss or matt finish.

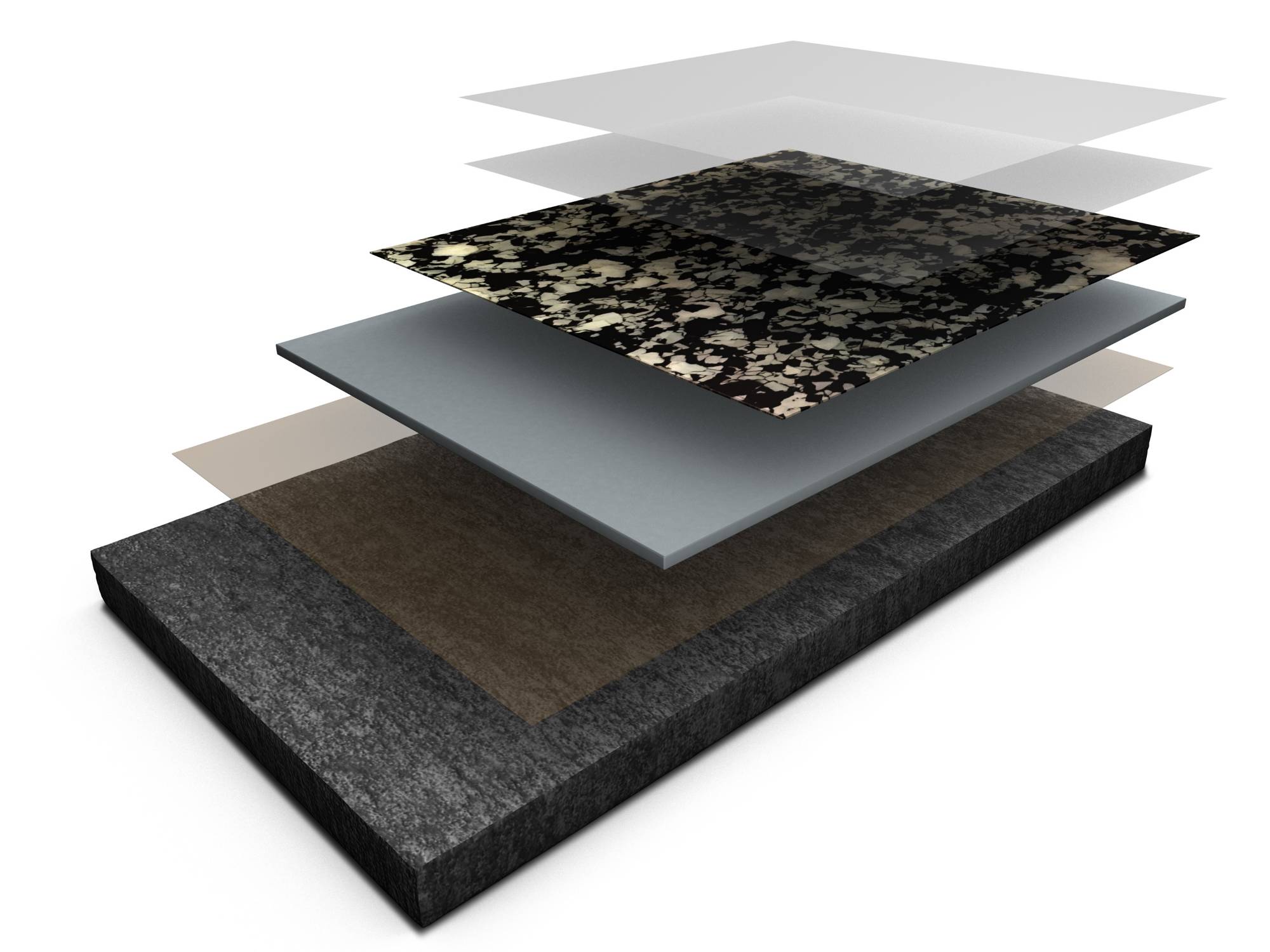

System includes:
- Substrate.
- Primer: Resuprime ST/ MVT.
- Base coat: Resuflor HB.
- Broadcoat: Coloured flakes.
- Grout coat: Resuflor HB Clear (optional second coat).
- Seal coat: Resupen WB Matt Clear.
Features and benefits:
- Produces decorative and functional surface.
- High build.
- Low odour.
- Tough and durable.
- Can be applied onto a wide range of substrates.
General information
Color | Black Blue Green Grey Red |
Finish | Matt Smooth Anti-slip |
Material | Epoxy screed Resin Epoxy resin |
Uniclass | |
CAWS | M12/10 Resin flooring M12/110 Resin flooring |
Specification data - Resin flooring systems
Substrate | |
Preparation | Preparation of existing substrates.Preparation of new substrates. |
Primer | Resuprime ST.Resuprime MVT.Resin coating primers. |
Resin flooring | Resucoat HB.Guidance for specification option: Base coat. Coloured flakes.Guidance for specification option: Broadcast. Resutop clear.Guidance for specification option: Grout coat (optional second coat). Resupen WB matt clear.Guidance for specification option: Seal coat. Resin floor coatings.High-build floor coatings.Multilayer flooring. |
Surface treatment | Floor surface coating resins.Slip-resistant surface treatments.Floor surface sealers. |
Movement joints | |
Type | Resin flooring strip movement joints. |
Execution | Workmanship.Application of primers.Surface abrading and polishing.Applying surface sealers.Applying surface finishes.Retention of resin edges. |
System thickness | 1 mm. |
Abrasion resistance | To ASTM D4060-14, 134.7 mg. Guidance for specification option: Loss/ 1000 Cycles. |
CompressiveStrength | To BS EN ISO 604, 9.6 MPa. |
TensileStrength | To BS EN ISO 527-2, 7.5 MPa. |
Flexural strength | To BS EN ISO 178, 3.2 N/mm². |
Bond strength | To EN 13892-8 , >3 N/mm². Guidance for specification option: Substrate failure. |
Temperature resistance | Up to 45⁰C. |
Reaction to fire (to EN 13501-1) | Bfl–s1. |
Chemical resistance | Good. |
UV stabilization | No. |
VOC content | Guidance for specification option: 12—186 g/L. Varies depending on product, 12–186 g/L. |
Coverage | Up to 50 m². Guidance for specification option: Varies depending on product. |
Cure time | 8 hours to 8 days. Guidance for specification option: Depends on traffic conditions and temperature. |
Application temperature | Guidance for specification option: 10—25°C. An equilibrium relative humidity (ERH) <90%. |
Performance | Manufacturer guidance
|
Testing | Manufacturer guidance
|
Sustainability data
Country of product manufacture | United Kingdom |
Third party certifications
Literature
Resin flooring Resuflor Deco Flake system
A guide to Sherwin-Williams Industrial Resin Flooring
Colour chart - Resuflake floor systems
Case studies
Decorative and seamless flooring supplied for atrium area to Radclyffe School
