Resin Flooring System FasTop™ SL45 WBU

Application

Suitable for use in:

  • Freezer temperatures.
  • Aircraft hangars - resistant to Skydrol.
  • Automotive workshops.
  • Food manufacture and processing.
  • Brewing and beverage.
  • Dairies.
  • Commercial kitchens.
  • Pharmaceutical and chemical plant processing.
  • Abattoirs and meat processing facilities.

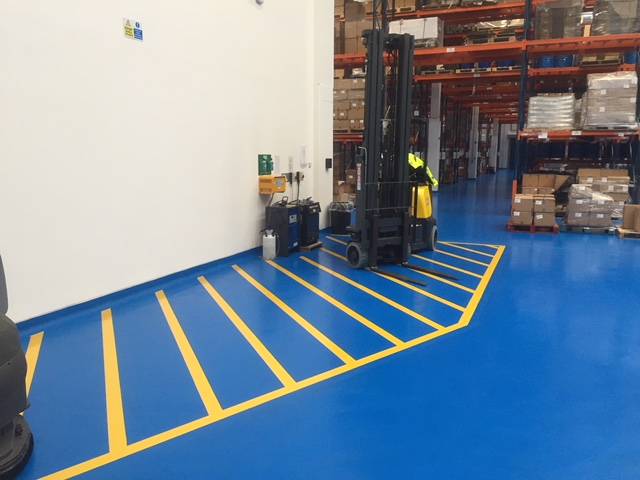

  • Heavy-duty plant and traffic areas.

Description

A 4–5 mm thick polyurethane cement, UV stable self-levelling resin floor system which provides a heavy-duty finish with resistance against chemical attack and hot water. It is a food grade, non-taint odourless product available with a satin or matt finish, providing maximum hygienic standards ideal for industrial and production areas.


Features and benefits:

  • High chemical resistance.
  • Resistance to hot water.
  • Self-sealing.
  • Extremely hard wearing.
  • Non dusting.
  • Matt or satin finish.

General information

Color

Black

Blue

Green

Grey

Orange

Show more

Finish

Matt

Satin

Material

Polyurethane

Resin

Length

Bespoke

Width

Bespoke

Height

Bespoke

WarrantyDescription

Five year

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/10 Resin flooring

M12/110 Resin flooring

Specification data - Resin flooring systems Enhanced data

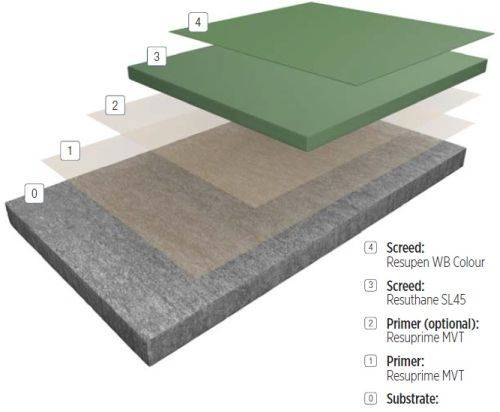

Substrate

-

Preparation

Preparation of existing substrates.

Preparation of new substrates.

Levelling screed

Insert requirement, consult manufacturer for information.

Primer

One coat Resuprime MVT.

Standard, for use if the concrete substrate moisture levels are above 75% equilibrium relative humidty (ERH) or no damp proof membrane is present.

Two coats Resuprime MVT.

For use if the concrete substrate moisture levels are particularly high.

Resin coating primers.

Resin flooring

Resupen WB Colour.

Consult manufacturer for information.

Resin floor coatings.

Flow applied flooring.

Heavy-duty flow-applied flooring.

Multilayer flooring.

Movement joints

-

Type

Resin flooring strip movement joints.

Resin skirtings and upstands

FasTop Multi WR.

Render-grade resins.

Execution

Workmanship.

Application of primers.

Surface abrading and polishing.

Applying surface sealers.

Applying surface finishes.

Retention of resin edges.

Installing strip movement joints.

System thickness

4—5 mm.

-

Reaction to fire (to EN 13501-1)

Bfl-s1.

Curing time

12—16 hours.

(at 20ºC) Light traffic.

48—72 hours.

(at 20ºC) Designed traffic.

5—7 days.

(at 20ºC) Full cure traffic.

Hardness

Shore D.

80.

After 24 hours.

Abrasion resistance

To BS EN 13892-5 and BS ISO 7619-1, AR 0.5

CompressiveStrength

To BS EN ISO 604, 54 MPa.

Flexural strength

To BS EN ISO 178+A1, 14 N/mm².

Bond strength

To BS EN 13892-8, >3 N/mm².

Substrate failure.

Impact resistance

To BS EN 6272, >4.

Temperature resistance

Tolerant of temperatures up to:

90°C.

At 3 mm.

Chemical resistance

Excellent.

UV stabilization

Yes.

Performance

  • Slip resistance.
  • Durability.
  • Water and vapour resistance.

-

Testing

  • Testing slip resistance.
  • Testing bond strength.
  • Verification of performance.

-

Environmental information

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Literature

Resin flooring FasTop SL45 WBU screed system

Resin flooring FasTop SL45 WBU screed system

A guide to FasTop polyurethane cement flooring systems for the Food and Beverage sector and for heavy industrial environments

A guide to FasTop polyurethane cement flooring systems for the Food and Beverage sector and for heavy industrial environments

A guide to Sherwin-Williams Industrial Resin Flooring

A guide to Sherwin-Williams Industrial Resin Flooring

Colour Chart - FasTop polyurethane screed systems

Colour Chart - FasTop polyurethane screed systems

Third party certifications

European Technical Approvals

European Technical Approvals

HACCP International

EMS ISO 14001

EMS ISO 14001

ISO 14001

BSI Kitemark

BSI Kitemark

ISO 9001
