NBS Source

Resin Flooring - Degafloor Full Broadcast Heavy Duty System

Verified by manufacturer 28 days ago

Degafloor Ltd Third party certifications:
  • QMS ISO 9001

    QMS ISO 9001

    Certificate type

  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

A heavy duty full broadcast system based on quick curing resins, created through the broadcasting of coloured quartz aggregate and coloured ali-oxide, providing excellent wear resistance

Jump to:
BIM object icon
+44 (0)1778 342545 Website

Application

Suitable for areas which are continually exposed to high levels of machinery, heavy loads, robotic actions or mechanical process.


Hard wearing, slip resistant, watertight, waterproof, sealed.


Applied by approved Degafloor installers.

Description

A heavy duty system that is 50% more hard wearing than a standard Full Broadcast system.


A methyl methacrylate (MMA) resin screed.


The textured surface is achieved with a full broadcast of coloured quartz and coloured aluminium oxide, which is finished with seal coats providing a fully encapsulated system.


Features and benefits:

  • Installation - fully cured within two hours at temperatures down to -20°C.
  • Bonds to a wide range of substrates.
  • Seamless and impermeable surface without pinholes or air bubbles.
  • Resistant to chemical and physical attack.
  • Tailored decorative and slip resistant finishes.
  • Resistant to UV light, weathering and temperatures up to 80°C.
  • Manufactured in accordance with BS EN ISO 9001:2015 Certificate 20/Q064 Quality Management Systems.
  • Excellent wear resistance.

General information

Color

Grey

Red

White

Yellow

Finish

Textured

Material

Methyl methacrylate

WarrantyDescription

Ten year

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/110 Resin flooring

M12/10 Resin flooring

Specification data - Resin flooring systems

System performance

Watertight, impervious to moisture.

Substrate

-

Testing

Bond test, moisture and compressive tests undertaken by the Degafloor Approved Installer.

This is part of Degafloor's Warranty process.

Preparation

Mechanical preparation required.

Levelling screed

Bonded or partially bonded cementitious levelling screed system.

Primer

Primer dependant on the substrate, i.e. metal, timber, cementitious, asphalt. Specific primer is used for maximum adhesion. Consult manufacturer and insert requirements.

-

Resin flooring

Heavy-duty flow-applied flooring.

Surface treatment

Slip-resistant surface treatments.

Movement joints

-

Type

Degafloor Flexible Resin Jointing Compound.

Resin skirtings and upstands

Skirtings and coving to match flooring colour.

Execution

All Degafloor systems are installed by Degafloor Approved Installers, training must be undertaken.

Installation by Degafloor Approved Installers.

System completion

Testing slip resistance.

Abrasion resistance

Weight loss <3000 mg.

Adhesion strength

≥2.0 N/mm².

Finish

Textured.

Material

MMA.

Methyl methacrylate resin.

Bond strength

≥B2.0

Capillary absorption

W <0.1 kg/(m²·h^0.5).

Capillary absorption and permeability to water.

Carbon dioxide permeability

SD >50 m.

Chemical resistance

Reduction in hardness <50%.

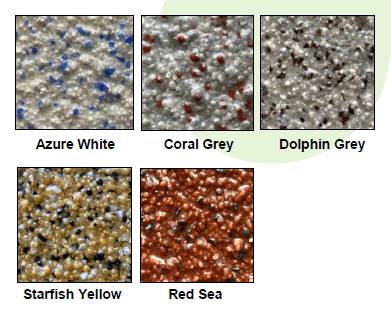

Colour

Azure White.

Coral Grey.

Dolphin Grey.

Red Sea.

Starfish Yellow.

Curing time

1 hour.

Impact resistance

Class I, ≥IR 4.

Reaction to fire

Not tested.

Release of corrosive substances

SR.

Standard

To BS EN 1504 and BS EN 13813.

Third-party certification

To British Board of Agrément-certified (20/Q064).

Water vapour permeability

Class III.

Wear resistance

≤AR 0.5.

Environmental information

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany
