Name: ResiDUCT 300x100mm Rectangular Metal Ducting Range for MVHR - Metal Ducting
Brand: Pinnacle HVAC Solutions
SKU: 4Yg4jHqkRRYGW5smcEXCFv

Color

Silver

Finish

Galvanized

Material

Steel

Shape

Rectangle

Length

1500 mm

Guidance for specification option:

Length of Metal Ducting

Manufacturer guidance

ResiDUCT™ 300x100 Range incudes components required for a ducting system design

Width

300 mm

Guidance for specification option:

Width of metal ducting system

Manufacturer guidance

ResiDUCT™ 300x100 Ducting System is a low profile duicting system. A range of components available in range all with 300mm width

Height

100 mm

Guidance for specification option:

Height of ducting range (300mm wide) - low profile ductwork for high performance.

Manufacturer guidance

ResiDUCT™ 300x100mm ducting system design. Range of components avilable within the system to create ducting layouts.

Warranty description

Five year

Uniclass

Pr_65_65_25_23 Domestic rigid ductwork and fittingsPrimary

CAWS

F30/160 Airbricks in external walling

U90/425 Rigid ductwork and fittings

Classification data

Material

Galvanized steel.

Size

300 x 100 mm.

Guidance for specification option:

RD/300100D: 1.5 m duct length.
Connection: male.
Weight: 7.1 kg.
Minimum free area: 29 521 mm².

Jointing

Socket seal jointing.

Sleeves

Material

0.6 mm galvanized steel.

Accessories

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Connectors

Residuct™ Duct Connector.

Guidance for specification option:

RD/300100DC.
Dimensions: 303 x 103 x 100 mm.
Minimum free area: 29 521 mm².
Connection: female.
Weight: 1.2 kg.

Residuct™ Flat Shoe.

Guidance for specification option:

RD/300100SH.
Dimensions: 403 x 103 > 303 x 103 mm.
Minimum free area: 29 521 mm².
Connection: female.
Weight: 1.3 kg.

Residuct™ Taper 204 x 60 mm.

Guidance for specification option:

RD/30010020460.
Minimum free area: 11 452–29 521 mm².
Connection: female.
Weight: 1.4 kg.

Residuct™ Taper 220 x 90 mm.

Guidance for specification option:

RD/30010022090.
Dimensions: 303 x 103 > 223 x 93 mm.
Minimum free area: 18 545–29 521 mm².
Connection: female.
Weight: 1.4 kg.

Residuct™ Flat Shoe 204 x 60 mm.

Guidance for specification option:

RD/300100SH2.
Dimensions: 303 x 103 > 207 x 63 mm.
Minimum free area: 11 452–29 521 mm².
Connection: female.
Weight: 1.3 kg.

Residuct™ Flat Shoe 220 x 90 mm.

Guidance for specification option:

RD/300100SH1.
Dimensions: 303 x 103 > 223 x 93 mm.
Minimum free area: 18 545–29 521 mm².
Connection: female.
Weight: 1.3 kg.

Residuct™ Horizontal Equal T Piece.

Guidance for specification option:

RD/300100T.
Minimum free area: 29 521 mm².
Connection: female.
Weight: 3.2 kg.

Not required.

Bends

Residuct™ 45° horizontal bend.

Guidance for specification option:

RD/300100B45.
Minimum free area: 29 521 mm².
Connection: female.
Weight: 1.8 kg.

Residuct™ 45° vertical bend.

Guidance for specification option:

RD/300100V45.
Minimum free area: 29 521 mm².
Connection: female.
Weight: 1.8 kg.

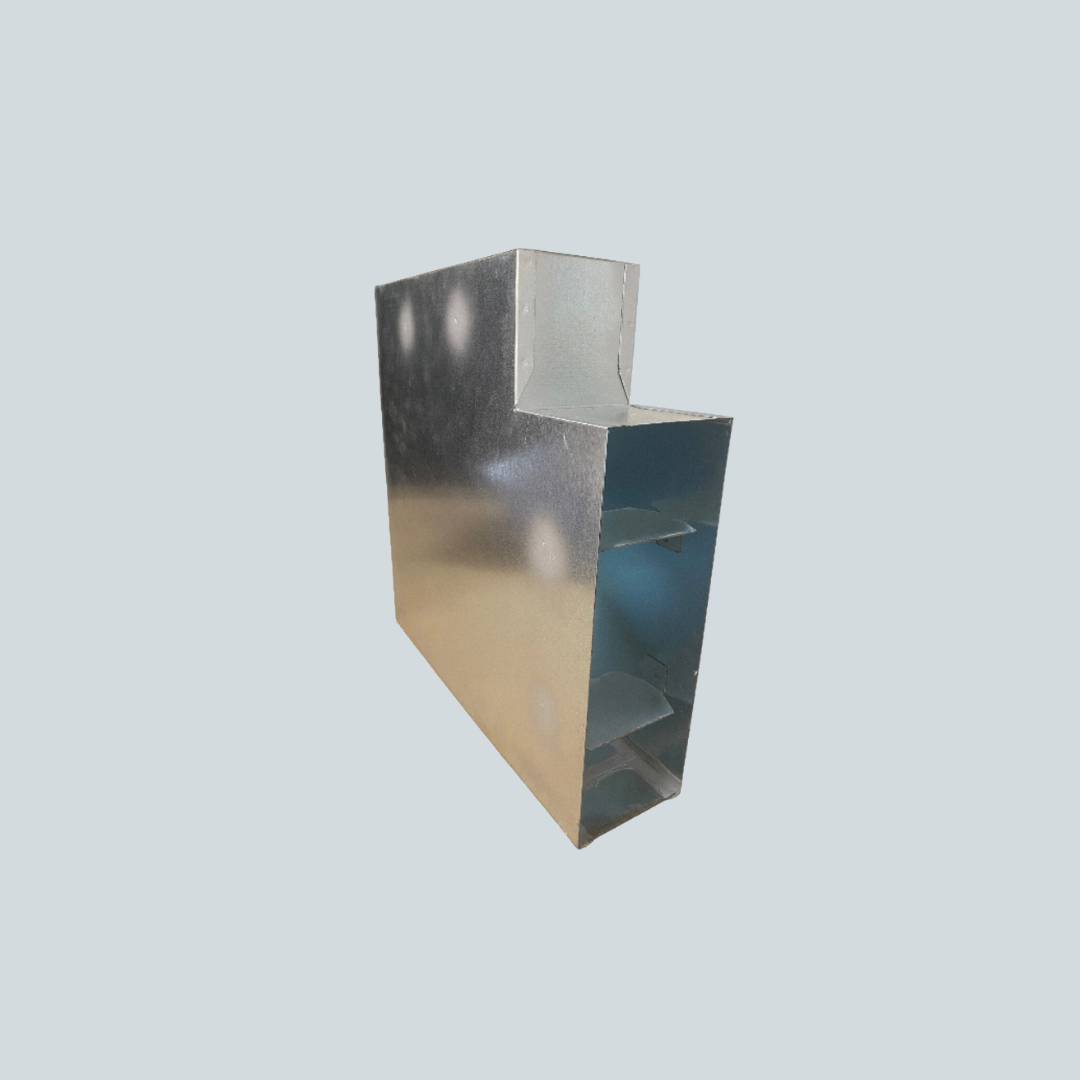

Residuct™ 90° horizontal bend.

Guidance for specification option:

RD/300100B90.
Minimum free area: 29 521 mm².
Connection: female.
Weight: 3.1 kg.

Residuct™ 90° vertical bend.

Guidance for specification option:

RD/300100V90.
Minimum free area: 29 521 mm².
Connection: female.
Weight: 3 kg.

Not required.

Elbows

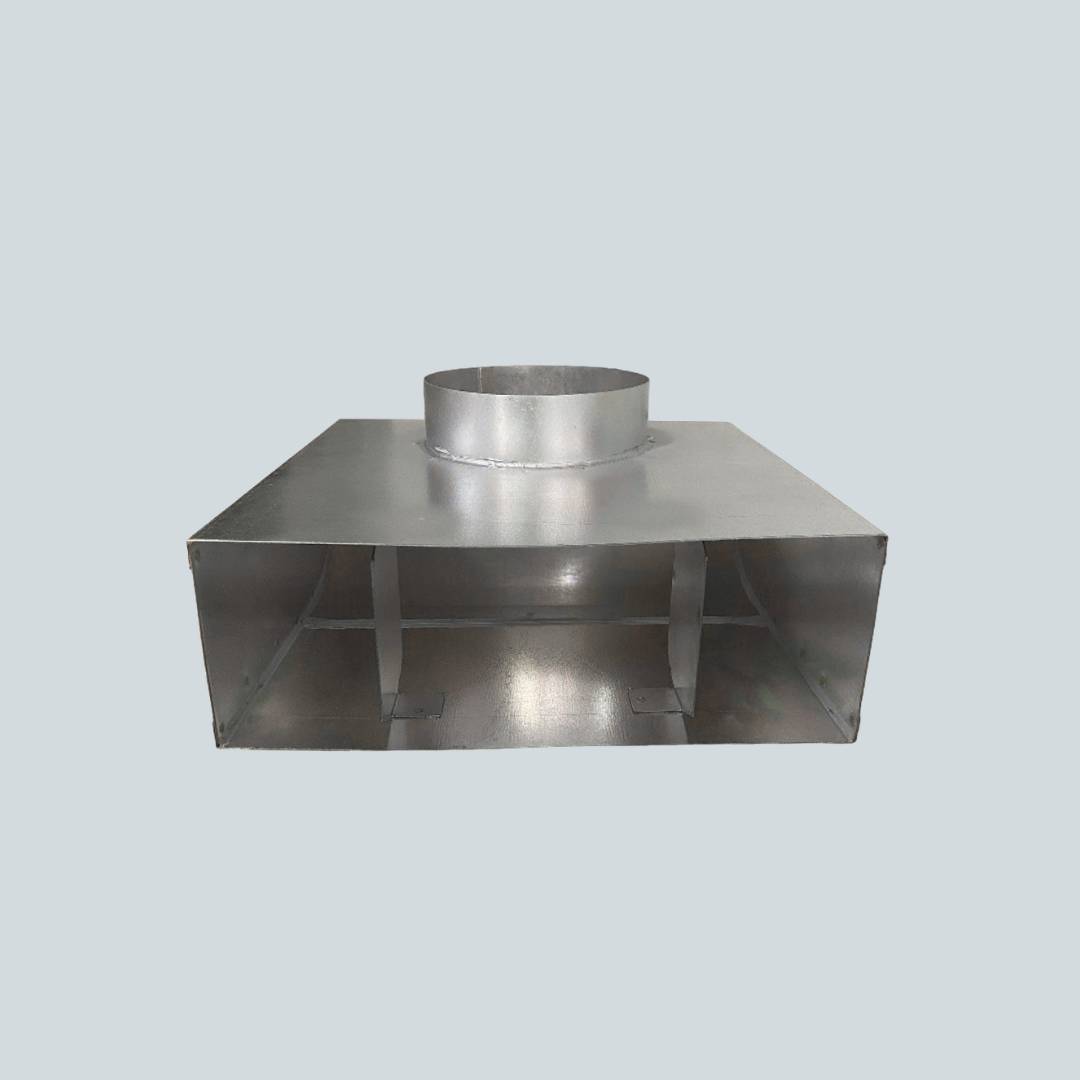

Residuct™ Plenum Elbow >200 mm ⌀.

Guidance for specification option:

RD/300100EL.
Dimensions: Offset 100 303 x 103 mm.
Minimum free area: 29 521 mm² (rectangular end) 12 345 mm² (200mm Ø end).
Connection: female.
Weight: 1.5 kg.

Not required.

Offsets

Residuct™ Offset.

Guidance for specification option:

RD/300100OS.
Dimensions: Offset 100 303 x 103 mm.
Minimum free area: 29 521 mm².
Connection: female.
Weight: 1.2 kg.

Not required.

Contains Red List materials

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Manufacturing plant location

Havant PO9, UK

Material

Steel

Recyclability

Recyclable

ResiDUCT 300x100mm Rectangular Metal Ducting Range for MVHR - Metal Ducting

Application

Description

General information

Color

Finish

Material

Shape

Length

Manufacturer guidance

Width

Manufacturer guidance

Height

Manufacturer guidance

Warranty description

Uniclass

CAWS

SKU Code

Specification data - Domestic rigid ductwork and fittings

Classification data

Material

Size

Jointing

Sleeves

Material

Accessories

Manufacturer guidance

Connectors

Bends

Elbows

Offsets

Sustainability data

Contains Red List materials

Country of material origin

Country of product manufacture

Manufacturing plant location

Material

Recyclability

Similar products from Pinnacle HVAC Solutions

Classification data
Material	Galvanized steel.
Size	300 x 100 mm. Guidance for specification option: RD/300100D: 1.5 m duct length. Connection: male. Weight: 7.1 kg. Minimum free area: 29 521 mm².
Jointing	Socket seal jointing.
Sleeves	-
Material	0.6 mm galvanized steel.
Accessories	- Manufacturer guidance Consult manufacturer and insert requirements or omit.
Connectors	Residuct™ Duct Connector. Guidance for specification option: RD/300100DC. Dimensions: 303 x 103 x 100 mm. Minimum free area: 29 521 mm². Connection: female. Weight: 1.2 kg. Residuct™ Flat Shoe. Guidance for specification option: RD/300100SH. Dimensions: 403 x 103 > 303 x 103 mm. Minimum free area: 29 521 mm². Connection: female. Weight: 1.3 kg. Residuct™ Taper 204 x 60 mm. Guidance for specification option: RD/30010020460. Minimum free area: 11 452–29 521 mm². Connection: female. Weight: 1.4 kg. Residuct™ Taper 220 x 90 mm. Guidance for specification option: RD/30010022090. Dimensions: 303 x 103 > 223 x 93 mm. Minimum free area: 18 545–29 521 mm². Connection: female. Weight: 1.4 kg. Residuct™ Flat Shoe 204 x 60 mm. Guidance for specification option: RD/300100SH2. Dimensions: 303 x 103 > 207 x 63 mm. Minimum free area: 11 452–29 521 mm². Connection: female. Weight: 1.3 kg. Residuct™ Flat Shoe 220 x 90 mm. Guidance for specification option: RD/300100SH1. Dimensions: 303 x 103 > 223 x 93 mm. Minimum free area: 18 545–29 521 mm². Connection: female. Weight: 1.3 kg. Residuct™ Horizontal Equal T Piece. Guidance for specification option: RD/300100T. Minimum free area: 29 521 mm². Connection: female. Weight: 3.2 kg. Not required.
Bends	Residuct™ 45° horizontal bend. Guidance for specification option: RD/300100B45. Minimum free area: 29 521 mm². Connection: female. Weight: 1.8 kg. Residuct™ 45° vertical bend. Guidance for specification option: RD/300100V45. Minimum free area: 29 521 mm². Connection: female. Weight: 1.8 kg. Residuct™ 90° horizontal bend. Guidance for specification option: RD/300100B90. Minimum free area: 29 521 mm². Connection: female. Weight: 3.1 kg. Residuct™ 90° vertical bend. Guidance for specification option: RD/300100V90. Minimum free area: 29 521 mm². Connection: female. Weight: 3 kg. Not required.
Elbows	Residuct™ Plenum Elbow >200 mm ⌀. Guidance for specification option: RD/300100EL. Dimensions: Offset 100 303 x 103 mm. Minimum free area: 29 521 mm² (rectangular end) 12 345 mm² (200mm Ø end). Connection: female. Weight: 1.5 kg. Not required.
Offsets	Residuct™ Offset. Guidance for specification option: RD/300100OS. Dimensions: Offset 100 303 x 103 mm. Minimum free area: 29 521 mm². Connection: female. Weight: 1.2 kg. Not required.
