Residual Current Breaker with Over-Current – RCBO – DSE201NM – Three Pole
Verified by manufacturer 3 months ago

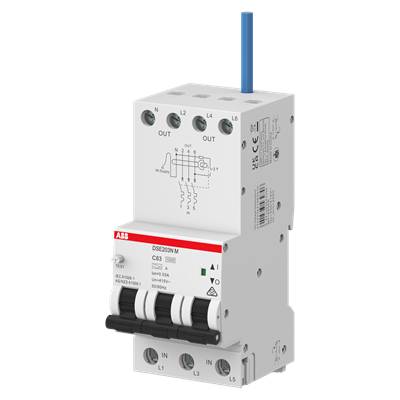

3P+N electronic residual current circuit breaker with overcurrent protection (eRCBO) in three modules.
Application
Residential, commercial and industrial.
Suitable for installation in chassis distribution board, providing protection against short-circuit currents, overloads and earth fault currents.
Description
3P+N electronic residual current circuit breaker with overcurrent protection (eRCBO) in three modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts (30 mA versions).
The neutral is unswitched.

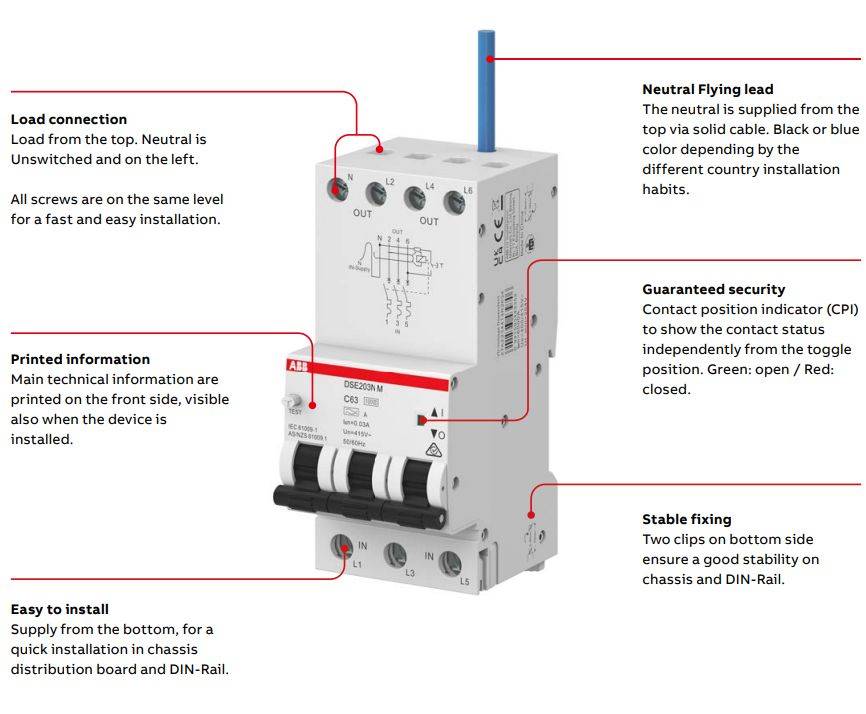

Features and benefits:
- Load connection: Load from the top. Neutral is unswitched and on the left. All screws are on the same level for a fast and easy installation.
- Printed information: Main technical information are printed on the front side, visible also when the device is installed.
- Easy to install: Supply from the bottom, for a quick installation in chassis distribution board and DIN rail.
- Neutral Flying lead: The neutral is supplied from the top via solid cable. Black or blue colour depending by the different country installation habits.
- Guaranteed security: Contact position indicator (CPI) to show the contact status independently from the toggle position. Green: open/ Red: closed.
- Stable fixing: Two clips on bottom side ensure a good stability on chassis and DIN rail.
General information
Color | Grey Guidance for specification option: RAL 7035 (housing only). |
Finish | Smooth |
Shape | Rectangle |
Length | 71.6 mm |
Width | 53.4 mm |
Height | 117.5 mm |
Uniclass | |
CAWS | V91/315 Cable distribution cabinets V91/320 Distribution boards V90/319 Cable distribution cabinets V90/320 Distribution boards |
SKU Code | 2TAZ233414R1061, 2TAZ233414R1064, 2TAZ233414R1065, 2TAZ233414R1101, 2TAZ233414R1104, 2TAZ233414R1105, 2TAZ233414R1131, 2TAZ233414R1134, 2TAZ233414R1135, 2TAZ233414R1161, 2TAZ233414R1164, 2TAZ233414R1165, 2TAZ233414R1201, 2TAZ233414R1204, 2TAZ233414R1205, 2TAZ233414R1251, 2TAZ233414R1254, 2TAZ233414R1255, 2TAZ233414R1321, 2TAZ233414R1324, 2TAZ233414R1325, 2TAZ233414R1401, 2TAZ233414R1404, 2TAZ233414R1405, 2TAZ233414R1501, 2TAZ233414R1504, 2TAZ233414R1505, 2TAZ233414R1631, 2TAZ233414R1634, 2TAZ233414R1635, 2TAZ233414R2061, 2TAZ233414R2064, 2TAZ233414R2065, 2TAZ233414R2101, 2TAZ233414R2104, 2TAZ233414R2105, 2TAZ233414R2131, 2TAZ233414R2134, 2TAZ233414R2135, 2TAZ233414R2161, 2TAZ233414R2164, 2TAZ233414R2165, 2TAZ233414R2201, 2TAZ233414R2204, 2TAZ233414R2205, 2TAZ233414R2251, 2TAZ233414R2254, 2TAZ233414R2255, 2TAZ233414R2321, 2TAZ233414R2324, 2TAZ233414R2325, 2TAZ233414R2401, 2TAZ233414R2404, 2TAZ233414R2405, 2TAZ233414R2501, 2TAZ233414R2504, 2TAZ233414R2505, 2TAZ233414R2631, 2TAZ233414R2634, 2TAZ233414R2635, 2TAZ233414R3061, 2TAZ233414R3064, 2TAZ233414R3065, 2TAZ233414R3101, 2TAZ233414R3104, 2TAZ233414R3105, 2TAZ233414R3131, 2TAZ233414R3134, 2TAZ233414R3135, 2TAZ233414R3161, 2TAZ233414R3164, 2TAZ233414R3165, 2TAZ233414R3201, 2TAZ233414R3204, 2TAZ233414R3205, 2TAZ233414R3251, 2TAZ233414R3254, 2TAZ233414R3255, 2TAZ233414R3321, 2TAZ233414R3324, 2TAZ233414R3325, 2TAZ233414R3401, 2TAZ233414R3404, 2TAZ233414R3405, 2TAZ233414R3501, 2TAZ233414R3504, 2TAZ233414R3505, 2TAZ233414R3631, 2TAZ233414R3634, 2TAZ233414R3635, 2TAZ233414R4061, 2TAZ233414R4064, 2TAZ233414R4065, 2TAZ233414R4101, 2TAZ233414R4104, 2TAZ233414R4105, 2TAZ233414R4131, 2TAZ233414R4134, 2TAZ233414R4135, 2TAZ233414R4161, 2TAZ233414R4164, 2TAZ233414R4165, 2TAZ233414R4201, 2TAZ233414R4204, 2TAZ233414R4205, 2TAZ233414R4251, 2TAZ233414R4254, 2TAZ233414R4255, 2TAZ233414R4321, 2TAZ233414R4324, 2TAZ233414R4325, 2TAZ233414R4401, 2TAZ233414R4404, 2TAZ233414R4405, 2TAZ233414R4501, 2TAZ233414R4504, 2TAZ233414R4505, 2TAZ233414R4631, 2TAZ233414R4634, 2TAZ233414R4635, 2TAZ234414R1061, 2TAZ234414R1064, 2TAZ234414R1065, 2TAZ234414R1101, 2TAZ234414R1104, 2TAZ234414R1105, 2TAZ234414R1131, 2TAZ234414R1134, 2TAZ234414R1135, 2TAZ234414R1161, 2TAZ234414R1164, 2TAZ234414R1165, 2TAZ234414R1201, 2TAZ234414R1204, 2TAZ234414R1205, 2TAZ234414R1251, 2TAZ234414R1254, 2TAZ234414R1255, 2TAZ234414R1321, 2TAZ234414R1324, 2TAZ234414R1325, 2TAZ234414R1401, 2TAZ234414R1404, 2TAZ234414R1405, 2TAZ234414R1501, 2TAZ234414R1504, 2TAZ234414R1505, 2TAZ234414R1631, 2TAZ234414R1634, 2TAZ234414R1635, 2TAZ234414R2061, 2TAZ234414R2064, 2TAZ234414R2065, 2TAZ234414R2101, 2TAZ234414R2104, 2TAZ234414R2105, 2TAZ234414R2131, 2TAZ234414R2134, 2TAZ234414R2135, 2TAZ234414R2161, 2TAZ234414R2164, 2TAZ234414R2165, 2TAZ234414R2201, 2TAZ234414R2204, 2TAZ234414R2205, 2TAZ234414R2251, 2TAZ234414R2254, 2TAZ234414R2255, 2TAZ234414R2321, 2TAZ234414R2324, 2TAZ234414R2325, 2TAZ234414R2401, 2TAZ234414R2404, 2TAZ234414R2405, 2TAZ234414R2501, 2TAZ234414R2504, 2TAZ234414R2505, 2TAZ234414R2631, 2TAZ234414R2634, 2TAZ234414R2635, 2TAZ234414R3061, 2TAZ234414R3064, 2TAZ234414R3065, 2TAZ234414R3101, 2TAZ234414R3104, 2TAZ234414R3105, 2TAZ234414R3131, 2TAZ234414R3134, 2TAZ234414R3135, 2TAZ234414R3161, 2TAZ234414R3164, 2TAZ234414R3165, 2TAZ234414R3201, 2TAZ234414R3204, 2TAZ234414R3205, 2TAZ234414R3251, 2TAZ234414R3254, 2TAZ234414R3255, 2TAZ234414R3321, 2TAZ234414R3324, 2TAZ234414R3325, 2TAZ234414R3401, 2TAZ234414R3404, 2TAZ234414R3405, 2TAZ234414R3501, 2TAZ234414R3504, 2TAZ234414R3505, 2TAZ234414R3631, 2TAZ234414R3634, 2TAZ234414R3635, 2TAZ234414R4061, 2TAZ234414R4064, 2TAZ234414R4065, 2TAZ234414R4101, 2TAZ234414R4104, 2TAZ234414R4105, 2TAZ234414R4131, 2TAZ234414R4134, 2TAZ234414R4135, 2TAZ234414R4161, 2TAZ234414R4164, 2TAZ234414R4165, 2TAZ234414R4201, 2TAZ234414R4204, 2TAZ234414R4205, 2TAZ234414R4251, 2TAZ234414R4254, 2TAZ234414R4255, 2TAZ234414R4321, 2TAZ234414R4324, 2TAZ234414R4325, 2TAZ234414R4401, 2TAZ234414R4404, 2TAZ234414R4405, 2TAZ234414R4501, 2TAZ234414R4504, 2TAZ234414R4505, 2TAZ234414R4631, 2TAZ234414R4634, 2TAZ234414R4635 |
Specification data - Residual current circuit breakers with integral overcurrent protection
Standards | To BS EN 61009-1. To IEC 61009-1 and IEC 61009-2-2. TO AS/NZS 61009. Manufacturer guidanceAlso to IEC 61009-1, IEC 61009-2-2 and AS/NZS 61009.1. |
Operating characteristic | A. |
Tripping characteristic | Type B. Type C. Type D. |
Rated current (InA) | 6 A. 10 A. 13 A. 16 A. 20 A. 25 A. 32 A. 40 A. 50 A. 63 A. |
Rated operational voltage (Ue) | 400/ 415 V a.c. Manufacturer guidanceMaximum operating voltage: 457 V. |
Rated impulse withstand voltage (Uimp) | 4 kV. Manufacturer guidanceTest voltage 6.2 kV at sea level, 5 kV at 2000 m. |
Rated frequency | 50 Hz. 60 Hz. |
Number of poles | Three + neutral. |
Rated short circuit capacity (Icn) | 10 kA. Guidance for specification option: Rated breaking capacity according to IEC 60947-2, for In = 50 A. Manufacturer guidance
|
Rated residual operating current | 10 mA. 30 mA. 100 mA. 300 mA. |
Features | Contact position indicator: Green/ red window. |
Mounting method | DIN rail. Guidance for specification option:
|
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Housing | Insulation group II, RAL 7035. |
Overvoltage | Category III. |
Ingress protection | Housing: IP40. |
Technical characteristics, other | Insulation voltage according to IEC/ EN 60664-1: 500 V a.c. Manufacturer guidanceConsult manufacturer's literature for further details. |
Ambient temperature | -5 to +40°C (with daily average ≤35°C). Manufacturer guidanceStorage temperature: -40 to +70°C. |
