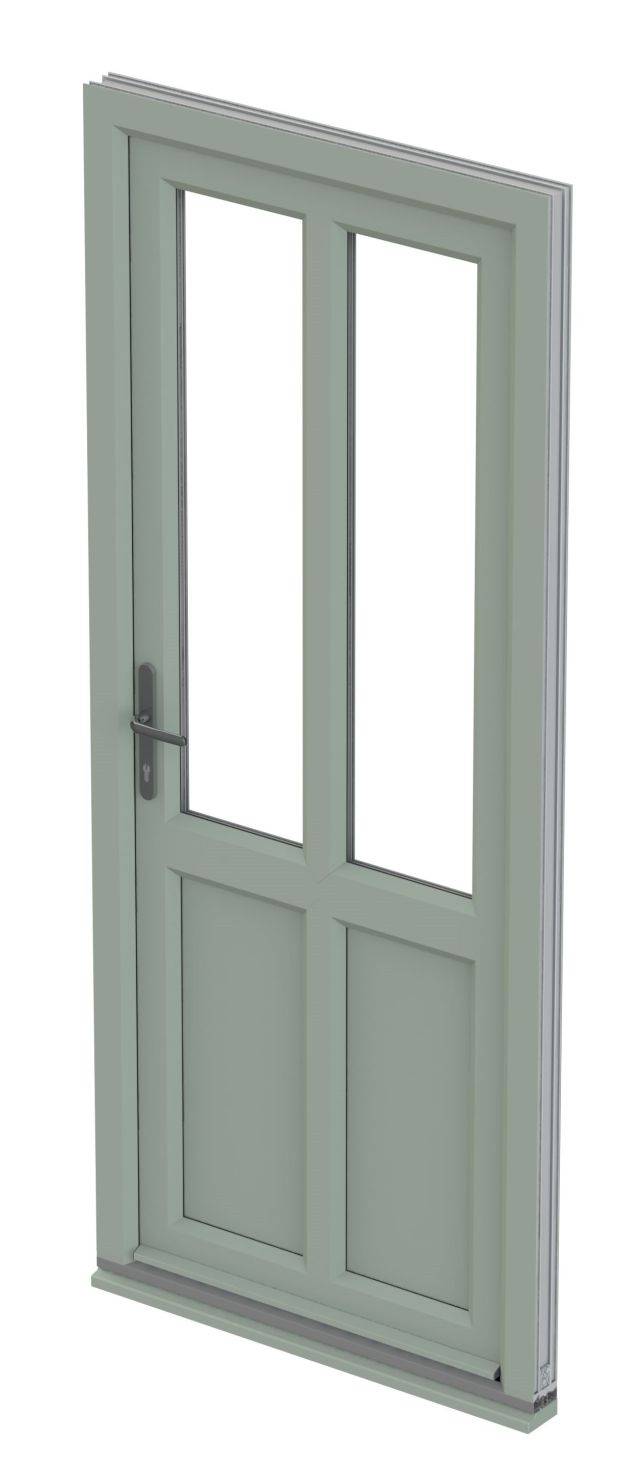

Residential Door 70 mm

Description

Internally or externally beaded PVC-U doors available in a range of styles and colours to match the rest of the Liniar range of windows and doors.

Inward opening (with outward opening option available) with either sculptured or chamfered profile.

Features and benefits:

  • Multi-chambered profiles to offer low U-Values.
  • Includes patented co-ex gasket.
  • Double (28 mm) or triple (36 mm) glazing options.
  • Building Regulations (E&W) Approved Document M compliant threshold option.
  • Available as a stable door.

Accreditations:

  • Secured by Design approved.
  • PAS 24:2012 Kitemark 522039.
  • BS EN 12608:2003 Kitemark 522040.

General information

Uniclass 2015

Pr_30_59_24_92 Unplasticized polyvinyl chloride (PVC-U) doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Unplasticized polyvinyl chloride (PVC-U) doorsets

Product Reference

Residential Door 70 mm

Standard four chamber profile.

Residential Door, EnergyPlus 70 mm

Six chamber profile.

Opening

Inward

Standard.

Outward

Optional.

Frame

-

Profile

Chamfered

Sculptured

Outer frame

57 mm

77 mm

Midrail

Not required

87 mm

117 mm

Threshold

112 mm, Approved Document M compliant threshold

127 mm, aluminium threshold

136 mm, frame and sash

156 mm, frame and sash

External sill

85 mm

150 mm

165 mm

180 mm

225 mm

Glazing

Double

28 mm, U-value of 1.3 W/m²K achievable, consult manufacturer.

Triple

36 mm, U-value of 1.0 W/m²K achievable, consult manufacturer.

Bead

External

Optional.

Internal

Standard.

Colour

7016 grey

Available with sculptured profile only.

Black

Chartwell green

Available with sculptured profile only.

Cream

Available with sculptured profile only.

Cream foil

Available with sculptured profile only.

Golden oak

Irish oak

Available with sculptured profile only.

Mahogany

Rosewood

White

Available with sculptured profile only.

Product Options

Colour:

Other colours are available as a special order, consult manufacturer.
