Resan Piezo Control Kit
Verified by manufacturer 4 months ago
374593 Red Surround
374593 Red Surround

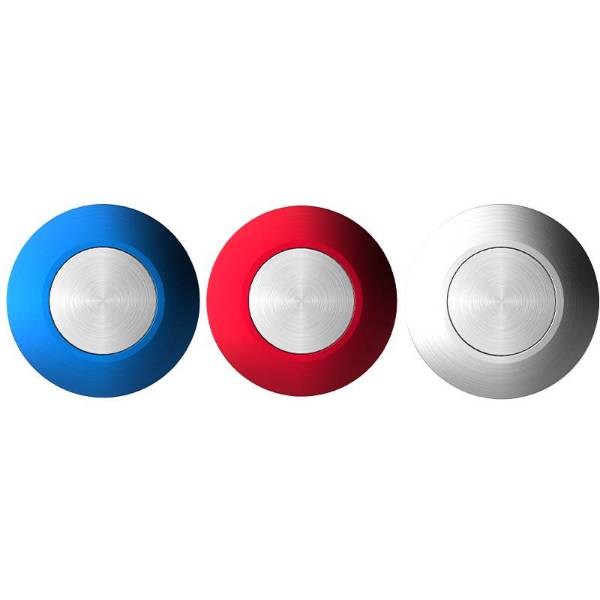

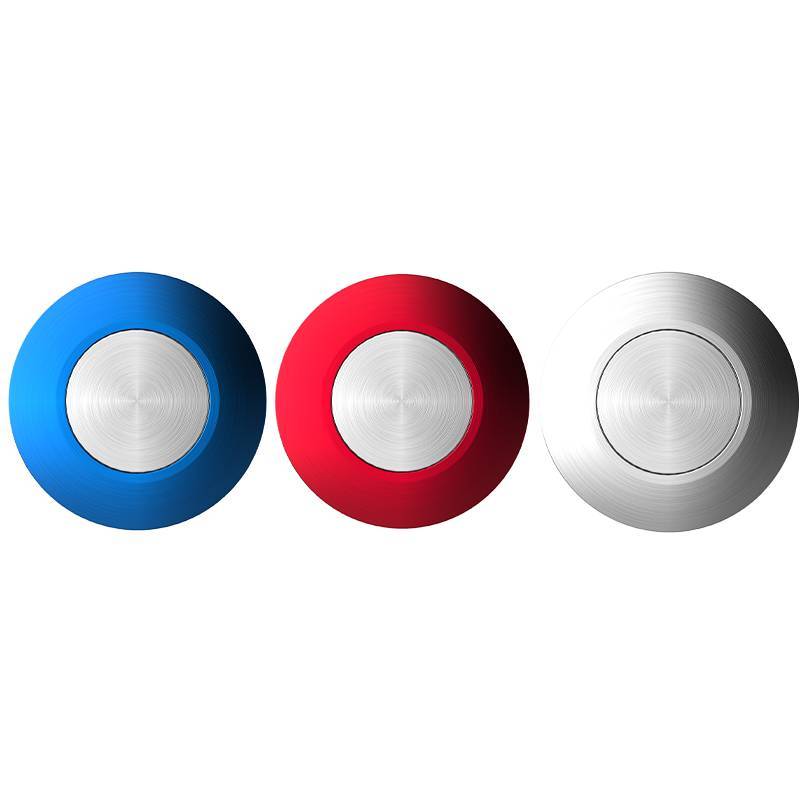

Touch controls designed for use with taps, shower and WC.
Application
- Suitable for use with the washroom control system.
- Red surround typically used to indicate control for hot or premixed taps or showers.
- Blue surround typically used to indicate control for cold taps or showers.
- Silver surround typically used to indicate control WCs and urinals.
Description
Resan Piezo Control Kit for use with the Washroom Control System for activation of taps, showers and WCs.
Features and benefits:
- Programmable lockout function and run time.
- Hygienic touch-free operation.
- Anti-ligature design.
- Available in red, blue and silver.
General information
Color | Red Blue Silver |
Material | Aluminium |
Shape | Circle |
Length | 40 mm |
Width | 90 mm |
Height | 40 mm |
Warranty description | One year |
Uniclass | |
CAWS | S90/690 Flush control devices S90/690 Flush control devices |
Specification data - Flush control devices
Materials | |
Finish and colour | Red surround. |
Operation | Push-button. |
Controller | Washroom control. |
Operating voltage | 12 V d.c. |
Ingress protection (IP) rating | IP68. |
Diameter | 40 mm. |
Length | 5–90 mm. Guidance for specification option: Without spacer, 5–40 mm with spacer. |
Accessories | Not required. 100 mm extension. Guidance for specification option: Product code: 374575. Extension length: 115–190 mm. 200 mm extension. Guidance for specification option: Product code: 374576. Extension length: 115–290 mm. |
Sustainability data
Contains Red List materials | No |
Material | Aluminium |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
