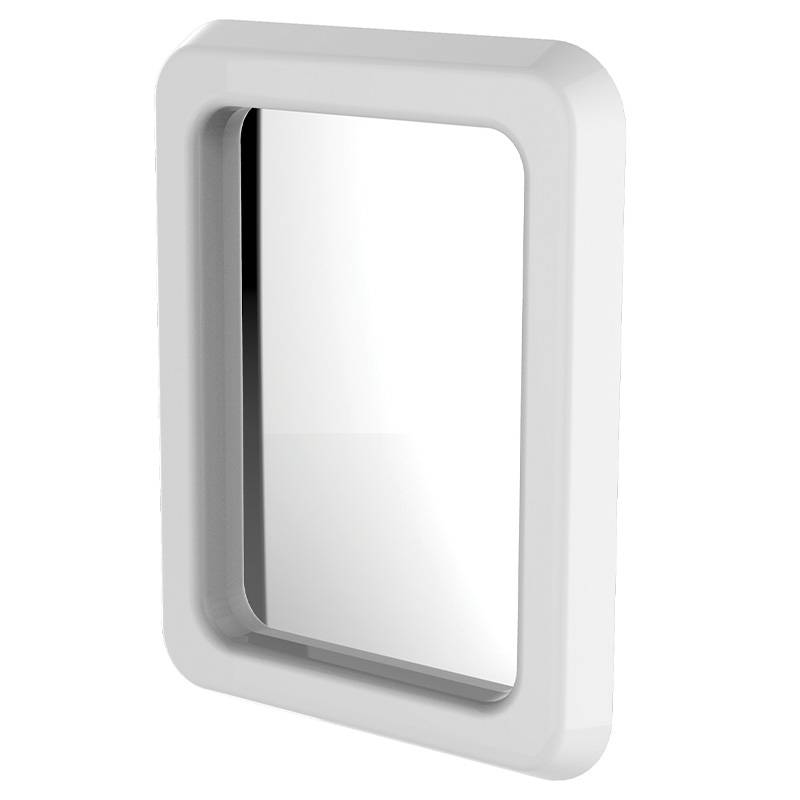

Resan® Mirror Frame
Verified by manufacturer 5 months ago
Standard Rear – Fix 326147
Standard Rear – Fix 326147
Damage resistant, anti-ligature mirror frame system.
Application
Suitable for installation within custodial, healthcare, commercial or retrofit domestic applications.
Description
The Resan mirror frame system makes use of a 3 mm thick tough polycarbonate that is vandal and scratch resistant and rigid. This is important for dementia sufferers as well as custodial applications where weaponizing of a broken product must be avoided.
It also offers a solution for vandal proof rest room mirror, industrial and other high footfall requirements where the unit is subject to damage and vandalization.
Available in two frame sizes manufactured as a single piece as standard but are able to manufacture bespoke sizes subject to request and consultation with manufacturer.
Features and benefits:
- Damage resistant and anti-ligature.
- 3 mm thick tough polycarbonate that is vandal and scratch resistant while also not flexing easily.
- Available in 2 sizes, 350 x 450 mm and 600 x 500 mm.
- Non-flammable: to BS476, part 6 and 7; Class 0 and Class 1.
- To ISO EN 19712-3-2007: rated 5 for durability, stain resistance and cigarette burns.
- UK Ministry Of Justice Safer Cell Approved.
General information
Color | White |
Finish | Gloss |
Material | Fluoropolymer resin Polycarbonate |
Shape | Rectangle |
Length | 350 mm 500 mm |
Height | 450 mm 600 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/438 Mirrors L40/560 Plastics mirrors N10/75 Framed mirrors N10/275 Framed mirrors N10/270 Mirrors N10/145 Vanity and washroom furniture |
Specification data - Bathroom mirrors
Form | Wall mounted. |
Materials | |
Frame | Polymer resin. |
Glazing | Plastics.Guidance for specification option: 3 mm Polycarbonate. |
Dimensions | 350 x 450 mm. Guidance for specification option: External dimensions.
|
Thickness | 3 mm. |
Fixing | M10. |
Fire performance | To BS 476, part 6. Guidance for specification option: Fire propagation and spread of flame. |
Durability | To ISO EN 19712-3, rated 5. Guidance for specification option: Durability, stain resistance, cigarette burns etc. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Fluoropolymer resin Polycarbonate |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
