Resan Infra-Red Sensor Control Kit
Verified by manufacturer 3 months ago
374596 Red Surround
374596 Red Surround
Touch-free infrared controls designed for use with taps, shower and WC.
Application
- Suitable for use with the washroom control system.
- Red surround typically used to indicate control for hot or premixed taps or showers.
- Blue surround typically used to indicate control for cold taps or showers.
- Silver surround typically used to indicate control WCs and urinals.
Description
Resan Infra-Red Sensor Control Kit for use with the Washroom Control System for activating taps, showers and WCs.
Features and benefits:
- Programmable range and run time.
- Hygienic touch-free operation.
- Anti-ligature design.

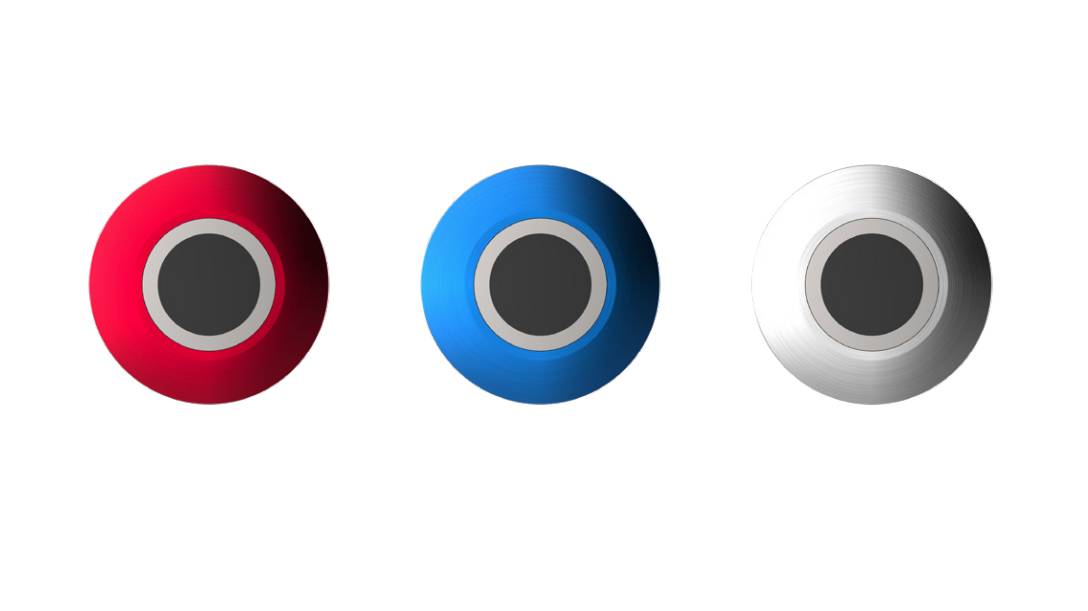

- Available in red, blue and silver.
General information
Color | Red Blue Silver |
Material | Aluminium |
Shape | Circle |
Length | 40 mm |
Width | 40 mm |
Height | 90 mm 500 mm |
Warranty description | One year |
Uniclass | |
CAWS | V90/430 Electrical accessories V90/430 Electrical accessories V90/430 Electrical accessories |
Specification data - Occupancy detectors
Sensor type | Infra-red. |
Nominal voltage | 12 V d.c. |
Detection method | Presence. |
Occupancy sensitivity | Adjustable. |
Range | Adjustable. |
Set-up | By Washroom Control System, 374572. |
Mounting | Wall. |
Ingress protection (minimum) | IP65. |
Equipment interconnectivity | |
Wired | Required. |
Radio-based | |
Sensor power supply | Washroom control system. |
Colour | Red surround. |
Width and height | 40 mm in diameter. |
Length | 5–90 mm. Guidance for specification option: Without spacer, 5–40 mm with spacer. |
Accessories | Not required. 100 mm extension. Guidance for specification option: Product code: 374575. Extension length: 115–190 mm. 200 mm extension. Guidance for specification option: Product code: 374576. Extension length: 115–290 mm. |
Sustainability data
Contains Red List materials | No |
Material | Aluminium |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
