Remote Alarm Unit
Verified by manufacturer 4 months ago
Remote Alarm Unit - ABS Plastic
Remote Alarm Unit - ABS Plastic
Remote alarm providing visual and audible warning of a leak or system fault.
Application
Suitable for mounting anywhere within the building and is connected back to the main Floodline Control Panel.
Description
The Floodline Remote Alarm unit provides a visual and audible warning of a leak or even a system fault. It is available as an industrial design in a surface-mounted ABS box, or as a flush-mounted brushed chrome version for areas which require the device to integrate into the decor.
Features and benefits:
- Two options available: surface-mounted ABS plastic box or flush-mounted brushed chrome plate.
- Industrial design.
- Provides visual and audible warning of a leak or system fault.
- Connects to the main Floodline® Control
- Panel alerts of the main Floodline® Control Panel status
- Alarm indicators show flashing red LED for leak or system fault
- Key switch to mute the audible alarm on the ABS model.
- Push button control to mute audible alarm on the chrome version.
- Alarms display continuously until corrected and reset at the main control panel.
General information
Color | Grey |
Finish | Chrome |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Rectangle |
Length | 57 mm |
Width | 142 mm 148 mm |
Height | 85 mm 88 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | W53/350 Remote indicators W53/350 Remote indicators |
Specification data - Remote indicators
Classification data | |
Enclosure | |
Material | ABS plastics. |
Colour | White. |
Plate | |
Material | |
Colour | |
Lens | |
Material | Polycarbonate. |
Colour | Red. Guidance for specification option:
|
Power supply | 12 V d.c., 37 mA fed from main panel. |
Dimensions | 85 x 142 x 57 mm. Manufacturer guidanceHeight x width x depth. |
Controls | Keyswitch mute. Auto reset - resets when main panel is reset. |
Fixing | Surface-mounted. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Acrylonitrile butadiene styrene (ABS) |
Literature

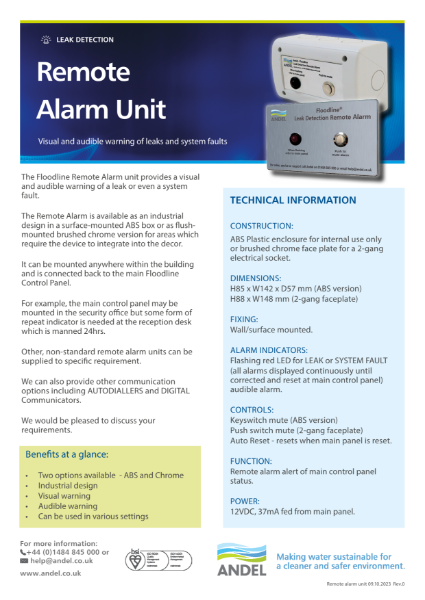

Remote Alarm Unit
