REIF DuraLink®
Verified by manufacturer 8 months ago

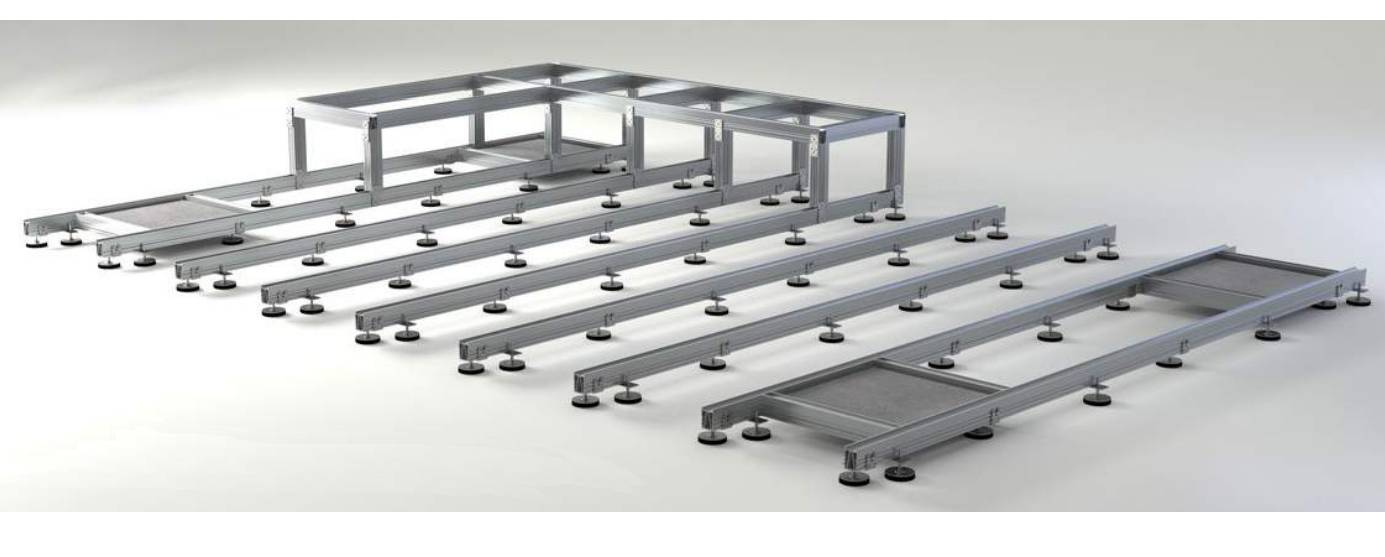

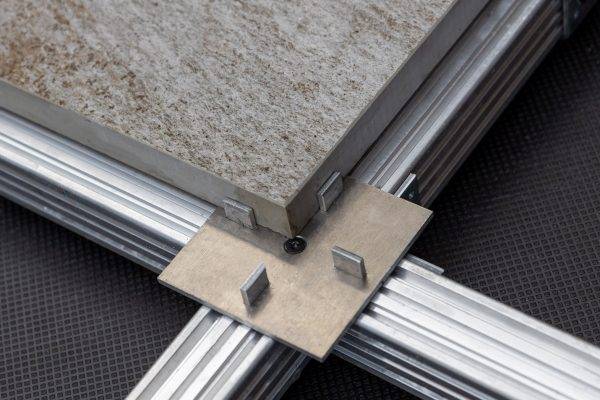

Fully adjustable aluminium decking and paving system.
Application
External decking and paving.
Description
A fully adjustable aluminium decking and paving solution that is precise, durable and fully adaptable. The REIF DuraLink product specification complies with the new UK Building Regulations on fire safety. Aluminium decking offers the perfect combination of strength, endurance, durability and corrosion resistance, and also benefits from a life-cycle measured in decades.
Class A-rated decking and external porcelain and concrete pavers can also be supplied.
Components:
DuraBeam; DuraSide pedestal; DuraBase pedestal; DuraClip Z 1; DuraClip Z 2; DuraFlip DuraFix Z 90; DuraFix Z 180; DuraFix Z Vario; DuraSpacer tab.
Features and benefits:
- Low density and low weight.
- High strength.
- Superior design capability.
- Corrosion resistance.
- Excellent thermal qualities.
- Sustainable and easy to recycle.
- Very low build-up possibilities starting from 40 mm.
General information
Material | Aluminium |
Uniclass | |
CAWS | G30/110 Metal profiled sheet decking G30/110 Metal profiled sheet decking J21/85 Precast concrete paving slabs J21/467 Support system for precast concrete paving slabs J31/377 Support system for paving slabs or tiles J31/375 Paving tiles J31/80 Precast concrete paving slabs J31/370 Precast concrete paving slabs J41/90 Precast concrete paving slabs Q37/460 Support pedestals Q37/160 Paving and decking systems Q55/110 Deck Q25/480 Support pedestals J41/467 Support system for precast concrete paving slabs J42/467 Support system for precast concrete paving slabs Q55/395 Support pedestals |
Specification data - Decking and paving pedestals
Classification data | |
Pedestal type | Adjustable. Guidance for specification option: See Components below for full list. |
Grade | 500 kg. Guidance for specification option: Per pedestal. |
Material | Aluminium. |
Adjustment | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Accessories | None. Decking. External porcelain pavers. External concrete pavers. Manufacturer guidanceAll options are class A2 fire-rated. Consult manufacturer for details. |
Components | Manufacturer guidanceInsert requirements or drawing reference. System to comprise any combinations of the following:
|
Sustainability data
Material | Aluminium |
Literature
REIFDuraLinkDataSheet Alfresco Floors
