REGUPOL sonus Curve 8 - Recycled Rubber

Verified by manufacturer 6 days ago

CMS Danskin Acoustics

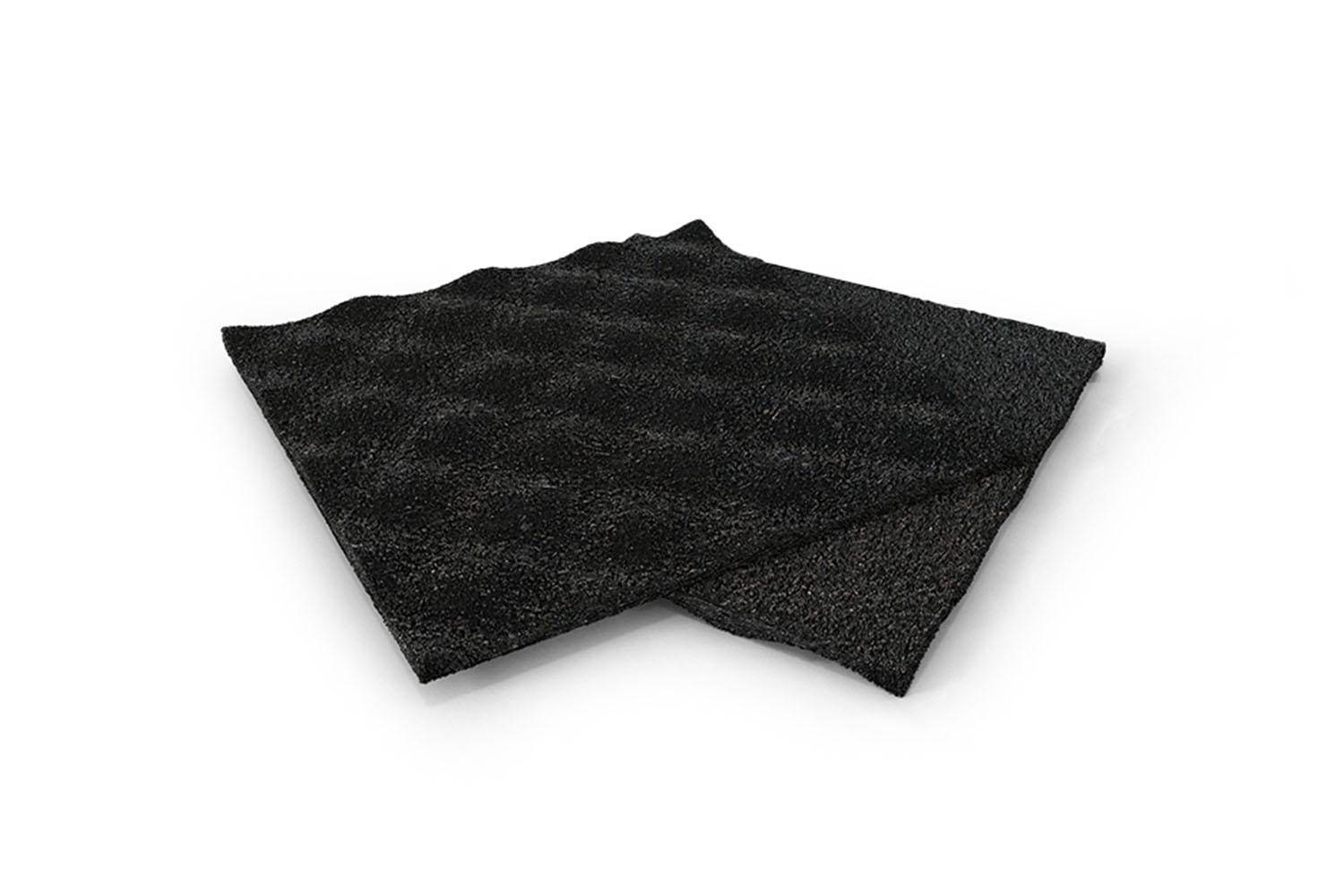

Recycled tyre crumb designed to isolate screeds.

Jump to:
+44 (0)1925 577711 Website

Application

REGUPOL sonus curve 8 has been developed to offer enhanced isolation and impact sound performance in:

  • Apartments.
  • Hospitals.
  • Hotels.
  • Retail.
  • Schools.

Description

Recycled tyre crumb product designed to isolate screeds from the main structure of the building, reducing impact energy generated by general footfall.

REGUPOL sonus curve 8 offers enhanced acoustic performance at loads up to and including 30 kN/m² and having a dimpled surface on one side increases air movement, further aiding overall performance.

Features and benefits:

  • PUR-bonded recycled rubber fibres.
  • Dimpled profile on the underside.
  • Excellent impact and airborne performance.
  • Offers long term performance without collapse or 'bottoming' out under high point loads.
  • Resistant to ageing and deformation.
  • Quick and easy to install.
  • Minimises construction heights.
  • Mildew and moisture proof.
  • Manufactured using recycled materials – the proportion of pre and post-consumer content is listed in the products Green Circle Certificate which is available upon request.
  • Manufacturing facility certified to ISO 9001, ISO 45001, ISO 14001, ISO 50001.

Certification:

  • REGUPOL sonus curve 8 meets the requirements of Approved Document E (England and Wales), Technical Booklet G (Northern Ireland) and Section 5 of the Building Regulations (Scotland).
  • Cradle to Cradle Certified® is a registered trademark of the Cradle to Cradle Products Innovation Institute.
  • Manufacturer EPD available upon request.
  • Green Circle Certified.

General information

Color

Black

Finish

Smooth

Material

Polyurethane (PUR)

Rubber

Shape

Other

Length

13000 mm

Width

1150 mm

Height

8 mm

Uniclass

Pr_25_57_06_71 Resilient layer insulationPrimary

CAWS

M10/295 Floating construction (thin sheet impact sound insulation)

M10/40 Floating construction

Specification data - Resilient layer insulation

Third-party certification

Cradle to Cradle Certified® .
Green Circle Certified.

Material

PUR-bonded recycled rubber fibres.

Density

Approx. 575 kg/m³.

Thickness

8 mm.

Sound insulation rating

-

Manufacturer guidance

Refer to manufacturer's literature for floor assemblies and acoustic values.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Manufactured using recycled materials. Consult manufacturer for details.

Roll width

1150 mm.

Roll length

13 m.

Weight

Per roll: 57 kg.
Per m²: 3.6 kg/m².

Load

30 kN/m²

Manufacturer guidance

Maximum surface load.

Dynamic stiffness

To DIN EN 29052-1, s’t ≤30 MN/m³.

Thermal conductivity

To DIN EN 12667, λ = 0.075 W/(mK).

Thermal resistance (R-value)

To DIN EN 12667, 0.08 (m²K)/W.

Temperature resistance

-20 to +60°C.

VOC content

Compliant with EU-LCI list and German AgBB scheme, A+ as per décret n°2011-321.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Polyurethane (PUR)
Rubber

Recyclability

100% recyclable
