REGUPOL sonus core 15-S for Timber Construction
Verified by manufacturer 2 months ago
ISO 45001 Health and Safety Management
Certificate type
EPD
Certificate type
ISO 9001 Quality Management
Certificate type

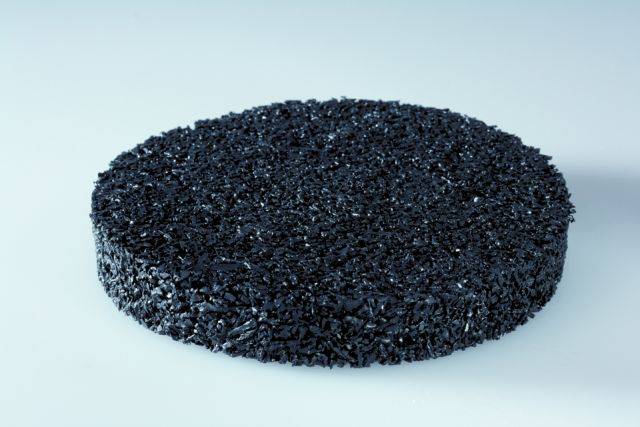

Very high load resilient layer, manufactured from recycled tyre crumb.
Application
For timber construction.
Particularly suited to heavily loaded areas in:
- Luxury apartments
- Penthouses
- Hotels
- Schools
- Hospitals
- Libraries
- Retail
- Music studios
Description
A recycled crumb product specifically developed for heavy load bearing areas where acoustic performance is critical. A sustainable and high performing screed isolation solution, Sonus Core 15-S delivers the greatest load bearing capacity in the CMS Danskin Acoustics underscreed range.
Sonus Core 15-S meets the requirements of Approved Document E (England & Wales), Technical Booklet G (Northern Ireland) and Section 5 of the Building Regulations (Scotland).
Features and benefits:
- Excellent impact and airborne performance.
- Offers long term performance without collapse or “bottoming” out under high point loads.
- Resistant to ageing and deformation.
- Quick and easy to install.
- High quality and exact material thickness guaranteed.
- Mildew and moisture proof.
- Product manufactured using recycled materials and 100% recyclable.
General information
Color | Black |
Finish | Smooth |
Material | Rubber |
Shape | Rectangle |
Length | 10000 mm |
Width | 1250 mm |
Height | 15 mm 10 mm |
Warranty description | One year Other |
Uniclass | |
CAWS | K21/111 Wood floating floor K21/146 Laminate flooring K21/115 Wood laminate flooring K21/145 Composite laminate flooring K21/10 Wood laminate flooring K21/20 Composite laminated flooring |
Product range |
Specification data - Resilient layer insulation
Material | Recycled rubber mat. |
Density | 575 kg/m³. |
Thickness | 15 mm. |
Fire performance | To DIN EN 13501-1, Class E. |
Sound insulation rating | To BS EN ISO 140-8:1998, ∆Lw 20 dB. |
LoadBearingCapacity | 150 kN/m² (maximum). |
Temperature resistance | -20 to +60° C. |
Thermal resistance (R-value) | To DIN EN 12667, 0.17 (m2K)/W. |
ThermalConductivity | To DIN EN 12667, λ = 0.09 W/(mK). |
Sustainability data
Country of product manufacture | Germany |
Material | Rubber |
Recyclability | 100% recyclable |
Third party certifications
Third party certifications
ISO 45001 Health and Safety Management
ISO 45001:2018
EPD
REGUPOL rolls and sheets - EPD
ISO 9001 Quality Management
SIG ISO 9001
Literature
REGUPOL sonus core 10-S,15-S Timber Technical Data Sheet
