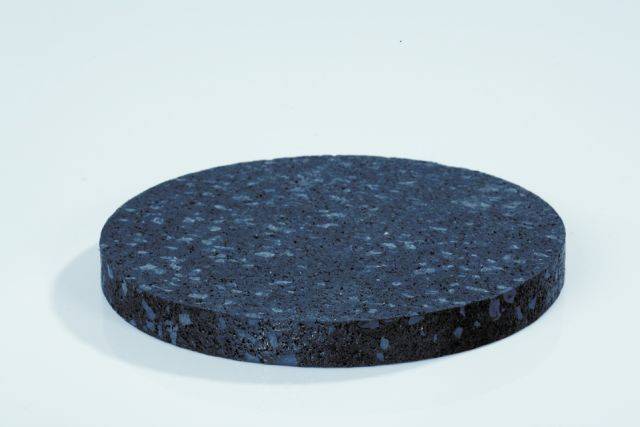

Name: Regupol® RAV
Brand: CMS Danskin Acoustics
SKU: ocFvnJZNQMbgQLPEGhPQFy

Product reference:

– Regupol® RAV100:

Suitable for light loading, such as floating floors, lift motors, pumps inertial pits and air conditioning units.

Dimensions: 1250 mm x 10 m. Strips and pads available on request.

Permanent static load range: 0.05 N/mm².

Compression set (DIN 53572, after 50% deformation for 72 hours): 4.1%.

Tensile strength (DIN 53571): 0.3 N/mm².

Elongation at break (DIN 53571): 60%.

Tear resistance (DIN 53515): 3 N/mm.

Static modulus of elasticity (similar to EN 826): 0.1–0.44 N/mm².

Dynamic modulus of elasticity (DIN 53513): 0.15–1.1 N/mm².

– Regupol® RAV200:

Suitable for light to medium loading, such as lift motors, pumps, refrigeration units and machinery with out of balance forces or vertical shock loads.

Dimensions: 1250 mm x 10 m. Strips and pads available on request.

Permanent static load range: 0.1 N/mm².

Compression set (DIN 53572, after 50% deformation for 72 hours): 4%.

Tensile strength (DIN 53571): 0.4 N/mm².

Elongation at break (DIN 53571): 70%.

Tear resistance (DIN 53515): 3.4 N/mm.

Static modulus of elasticity (similar to EN 826): 0.8–0.9 N/mm².

Dynamic modulus of elasticity (DIN 53513): 0.6–2.2 N/mm².

– Regupol® RAV300:

Suitable for plinth bases and structural isolation of perimeter walls.

Dimensions: 1000 x 500 mm. Strips and pads available on request.

Permanent static load range: 0.1 N/mm².

Compression set (DIN 53572, after 50% deformation for 72 hours): 5.4%.

Tensile strength (DIN 53571): 0.33 N/mm².

Elongation at break (DIN 53571): 50%.

Tear resistance (DIN 53515): 2.3 N/mm.

Static modulus of elasticity (similar to EN 826): 0.25–0.75 N/mm².

Dynamic modulus of elasticity (DIN 53513): 0.6–2.9 N/mm².

– Regupol® RAV400:

Suitable for heavy plant, machinery with vertical shock loads and structural isolation.

Dimensions: 1250 mm x 10 m. Strips and pads available on request.

Permanent static load range: 0.25 N/mm².

Compression set (DIN 53572, after 50% deformation for 72 hours): 4.6%.

Tensile strength (DIN 53571): 0.65 N/mm².

Elongation at break (DIN 53571): 65%.

Tear resistance (DIN 53515): 6.0 N/mm.

Static modulus of elasticity (similar to EN 826): 1.2–1.9 N/mm².

Dynamic modulus of elasticity (DIN 53513): 1.1–4.4 N/mm².

– Regupol® RAV500:

Suitable for structural isolation, foundation isolation and road and construction

Dimensions: 1250 mm x 8 m. Strips and pads available on request.

Permanent static load range: 0.8 N/mm².

Compression set (DIN 53572, after 50% deformation for 72 hours): 5.9%.

Tensile strength (DIN 53571): 0.9 N/mm².

Elongation at break (DIN 53571): 85%.

Tear resistance (DIN 53515): 8 N/mm.

Static modulus of elasticity (similar to EN 826): 2.5–5.5 N/mm².

Dynamic modulus of elasticity (DIN 53513):3–8.8 N/mm².

– Regupol® RAV600:

Suitable for heavy duty machinery, structural isolation and foundation isolation.

Dimensions: 1250 mm x 8 m. Strips and pads available on request.

Permanent static load range: 1.5 N/mm².

Compression set (DIN 53572, after 50% deformation for 72 hours): 5%.

Tensile strength (DIN 53571): 2.2 N/mm².

Elongation at break (DIN 53571): 120%.

Tear resistance (DIN 53515): 16 N/mm.

Static modulus of elasticity (similar to EN 826): 9.8–14 N/mm².

Dynamic modulus of elasticity (DIN 53513): 4–18.5 N/mm².

Uniclass	Pr_25_57_06_71 Resilient layer insulationPrimary
CAWS	E20/200 Proprietary underslab insulation E20/30 Underslab insulation K21/10 Wood laminate flooring K21/111 Wood floating floor K21/115 Wood laminate flooring K21/145 Composite laminate flooring K21/146 Laminate flooring K21/20 Composite laminated flooring M10/295 Floating construction (thin sheet impact sound insulation) M10/40 Floating construction

Product Reference	Regupol® RAV100 Regupol® RAV200 Regupol® RAV300 Regupol® RAV400 Regupol® RAV500 Regupol® RAV600
Thickness	6 mm Guidance for specification option: RAV400 and RAV500. 10 mm Guidance for specification option: RAV200, RAV400, RAV500 and RAV600. 15 mm Guidance for specification option: RAV200. 17 mm Guidance for specification option: RAV100, includes dimples to one side. 50 mm Guidance for specification option: RAV300. 100 mm Guidance for specification option: RAV300. ___ mm Guidance for specification option: Other thicknesses available on request.

Standard product features	Composition: Polyurethane bound, recycled rubber granulate. 100% recyclable.
