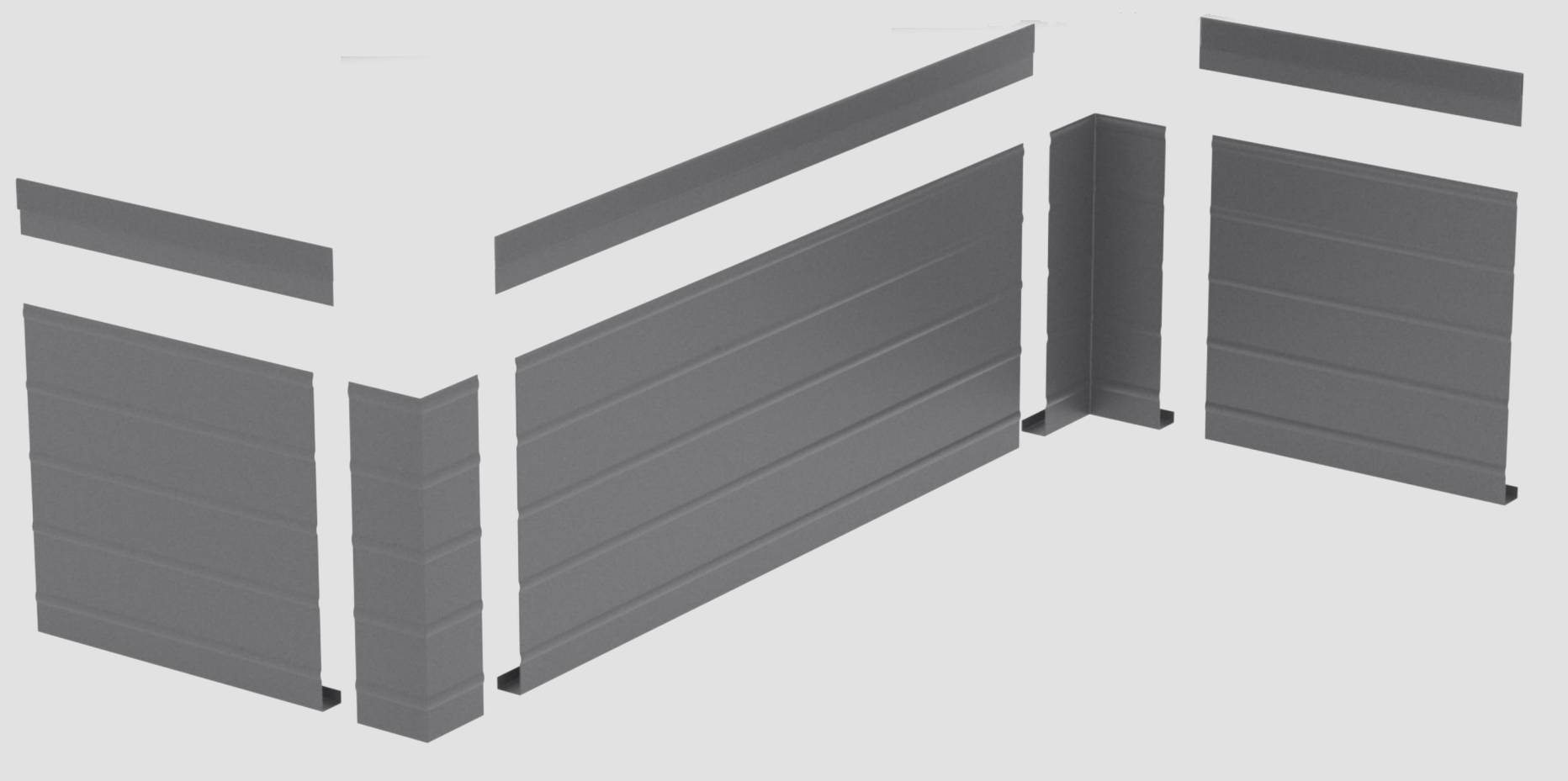

Regular Fascia - Fascia System

Verified by manufacturer 4 months ago

Seamless Aluminium Group Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Regular ribbed pattern fascia system designed and manufactured to provide the essential architectural features appropriate to any designed building.

Jump to:
+44 (0) 121 765 4355 Website

Application

Fascia systems designed and manufactured to provide the essential architectural features appropriate to any designed building.

Description

Seamless Aluminum Groups Fascia Systems are designed and manufactured to provide the essential architectural features appropriate to any designed building.


Features and benefits:

  • Ribbed design.
  • Available in a range of shapes and sizes.
  • Manufactured on site in Ballyshannon, Co Donegal in marine grade sheet aluminium to ensure its high quality.
  • Life expectancy of 40 years or more (under rural and suburban conditions).
  • Special requirements can be accommodated.
  • Matching soffits available, specified separately.

General information

Color

Silver

White

Black

Grey

Other

Finish

Mill

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Height

Bespoke

Warranty description

20 year

Uniclass

Pr_65_50_35_02 Aluminium combined fascias, soffits and guttersPrimary
Pr_35_90_30_01 Aluminium flashings

CAWS

R10/321 Combined fascia, soffit and gutter

R10/13 Combined fascia, soffit and gutter

Specification data - Aluminium combined fascias, soffits and gutters

Form

Fascia.

Fascias

-

Profile

Rectangular with ribbed detail.

Size

Guidance for specification option:

Insert requirements:

  • Length: Up to 4 m.
  • Height: 150–406 mm.

Manufacturer guidance

Lower lip: 20 mm deep; 9 mm high.

Thickness or gauge

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Finish

Mill finish.

Powder coating to BS EN 12206-1.

Guidance for specification option:

Insert colour requirements below.

Matt as standard; consult manufacturer and insert requirements if alternative finish is required.

Colour

Natural.

Guidance for specification option:

Mill finish only.

RAL 9016 Traffic White.

Guidance for specification option:

Standard colour, powder-coated finish only.

RAL 9005 Jet Black.

Guidance for specification option:

Standard colour, powder-coated finish only.

RAL 7015 Slate Grey.

Guidance for specification option:

Standard colour, powder-coated finish only.

RAL 7016 Anthracite Grey.

Guidance for specification option:

Standard colour, powder-coated finish only.

RAL 9005 Ripple Black.

Guidance for specification option:

Standard colour, powder-coated finish only.

RAL, other.

Guidance for specification option:

Powder-coated finish only; to any RAL or Classic BS colour.

Consult manufacturer for options and insert requirements.

Film thickness (minimum)

Manufacturer's standard.

Guidance for specification option:

Not applicable for mill finish.

Integral accessories

Internal mitres.

External mitres.

Undercill.

Manufacturer guidance

Omit as required.

Fire rating (to BS EN 13501)

Non-combustible to EN 13501-1:2007 + A1:2009.

Guidance for specification option:

Coefficient for thermal expansion: -0.000023°C.

Melting point approximately 660°C.

Grade

Aluminium EN AW-1050A H14.

Guidance for specification option:

Manufactured from sheet aluminium to EN 15088:2005, EN 485 and EN 1396.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Ireland

Recyclability

This can be fully recycled

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
