REDUC Foundation
Application

Can be used throughout the building, including kitchens and bathrooms. Applications include:

  • Flats and apartments.
  • Hotels and hostels.
  • Sheltered housing.
  • Social housing.
  • Nursing and care homes.
  • Student accommodation.
  • Shops.
  • Offices.

Description

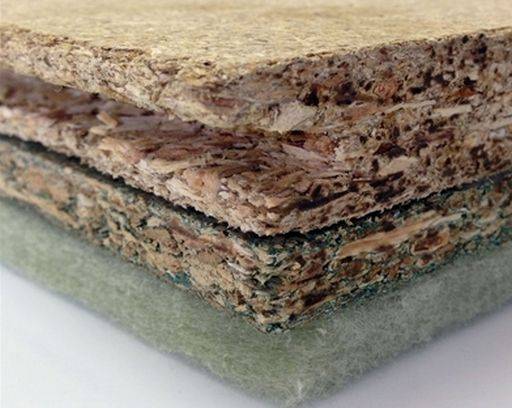

High performance structural or overlay acoustic flooring boards designed to damp vibration and attenuate airborne and impact noise passing through floors. Comprises of two layers of moisture-resistant chipboard, separated by visco-elastic sound damping strips, with an acoustic felt on the underside.

Features and benefits:

  • Moisture-resistant upper surface.
  • When used as an overlay on existing floors the acoustic felt on the underside will contour over minor irregularities on the floor surface.
  • Suitable for use on new and existing timber and concrete floors.
  • Suitable for use with ceramic tiles when used in conjunction with a DITRA mat layer.

Components:

  • Tongue and groove P5 chipboard (REDUC® Foundation 35: 18 mm-thick; REDUC® Foundation 39: 22 mm-thick).
  • Visco-elastic strips.
  • 9 mm-thick chipboard.
  • Polyester felt.

Applications:

Can be used throughout the building, including kitchens and bathrooms. Applications include:

  • Flats and apartments.
  • Hotels and hostels.
  • Sheltered housing.
  • Social housing.
  • Nursing and care homes.
  • Student accommodation.
  • Shops.
  • Offices.

Acoustic performance:

Consult manufacturer's literature for details. Subject to REDUC® products being used within recommended flooring constructions, and when fitted as a structural floor.

General information

Material

mositure resistant chipboard seperated by viscous elastic sound dampening strips with an acoustic felt underside

Size

2400 x 600 mm

Uniclass 2015

Pr_25_71_97_60 ParticleboardsPrimary

CAWS

K11/125 Battened particleboard floating floor

K11/20 Battened particleboard floating floor

K11/225 Particleboard floating floor

K11/245 Cement bonded particleboard floating floor

K11/25 Particleboard floating floor

K11/275 Acoustic separating floor system

K11/30 Particleboard flooring

Specification data - Particleboards

Product Reference

REDUC® Foundation 35

REDUC® Foundation 39

Standard product features

Board size (l x w):

2400 x 600 mm.

Laid area per board:

1.44 m².

Product Options

Product reference:

- REDUC Foundation 35:

For laying on to 450 mm joist centres.

  • Thickness: 35 mm.
  • Weight: 20.5 kg/m² (29.5 kg per board).

- REDUC Foundation 39:

For laying on to 600 mm joist centres.

  • Thickness: 39 mm.
  • Weight: 23.6 kg/m² (34.0 kg per board).

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 1 1.3
Revit
Revit 2015 1 1.3
Download now from NBS National BIM Library
Similar products from H & H Acoustic Technologies
