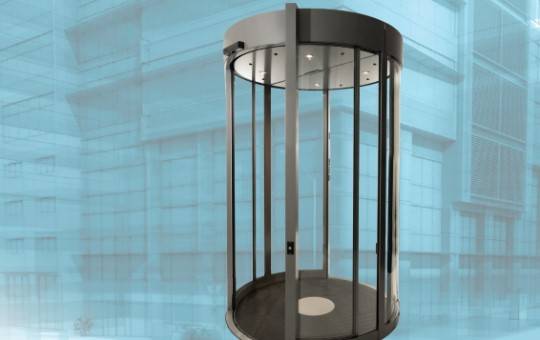

Record R65 Security Portal

The Record R65 Security Portal is a 2-wing interlock security door with 4 security levels to choose from to prevent unauthorised access to secure areas.

The two-wing record R 65 Security Portal has one of the fastest opening and closing speeds of any security portal, ensuring a high flow rate of five to seven people per minute. With a larger, more comfortable, compartment this mantrap security door offers barrier-free access to all, including those in wheelchairs or carrying equipment.

Available with RC2/ RC3 burglar resistance, the record R 65 Security Portal can be integrated with any access control system.

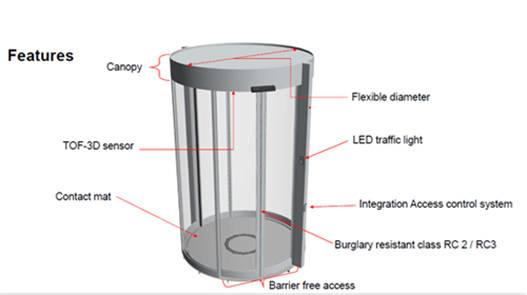

Features and benefits:

• Wider, spacious compartment for a more comfortable user experience.
• Two-wing security portal for faster throughput of 5-7 people per minute.
• Quick return on investment by the redeployment of security staff.
• Protection against burglar attacks with RC2/ RC3 properties and burglar proof glass.
• Almost all access control systems can be integrated to prevent tailgating and piggybacking.
• Can be connected to the Building Management System if required. Remote control and access available via smart devices.
• Fully DDA compliant.

About the record R 65 Security Portal

The record R 65 Security Portal can be integrated with a RFID reader, fingerprint, vein or iris scanner or face recognition to identify and authenticate users.

Certified to EN 1627 class RC2 and RC3 this mantrap security door provides effective protection against burglar attacks. The record R 65 Security Portal can also be used in conjunction with a smart device, such as i-record, for quick and easy door-commissioning and trouble-shooting.

This two-wing mantrap security door offers four different security levels to suit all requirements.

Superior: Access only via access control system + time-of-flight 3D camera and lock function for monitoring of entrances and exits.

High: Access only via access control system + time-of-flight 3D camera for monitoring tailgating and piggybacking attempts.

Medium: Access only via access control system + contact mat+ presence sensors.

Low: Access only via control system + presence sensors.

Options

This mantrap security door system offers a versatile range of interfacing to allow the following options:

• Burglar resistance according to class RC 2/ RC 3.
• LED traffic light.
• Fail-safe/ fail-secure.
• Available in stainless steel, powder-coated aluminium or anodized aluminium.
• Prefabricated floor on plinth.
• Inground floor ring.

Benefits

• Wider, spacious compartment for a more comfortable user experience.
• 2-wing security portal for faster throughput of 5-7 people per minute.
• Quick return on investment by the redeployment of security staff.
• Protection against burglar attacks with RC2/RC 3 properties and burglar proof glass.
• Almost all access control systems can be integrated to prevent tailgating and piggybacking.
• Can be connected to the Building Management System, if required. Remote control and access available via smart devices.
• Fully DDA compliant.
