Record R65 Security Portal

Verified by manufacturer 2 months ago

Finished floor installation

record uk ltd Variant:
Third party certifications:
  • Achilles Information Limited - Procurement Management

    Achilles Information Limited - Procurement Management

    Certificate type

  • ADSA

    ADSA

    Certificate type

  • ISO 14001:2015

    ISO 14001:2015

    Certificate type

  • ISO 45001:2018

    Certificate type

  • ISO 9001:2015

    ISO 9001:2015

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

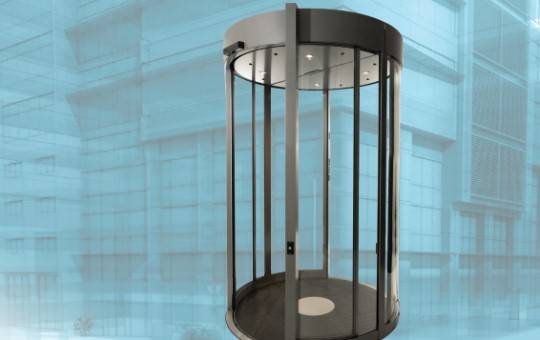

The record R 65 Security Portal is a two-wing interlock security door with four security levels to choose from to prevent unauthorized access to secure and sensitive areas.

Jump to:
+44 (0)1698 376411 www.recorduk.co.uk

Application

Suitable for applications such as financial institutions, commercial buildings, airports, government, critical infrastructure and casinos, this mantrap security door can also be used as an external entrance door.

The portal is also suitable for disabled access with wheelchairs and can also be integrated into the external facade.

Description

The two-wing record R 65 Security Portal has one of the fastest opening and closing speeds of any security portal, ensuring a high flow rate of five to seven people per minute. With a larger, more comfortable, compartment this mantrap security door offers barrier-free access to all, including those in wheelchairs or carrying equipment.


Available with RC2/ RC3 burglar resistance, the record R 65 Security Portal can be integrated with any access control system.

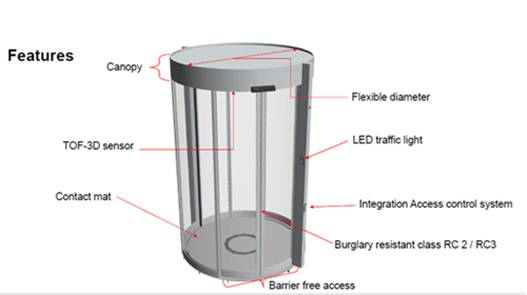

Features and benefits:

  • Wider, spacious compartment for a more comfortable user experience.
  • Two-wing security portal for faster throughput of 5-7 people per minute.
  • Quick return on investment by the redeployment of security staff.
  • Protection against burglar attacks with RC2/ RC3 properties and burglar proof glass.
  • Almost all access control systems can be integrated to prevent tailgating and piggybacking.
  • Can be connected to the Building Management System if required. Remote control and access available via smart devices.
  • Fully DDA compliant.


About the record R 65 Security Portal

The record R 65 Security Portal can be integrated with a RFID reader, fingerprint, vein or iris scanner or face recognition to identify and authenticate users.


Certified to EN 1627 class RC2 and RC3 this mantrap security door provides effective protection against burglar attacks. The record R 65 Security Portal can also be used in conjunction with a smart device, such as i-record, for quick and easy door-commissioning and trouble-shooting.


This two-wing mantrap security door offers four different security levels to suit all requirements.

Superior: Access only via access control system + time-of-flight 3D camera and lock function for monitoring of entrances and exits.

High: Access only via access control system + time-of-flight 3D camera for monitoring tailgating and piggybacking attempts.

Medium: Access only via access control system + contact mat+ presence sensors.

Low: Access only via control system + presence sensors.


Options for the record R65 Security Portal


This mantrap security door system offers a versatile range of interfacing to allow the following options:

  • Burglar resistance according to class RC 2/ RC 3.
  • LED traffic light.
  • Fail-safe/ fail-secure.
  • Available in stainless steel, powder-coated aluminium or anodized aluminium.
  • Prefabricated floor on plinth.
  • Inground floor ring.

General information

Color

Silver

Other

Any RAL or Eloxal colour.

Clear

Beige

Black

Show more

Finish

Powder-coated

Anodized

Material

Steel

Stainless steel

Aluminium

Shape

Other

Width

1600 mm

Minimum.

2500 mm

Maximum.

Height

2200 mm

Passage height minimum.

2500 mm

Passage height maximum.

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary
Pr_30_59_24_37 High-security doorsets

CAWS

L20/55 Doorsets

L20/520 Sliding doors

L20/490 Automatic doors

L20/480 Doorsets

Specification data - Sliding door and partition sets

Performance

External.

Internal.

Arrangement

Motorized full height security booth.

Operation

Powered.

Hardware

Electro-mechanical door leaf locking.

Accessories

Not required.

Fail safe/ fail secure.

LED traffic light.

Burglar resistance

Not possible with RC 2 / RC 3.

Not required.

Height

  • Passage height: 2200-2500 mm.
  • Canopy height under passage height: 250-1000 mm.


Insert requirements or drawing reference number.

Security performance

Low.

  • Access control system.

Medium.

  • Access control system.
  • Presence detection via contact mat.
  • Tailgating.

Hight.

  • Access control system.
  • TOF 3D camera.
  • Tailgating.
  • Piggybacking.

Superior.

  • Access control system.
  • TOF 3D camera.
  • Contact mat.
  • Tailgating.
  • Piggybacking.

Frame

Stainless steel.

Anodized aluminium.

Powder-coated aluminium.

Insert colour code or colour requirements if applicable.

External diameter

1600 mm.

Passage width: 1005 mm.

1800 mm.

Passage width: 1142 mm.

2000 mm.

Passage width: 1278 mm.

2200 mm.

Passage width: 1414 mm.

2500 mm.

Passage width: 1619 mm.

Show more

Standards

To EN 16005, DIN EN 1627.

Literature

record R 65 Security Portal Datasheet

record R 65 Security Portal Datasheet

Third party certifications

Achilles Information Limited - Procurement Management

Achilles Information Limited - Procurement Management

Achillies Building Confidence

ADSA

ADSA

ADSA Membership

ISO 14001:2015

ISO 14001:2015

British Assessment Bureau - ISO 14001:2015

ISO 45001:2018

ISO 45001:2018

British Assessment Bureau - ISO 45001:2018

ISO 9001:2015

ISO 9001:2015

British Assessment Bureau ISO 9001:2015

CHAS

CHAS

CHAS Elite

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor EX1256

QA Certificate

QA Certificate

Acclaim SSIP - March 23

QA Certificate

QA Certificate

Altius SSIP Cert EXP 7.3 2023

Additional certifications:

  • IFT Rosenheim: Resistance class RC 2
