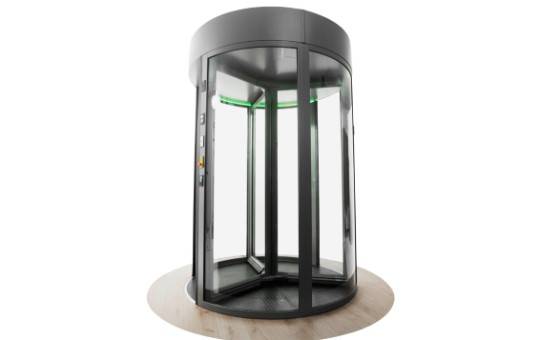

Record K32 ST Security Revolving Door

Verified by manufacturer 19 days ago

Record U.K. Limited Third party certifications:
  • Achilles Information Limited - Procurement Management

    Achilles Information Limited - Procurement Management

    Certificate type

  • ADSA

    ADSA

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

The record K32 ST Security Revolving Door is a three-wing high security door which controls and monitors access to secure, sensitive areas.

Jump to:
+44 (0)1698 376411 Website

Application

Suitable for buildings with a lower flow rate and a need for added security, where it is crucial to prevent unauthorized persons from entering. Ideal for areas such as financial, military, aviation and government buildings.

Description

A modular product, the record K32 ST Security Revolving Door allows the integration of almost all common access control and identification systems and reports events to the building management system, when necessary. Intelligent sensors monitor the entry and exit of this high security door to detect security breaches including tailgating and piggybacking.


This three-wing security revolving door with its wider, more comfortable compartments is best suited to low traffic environments where it can handle a people flow rate of 2 x 15 persons per minute.


The record K32 ST Security Revolving Door can be integrated with a RFID reader, fingerprint, vein or iris scanner or face recognition to identify and authenticate users.


Certified to EN 1627 class RC2 and RC3 this high security door provides effective protection against burglar attacks. The record K32 ST Security Revolving Door can also be used in conjunction with a smart device, such as i-record, for quick and easy door-commissioning and trouble-shooting.


Features and benefits:

  • Wider, spacious compartments for a more comfortable user experience.
  • Protection against burglar attacks with RC2/ RC3 properties and burglar proof glass.
  • Almost all access control systems can be integrated to prevent tailgating and piggybacking.
  • Can be connected to the Building Management System, if required. Remote control and access available via smart devices.


Security Levels - record K32 ST Security Revolving Door:

This three-wing security revolving door offers a range of security levels to suit all requirements.

High: Access only via access control system + time-of-flight 3D camera for monitoring tailgating and piggybacking attempts.

Medium: Access only via access control system + contact mat+ presence sensors.

Low: Access only via control system + presence sensors.


Options for the record K32 ST Security Revolving Door:

​​​​​​​This high security door system offers a versatile range of interfacing to allow the following options:

  • LED access signalling by means of signal light.
  • LED access signalling in ceiling.
  • Night lock system (manual/ automatic).
  • Emergency stop switch.
  • Voice module.

General information

Color

Silver

Other

Guidance for specification option:

Any RAL or Eloxal colour.

Clear

Beige

Black

Show more

Finish

Powder-coated

Anodized

Material

Stainless steel

Steel

Aluminium

Shape

Circle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_04 Automatic revolving doorsetsPrimary

CAWS

L20/55 Doorsets

L20/495 Automatic revolving doors

H11/135 Doors

Specification data - Automatic revolving doorsets

Standard

To DIN EN 1627.

Configuration

Three-wing.

Materials and finishes

-

Doors

Stainless steel.

Steel, powder-coated.

Steel, anodized.

Aluminium.

Brass.

Drum walls

Stainless steel.

Steel, powder-coated.

Steel, anodized.

Aluminium.

Brass.

Glazing

-

Type

-

Manufacturer guidance

Burglar-proof glass P4A or P5A.

Activation and control system

-

Type

RFID reader.

Fingerprint scanner.

Vein scanner.

Iris scanner.

Face recognition.

Safety devices

Fail safe/ fail secure to EN 16005.

Locking mechanism

Manual.

Guidance for specification option:

The door can be operated manually, e.g. to perform maintenance work.

Automatic.

Guidance for specification option:

  • Optionally, the door can also be operated in automatic mode.
  • Activation sensors (radar) recognize people who want to enter or leave the building and start the movement of the door.

Security automatic.

Guidance for specification option:

  • Successful authorization via an access control system activates the movement of the door and allows the person to pass through.
  • If unauthorized entry is recognized while the door is revolving, the door will revolve backwards and move to the home position.

Locked.

Guidance for specification option:

The door is blocked and electromechanically locked.

Accessories

Not reqiured.

Roof design.

Guidance for specification option:

Weather roof or similar.

Voice module.

Emergency stop switch.

OutsideDiameter

1600–2500 mm.

Guidance for specification option:

Insert requirement.

Passage height

2200–2500 mm.

Guidance for specification option:

Insert requirement.

Passage width

699–1627 mm.

Guidance for specification option:

Insert requirement.

Capacity

1 x 15, 2 x 15 persons/hour (maximum).

Guidance for specification option:

In one direction.

Canopy height

Guidance for specification option:

Insert requirement, 300–1000 mm.

Manufacturer guidance

Under passage height.

Burglar resistance

RC2.

RC3.

Night shield

Manual.

Automatic.

Manufacturer guidance

Night lock system.

LED lighting

LED access signalling by signal light.

LED access signalling in ceiling.

Security level

Low.

Guidance for specification option:

  • Access only via control system + presence sensors.
  • Tailgating prevention: No.
  • Piggybacking prevention: No.

Medium.

Guidance for specification option:

  • Access only via access control system + contact mat+ presence sensors.
  • Tailgating prevention: Yes.
  • Piggybacking prevention: No.

High.

Guidance for specification option:

  • Access only via access control system + time-of-flight 3D camera for monitoring tailgating and piggybacking attempts.
  • Tailgating prevention: Yes.
  • Piggybacking prevention: Yes.

Manufacturer guidance

  • Tailgating: An unauthorized person follows an authorized person in the following segment.
  • Piggybacking: An authorized person follows an authorized person in the same segment.

Access control

One-way.

Guidance for specification option:

Only entry is monitored and leaving the security area is possible without monitoring.

Two-way.

Guidance for specification option:

Entry and leaving the security area is monitored.
