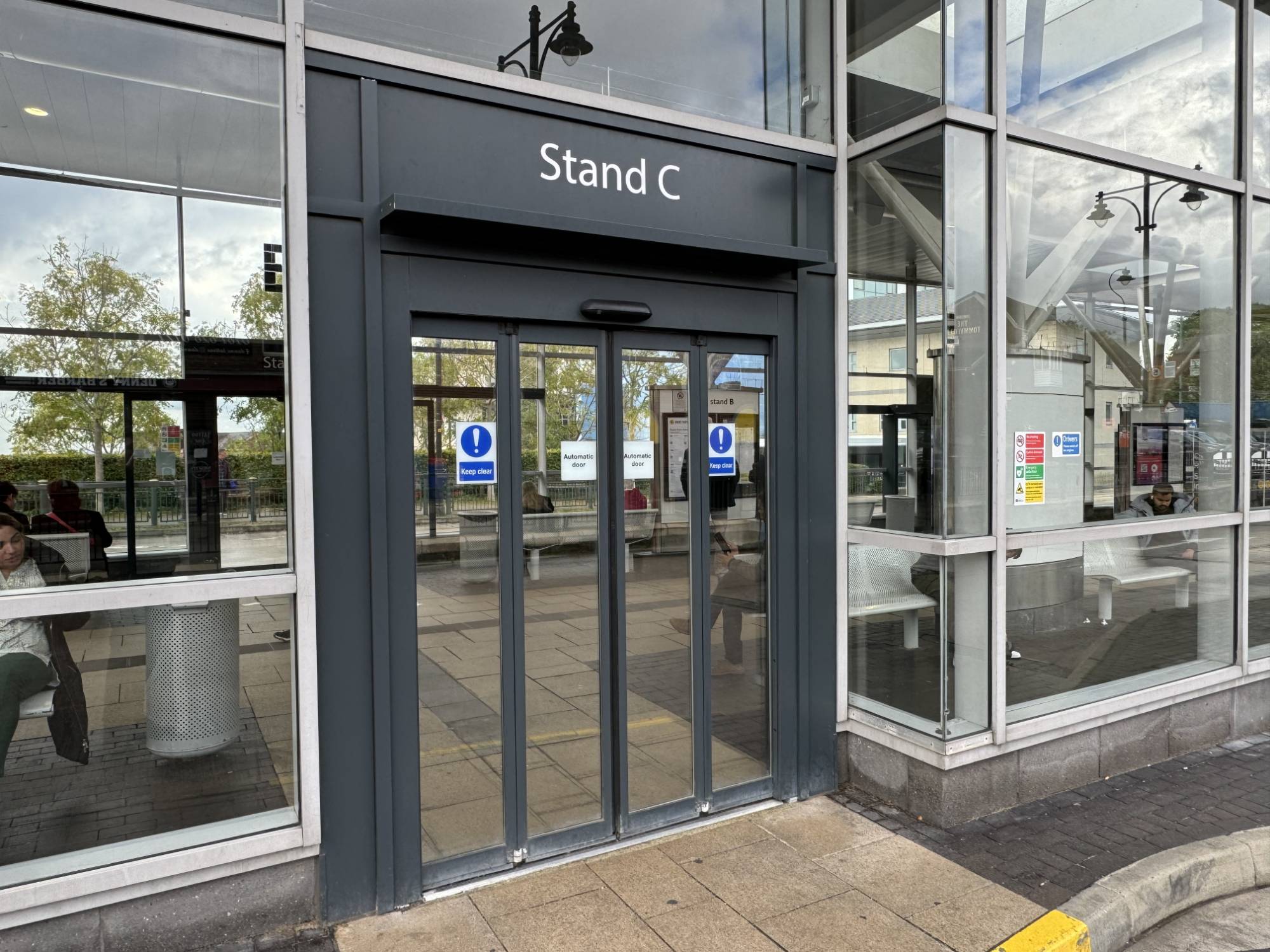

Record FTA 20 Automatic Bi-Folding Door - Folding door

Verified by manufacturer 28 days ago

Record U.K. Limited Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • Achilles Information Limited - Procurement Management

    Achilles Information Limited - Procurement Management

    Certificate type

  • ADSA

    ADSA

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

Automatic folding door.

Jump to:
+44 (0)1698 376411 Website

Application

Suitable for narrow passageways in restaurants, hotels, business headquarters, hospitals and care homes.

Description

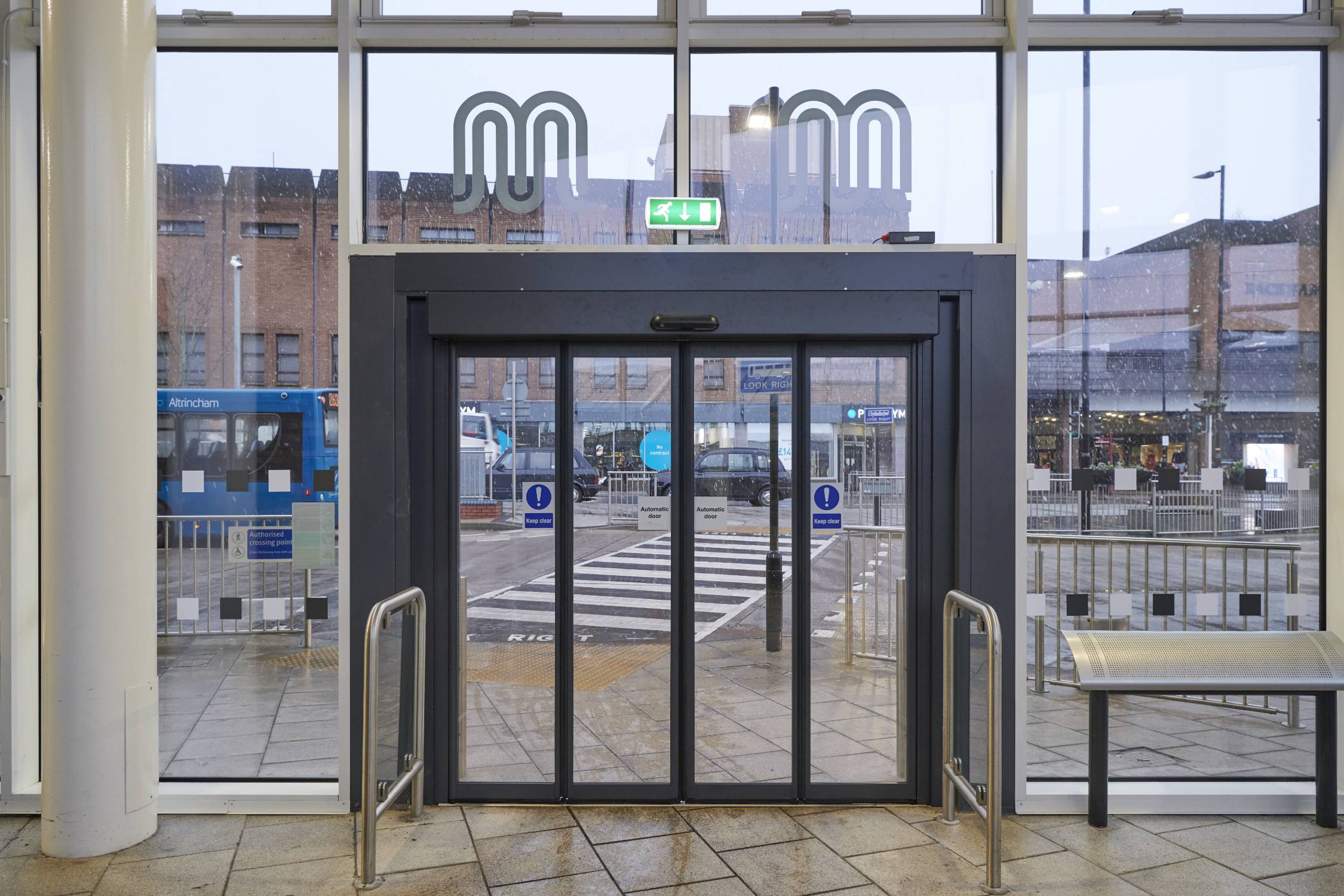

When limited space prevents the use of a sliding door, the Record FTA20 automatic bi-folding door offers an adaptable solution to suit many situations.


With door leaves that smoothly fold inwards these space saving doors negate the need for added room around the entrance meaning they are suitable for areas with limited space.


This bi-folding door is particularly suited to hotels, supermarkets, education facilities, retail outlets, hospitals and leisure facilities.


The doors can be easily retrofitted and suited to environments prone to windy conditions, remaining easy to open and close.


The Record FTA20 automatic bi-folding door comes in various dimensions to see the needs of the entrance, and retain almost the full size of the original opening.


These hinged space-saving doors can be easily programmed with custom perameters such as speed and hold open time with the Record BDE-D remote control.


Depending on the width of the entrance the Record FTA20 automatic bi-folding door design can be supplied as either one or two sided, this greatly increases the range of applications for this door.


Features

  • Retains almost full width of the door passage.
  • Work well in corridors and limited space.
  • Can be easily retrofitted.
  • Can be used to section off areas e.g. smoking rooms.
  • Work for one-way traffic or continuous openings.


Benefits

  • Retains near full size of the door opening.
  • Excellent in windy conditions.
  • Aesthetically pleasing compliments all architectural designs.
  • Save time on installation and maintenance costs.
  • Reliable and robust, suited to a wide range of environments.
  • Controllable parameters such as speed and opening time.
  • Can be used as a fire-door exit and interior door.

General information

Color

Other

Guidance for specification option:

Any RAL colour.

Clear

Beige

Black

Blue

Show more

Finish

Anodized

Material

Aluminium

Glass

Shape

Square

Rectangle

Width

Bespoke

Guidance for specification option:

800-2000 mm.

Height

2500 mm

Warranty description

One year

Uniclass

Pr_30_59_24_81 Sliding folding doorsetsPrimary

CAWS

L20/60 Doors

L20/540 Sliding folding doors

L20/530 Sliding folding external doors

Specification data - Sliding folding doorsets

Format

One way folding.

Bi-parting folding.

Operation

Powered.

Accessories

Not required.

Interlock control.

Emergency cut-off function.

Remote control and surveillance.

Night control.

Bell option.

Door leaf surveillance.

Key operated contact (SSK).

Module for extended functionality (FEM).

record BDE-D.

Guidance for specification option:

The electronic remote control unit with back-lit graphic display enables easy setting of individual parameters (speed, hold open time etc.), and other additional functions.

FrameMaterial

Aluminium, anodized.

Aluminium, RAL painted.

Guidance for specification option:

Insert colour requirement.

Width

800-2000 mm.

Guidance for specification option:

Insert requirements.

Height

2500 mm (maximum).

Guidance for specification option:

Insert requirement.

Opening speed

0.7 m/s.

Power supply

230 V a.c., 50/ 60 Hz.

Ambient temperature

-15 to 50°C.

Weight

2 x 40 kg.

4 x 40 kg.

Functions

Automatic operation, One way traffic, Continuously open, Manual control, Interlock function, Operating lock, Automatic reverse.

Trigger devices

Radar.

Infrared detectors.

Switch.

Assembly type

Wall assembly.

Beam assembly.

RelativeHumidity

Up to 85%, non-condensing.

Power

90 VA (rated).

Housing

240 x 180 mm.

Guidance for specification option:

D x H.

Sustainability data

Country of product manufacture

Europe

Material

Aluminium

Glass

Third party certifications

Third party certifications

QA Certificate

QA Certificate

Acclaim SSIP

Achilles Information Limited - Procurement Management

Achilles Information Limited - Procurement Management

Achillies Building Confidence

ADSA

ADSA

ADSA Membership

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

British Assessment Bureau - ISO 45001:2018

ISO 9001 Quality Management

ISO 9001 Quality Management

British Assessment Bureau ISO 9001:2015

CHAS

CHAS

CHAS Elite

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

British Assessment Bureau - ISO 14001:2015

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor EX1256

ADSA

ADSA

ADSA Company Membership Certificate

Alcumus SafeContractor

Alcumus SafeContractor

Alcumus Safe Contractor

Constructionline Gold

Constructionline Gold

Constructionline Gold

Literature

record FTA 20 automatic folding door system

record FTA 20 automatic folding door system

Case studies

The Dolder Grand, Zurich (Switzerland)

The Dolder Grand, Zurich (Switzerland)

Marin Centre Marin-Epagnier (Switzerland)

Marin Centre Marin-Epagnier (Switzerland)

Burg Hohenklingen, Stein am Rhein (Switzerland)

Burg Hohenklingen, Stein am Rhein (Switzerland)
