Record DFA 127 Automatic Swing Door Operator - Drive system for swing doors

Verified by manufacturer 28 days ago

Record U.K. Limited Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • Achilles Information Limited - Procurement Management

    Achilles Information Limited - Procurement Management

    Certificate type

  • ADSA

    ADSA

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

Record DFA 127 Automatic Swing Door Operator for internal and external doors.

Jump to:
+44 (0)1698 376411 Website

Application

The DFA 127 automatic swing door operator is almost silent in operation making it suitable for quieter environments such as hospital wards, classrooms, corridors, office buildings and care homes.

Description

Record DFA 127 Automatic Swing Door Operator features refined technology, compact design and practically silent operation. Can be used as the basis for a wide variety of swing door applications.


The record DFA 127 automatic swing door system enables doors to be easily automated to create the maximum opening in a limited space, offering accessibility to all.


Reliable and versatile, the record DFA 127 is a universally applicable automatic swing door operator that can be used as the basis for a wide variety of applications, thanks to its advanced programmable microprocessor and compact design.


The record DFA 127 automatic swing door system is also available with an in-head operator where a particularly streamlined, elegant look is required and with many additional features.


Electro-mechanical construction and modular design, with universal application. When the door drive motor operates, it simultaneously tensions a spring integrated in the drive housing. The shutting movement uses energy stored in the spring, which, depending on requirements, is also motor-assisted. Even without motor assistance, optimum power deployment is achieved in the entire door swing area.


Features and benefits:

  • Can be used as automatic door control system to provide fire and smoke protection.
  • Extendable with master-slave function (two overlapping door leaves).
  • Available in both full power and low energy models.
  • Operator also available as INVERSE, FIRE and in-ground models.
  • DIN 18 650-compliant technology, approved worldwide.
  • Approved as a hold-open system for fire protection barriers.
  • Can be used with various fire-protection profile systems such as Jansen, Forster, Heroal and Schüco.
  • Features gerontology technology for barrier-free access.
  • Available to operate doors in sizes EN4 to EN6.
  • Smooth in operation.
  • Easy to maintain.
  • Drive housing available in stainless steel or aluminium.
  • Surface treatments available in a variety of designs and finishes.


Variations:

  • Double swing doors with or without master/ slave operation.
  • Power saving mode: adjustable opening of one or both door panels (stretcher opening).
  • Integrated sequential closing control for double-leaf fire door applications.
  • Interlock function for two single doors installed consecutively.
  • Direction-oriented opening for oncoming traffic in corridors.
  • Opening or closing without current.

General information

Color

Other

Guidance for specification option:

Any RAL colour.

Clear

Beige

Black

Blue

Show more

Finish

Anodized

Material

Aluminium

Glass

Stainless steel

Steel

Plastic

Shape

Rectangle

Length

600 mm

Width

126 mm

124 mm

Height

110 mm

85 mm

Warranty description

One year

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Controlled door closers

P21/410 Controlled door closers

L20/60 Doors

L20/55 Doorsets

L20/490 Automatic doors

Specification data - Controlled door closers

Standard

To DIN 18650.

Classification grades (minimum)

-

Door closer power size

EN4–EN6.

Guidance for specification option:

For standard arm and slide arm.

Suitability for use on fire and smoke doors

1.

Closer functions

Automatic reverse, Touch control (push and go), Emergency stop, interlock control or two-leaf doors.

Guidance for specification option:

Standard.

Counter-specific door parameters.

Guidance for specification option:

Insert requirements.

Materials and finishes

-

Bodies

Stainless steel, satin.

Aluminium, anodized.

Aluminium, RAL.

Guidance for specification option:

Insert colour requirement.

Arms

Standard (SG).

Guidance for specification option:

Standard arm: Pushing, different lengths.

Sliding (GG).

Guidance for specification option:

Slide arm pulling and pushing with integrated stop.

Axis extensions.

Manufacturer guidance

  • The power transmission from the drive to the door works by means of a bar, which, depending on the mounting situation, is available as a standard or sliding arm.
  • Standard arms are available in different lengths to compensate for a range of lintel sizes.

Casings

Stainless steel, 85 mm.

Guidance for specification option:

Standard.

Aluminium 85 mm.

Aluminium, 108 mm.

Extended as required.

Extended for double swing doors (master/ slave operators).

Colour

RAL.

Type

FULL POWER.

Guidance for specification option:

  • Compact and most powerful.
  • Currentless drive units function like a mechanical door closer.

LOW ENERGY.

Guidance for specification option:

  • Can be used without security or safety sensors.
  • Currentless drive units function like a mechanical door closer.

INVERSE.

Guidance for specification option:

  • Opens in power failures and enhances safety and guidance in emergencies.
  • Currentless drive unit opens using spring tension.

FIRE.

Guidance for specification option:

  • Secure closure in case of fire.
  • Currentless drive units function like a mechanical door closer.

Size (h x w x l)

85 x 124 x 600 mm.

Guidance for specification option:

Standard.

110 x 126 x 600 mm.

Trigger devices

Radar motion detector RAD 290.

Active and passive infrared sensors.

Hygienic sensor.

Push button.

Presence detector.

Show more

Accessories

Not required.

BDE-D control panel display.

Electro-magnetic brake.

Integrated mechanical sequential control SFR 127.

Special control option: barrier-free WC access.

Show more

Power supply

230 V a.c., 50/ 60 Hz.

Power

60 W.

Manufacturer guidance

(Rated power)

Power consumption

13 W (in standby mode).

Control panel

BDI toggle switch.

Guidance for specification option:

Standard.

BDE-D with display.

Guidance for specification option:

Optional.

Manual switch.

Guidance for specification option:

Optional.

BDE-M.

Guidance for specification option:

Mechanical key switch instead of BDI.

Torque

50 Nm (maximum).

Force

Door leaf inertia: 65 kgm² (maximum).

Hold-open angle

70–115°.

Guidance for specification option:

Configurable.

Speed

Opening speed: 3–20 s (40 levels).

Guidance for specification option:

Configurable.

Noise

<45 dB.

Manufacturer guidance

(Generation)

Ingress protection (IP) rating

IP20.

TemperatureRange

-15 to +50°C.

RelativeHumidity

Up to 85% (non-condensing).

Sustainability data

Country of product manufacture

Europe

Material

Aluminium

Glass

Stainless steel

Steel

Plastic

Third party certifications

Third party certifications

QA Certificate

QA Certificate

Acclaim SSIP

Achilles Information Limited - Procurement Management

Achilles Information Limited - Procurement Management

Achillies Building Confidence

ADSA

ADSA

ADSA Membership

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

British Assessment Bureau - ISO 14001:2015

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

British Assessment Bureau - ISO 45001:2018

ISO 9001 Quality Management

ISO 9001 Quality Management

British Assessment Bureau ISO 9001:2015

CHAS

CHAS

CHAS Elite

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor EX1256

ADSA

ADSA

ADSA Company Membership Certificate

Alcumus SafeContractor

Alcumus SafeContractor

Alcumus Safe Contractor

Constructionline Gold

Constructionline Gold

Constructionline Gold

Literature

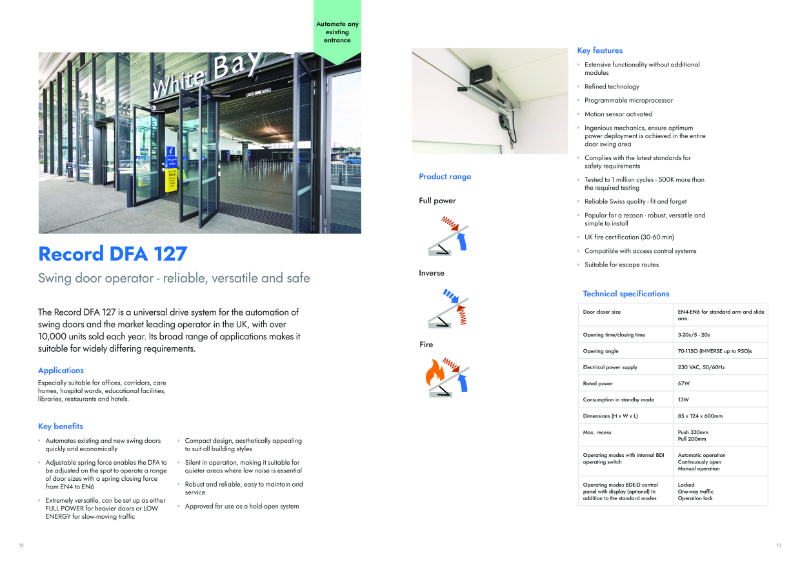

Record DFA 127 Swing Door Datasheet
