Record CLEAN Hermetic Sealing Doors

Verified by manufacturer 2 months ago

E-STA

Record U.K. Limited Variant:
Third party certifications:
  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Achilles Information Limited - Procurement Management

    Achilles Information Limited - Procurement Management

    Certificate type

  • ADSA

    ADSA

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

Hermetic sealing and hygienic sliding doors.

Jump to:
+44 (0)1698 376411 Website

Application

Suitable for operating theatres, clean rooms, laboratories, scanners, kitchens, humid environments and sensitive areas (X-ray).

Description

Where a high standard of hygiene is essential, the CLEAN hermetic sealing doors are the first line of defence for cleanrooms, hospitals and laboratories. By creating a seal around the door leaves air flow is completely restricted, ensuring bacteria cannot travel between rooms.


record uk ltd's hermetic sealing sliding door can be provided in a single or double-leaf configuration, ensuring a solution for any size project. With hermetic sealing levels up to 100 pa either of these doors is the perfect solution for cleanliness and hygiene.


Thee is also have a range of easy-to-clean hygienic doors available in a variety of designs including a slidingswing and telescopic door. These provide solutions not only for hospitals and cleanrooms, but also for leisure centres and other areas prone to moisture.


Multi-level protection with CLEAN doors

Bacteria and germs is not the only danger being controlled through our hermetic doors, a radiation protection core can be fitted, stopping X-ray and gamma rays. The door leaves are also fire-rated serving as a barrier should such an emergency occur.


In cases such as hospital quarantine wards where patients need to be both protected and comfortable, these CLEAN doors provide excellent noise dampening for a quieter environment.


Customisation

Not only do these CLEAN doors provide excellent hermetic sealing, they can also be customised to fit with the surroundings and create a more friendly environment for hospital patients.


With a variety of colour and image prints to choose from these doors can be fitted anywhere from a children's ward with images to create a more welcoming area, or a laboratory with company branding.


Features and benefits:

  • Hermetically tight closing.
  • Hygiene-friendly surfaces.
  • Noise-dampening door leaf core.
  • Radiation protection insert available in a range of lead equivalent values.
  • Water resistant materials for use in damp areas.
  • Smoke and fire protection function.
  • Clearance width: 625–3000 mm for single-leaf sliding door (E-STA) and 1220–4000 mm for Bi-parting sliding door (D-STA).
  • Clear height of passage: Up to 3000 mm maximum.

General information

Color

Silver

Other

Guidance for specification option:

Any RAL or Eloxal colour.

Clear

Beige

Black

Show more

Finish

Laminated

Galvanized

Powder-coated

Glazed

Material

Stainless steel

Steel

Laminate

Guidance for specification option:

HPL.

Aluminium

Glass

Show more

Shape

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/60 Doors

L20/490 Automatic doors

L20/520 Sliding doors

Specification data - Sliding door and partition sets

Third-party certification

User safety to EN 16 005, DIN 18 650.

Performance

Internal, fire, smoke and radiation protection.

Guidance for specification option:

  • Fire protection according to DIN 4102-5 + EN 1634-1.
  • Smoke protection according to DIN 18095-2.
  • Sound insulation for the complete construction, i.e. frame including door leaf: Rwp: 34dB, 37dB, 39dB.
  • Radiation protection: Pb 0.5 mm to Pb 5.0 mm (beyond that, bunker door available on request).

Arrangement

Single leaf sliding.

Door leaves

-

Construction

HPL laminate 0.8 mm.

Guidance for specification option:

Standard.

Aluminium.

Stainless steel.

Glass inserts, fully glazed, 40 mm safety glass.

Overall glass, fully glazed, 40 mm safety glass.

Glass inserts, fully glazed, 8 mm monolithic glass.

Overall glass, fully glazed, 8 mm monolithic glass.

Finish and colour

HPL laminate.

Aluminium.

Stainless steel, powder-coated.

Manufacturer guidance

Insert colour requirements.

Operation

Powered.

Accessories

Not required.

Electrical locking.

Mechanical locking.

2-door interlock.

4-door interlock with KOS motorization.

Switches.

Guidance for specification option:

Wide range available, consult manufacturer and insert requirements.

Push buttons.

Guidance for specification option:

Wide range available, consult manufacturer and insert requirements.

Cantilever-type handles.

Guidance for specification option:

Various types available, consult manufacturer and insert requirement.

Integrated blinds.

Laser protection.

Door frame

Anodized aluminium profile, 40 mm thick.

Guidance for specification option:

Deviating for special designs and reinforced if necessary.

Voltage

230 V a.c., 50/60 Hz.

Manufacturer guidance

Mains voltage.

Width

625–3000 mm.

Manufacturer guidance

Clearance width.

Clearance height

3000 mm (maximum).

Motorized operation

Record STM or KOS AE2.

Air tightness

Class D to EN 12207: 2017, Class 4 to UNE 85170: 2016.

Wind resistance

Class PPD2.

Sustainability data

Country of product manufacture

Europe

Material

Stainless steel

Steel

Laminate

Guidance for specification option:

HPL.

Aluminium

Glass

Show more

Third party certifications

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

British Assessment Bureau - ISO 45001:2018

ISO 9001 Quality Management

ISO 9001 Quality Management

British Assessment Bureau ISO 9001:2015

Achilles Information Limited - Procurement Management

Achilles Information Limited - Procurement Management

Achillies Building Confidence

ADSA

ADSA

ADSA Membership

CHAS

CHAS

CHAS Elite

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor EX1256

QA Certificate

QA Certificate

Acclaim SSIP

Alcumus SafeContractor

Alcumus SafeContractor

Alcumus Safe Contractor

ADSA

ADSA

ADSA Company Membership Certificate

Constructionline Gold

Constructionline Gold

Constructionline Gold

Literature

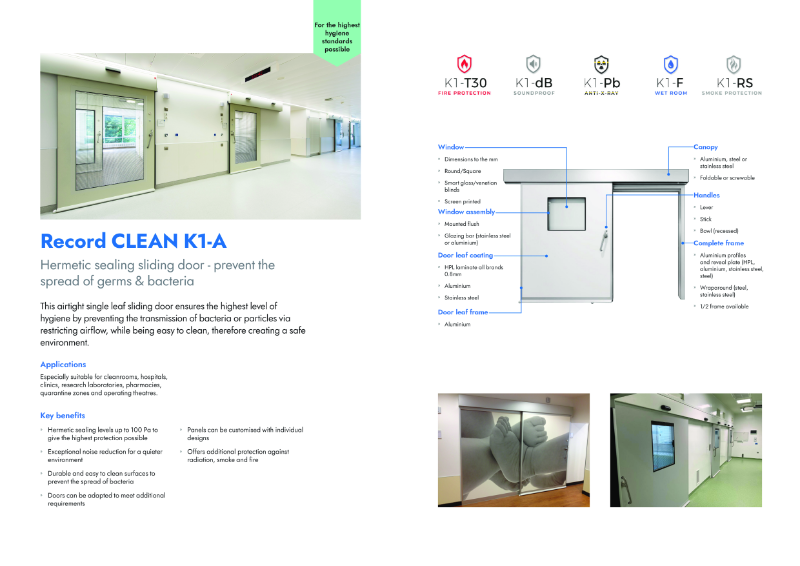

Record CLEAN K1-A Datasheet

Record CLEAN K1-A Datasheet

Case studies

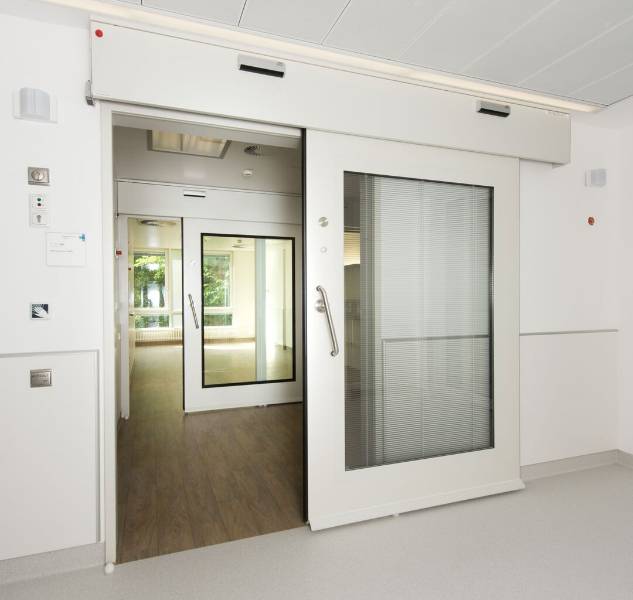

Children’s Clinic Erlangen

Children’s Clinic Erlangen

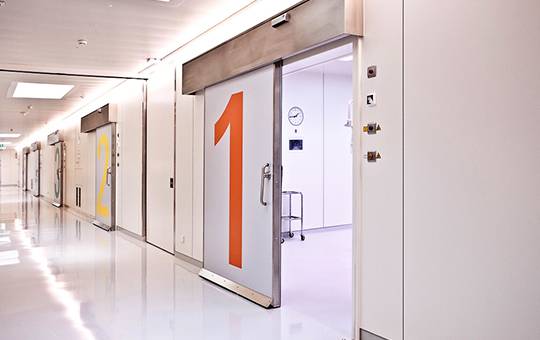

Clinique des Grangettes, Geneva (Switzerland)

Clinique des Grangettes, Geneva (Switzerland)

Royal Blackburn Hospital

Royal Blackburn Hospital

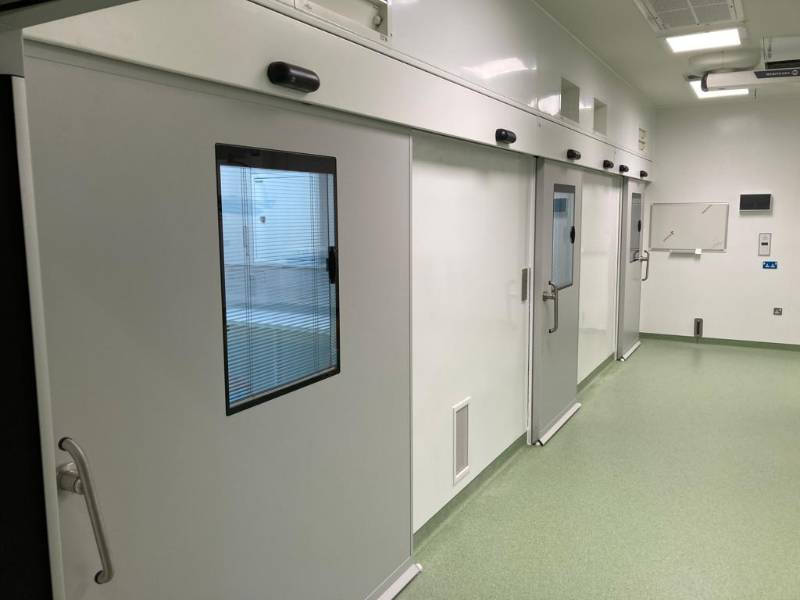

CLEAN K1-A Hermetically Sealed Door at The National Treatment Centre, Inverness

CLEAN K1-A Hermetically Sealed Door at The National Treatment Centre, Inverness
