Recessed Specimen Pass-Thru Cabinet B-505
Verified by manufacturer 10 months ago
Recessed specimen pass-through cabinet.
Application
Wall aperture mounted.
Description
Recessed cabinet to provide convenient passage for specimens from patient area to laboratory.
Features and benefits:
- Mounts in walls 75-145 mm thick.
- Type 304 stainless steel, satin finish.
- Self-closing doors.
- Interlocking mechanism prevents both doors from being open at the same time; provides sight barrier.
- Removable stainless steel tray.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 323 mm |
Width | 307 mm |
Height | 150 mm |
Warranty description | One year Guidance for specification option: Bobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase. |
Uniclass | |
CAWS | N12/420 Cupboards and storage units |
Specification data - Bathroom cabinets
Form | Wall aperture mounted. |
Carcass | |
Material | Stainless steel. |
Finish and colour | Satin. |
Size (nominal) | 323 x 307 x 150 mmGuidance for specification option: Rough Wall Opening: 290 x 275 mm. |
Doors | |
Arrangement | Single, right and left side-hung. |
Material | Stainless steel. |
Finish and colour | Satin. |
Edges | Square. |
Handles | Face-fixed. |
Sustainability data
Country of material origin | Mexico |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

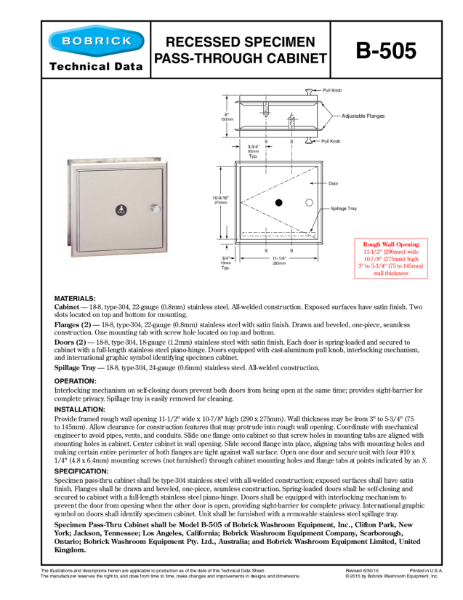

Recessed Specimen Pass‑Through Cabinet - B-505

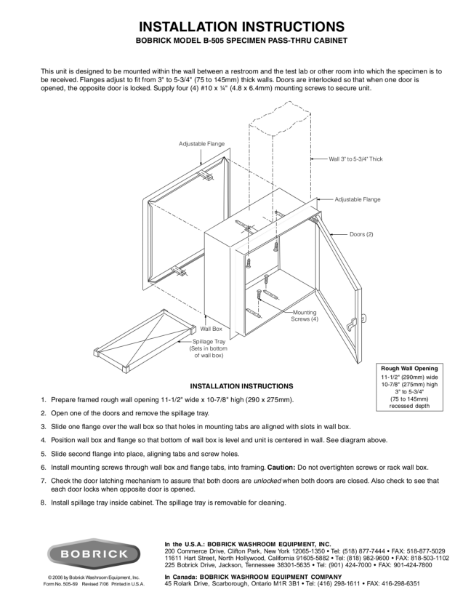

Installation Instructions - Bobrick Model B-505 Specimen Pass-Thru Cabinet
Washroom Accessories
Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance
