Recessed Multi-Roll Toilet Tissue Dispenser B-3888
Verified by manufacturer 10 months ago
Recessed stainless steel multi toilet roll holder.
Application
For mounting into a wall recess/ aperture.
Description
Features and benefits:
- Satin-finish stainless steel unit and dispensing mechanism.
- Door has flat face with protruding tumbler lock.
- Holds two rolls up to 5 1/4" (133 mm) diameter (1800 sheets).
- Extra roll drops in place when bottom roll is depleted.
- Theft-resistant, heavy-duty spindles.
- Extends 2 3/4" (70 mm) from wall.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 320 mm |
Width | 190 mm |
Height | 151 mm |
Warranty description | Manufacturer guidanceBobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase. (Refer to Bobrick Advisory Bulletin TB-21, Effective Ways to Clean Stainless Steel.) |
Uniclass | |
CAWS | N13/60 Toilet paper holders N13/462 Toilet paper holders |
Specification data - Toilet paper dispensers
Form | Wall-mounted multiple roll dispensers. |
Materials | |
Body | Stainless steel. |
Finish and colour | Satin polished. |
Operation | Pull-out. |
Integral accessories | Locking cover. |
Sustainability data
Country of material origin | United States |
Recyclability | Manufacturer guidanceMetals widely recycled. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

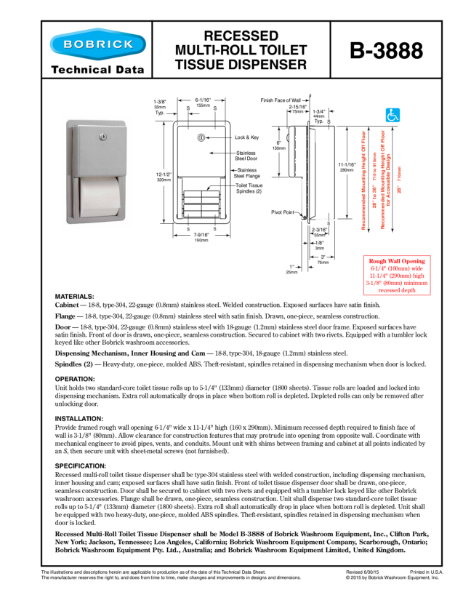

Recessed Multi-Roll Toilet Tissue Dispenser - B-3888
Washroom Accessories
Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance
TB-88 Advisory Bulletin
Case studies
Vashon Island High School
