RD4 - Rytons 110 x 54 mm Rectangular Ducting Range
Verified by manufacturer 4 months ago
RD41M
RD41M

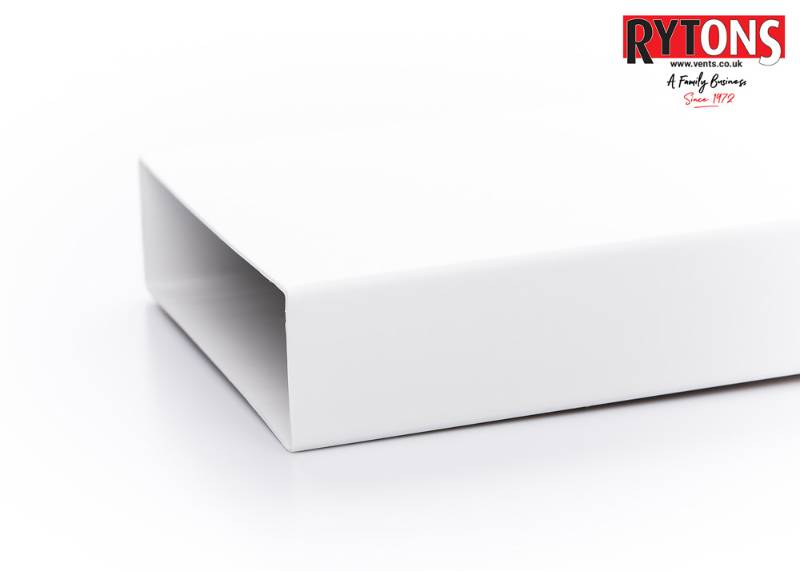

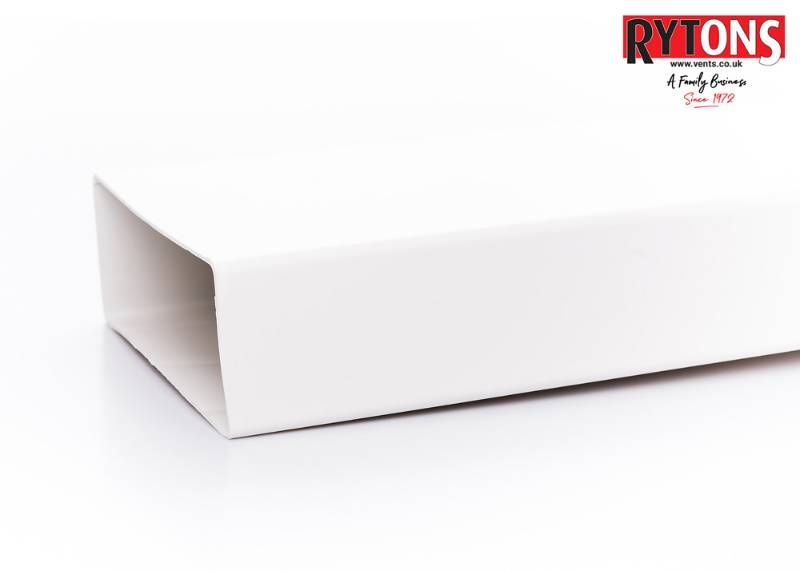

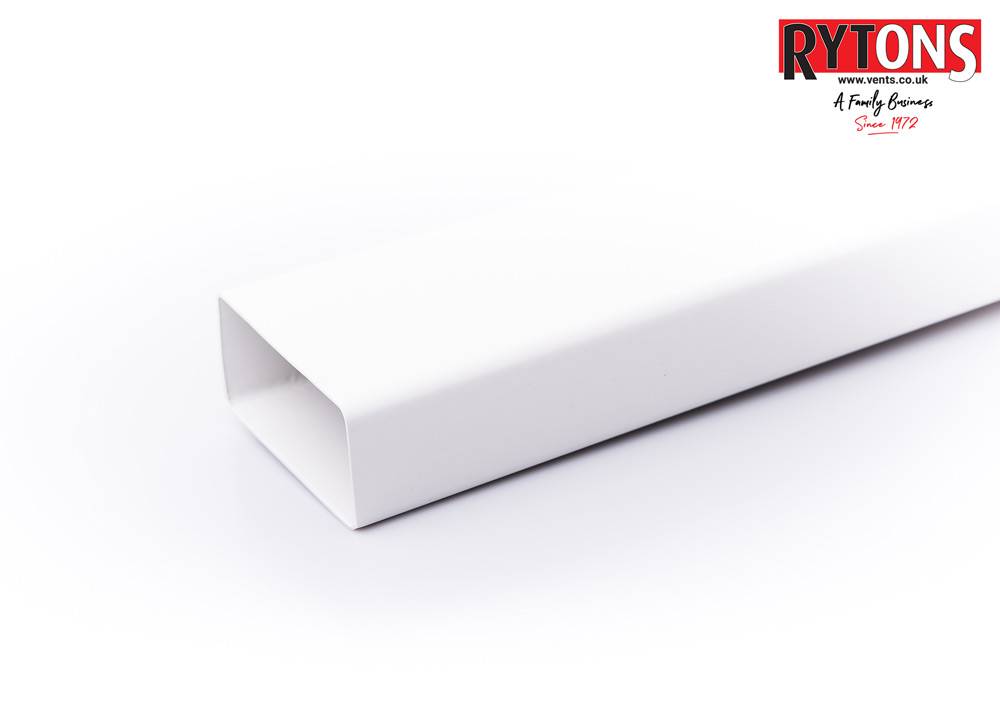

Plastic rectangular ductwork and fittings.
Application
For applications requiring lower extraction rates such as bathrooms, WCs and cooker hoods.
Description
A range of plastic rectangular ductwork and fittings.
Features and benefits:
- For use with cooker hoods and extraction fans with a maximum output of 250 m³/hour.
- Suitable for working temperatures of -20ºC to +60ºC.
General information
Shape | Rectangle |
Color | White |
Material | Plastic Guidance for specification option: PVC-U rectangular ducting; manufactured in compliance with Domestic Plastic Ductwork Specification DW/154. Will meet UL94 HB flammability standard. |
Size | 110 x 54 x 1000 mm 110 x 54 x 2000 mm |
Uniclass | |
CAWS | U90/425 Rigid ductwork and fittings |
Product range |
Specification data - Domestic rigid ductwork and fittings
Material | Plastic.Guidance for specification option: PVC-U rectangular ducting; manufactured in compliance with Domestic Plastic Ductwork Specification DW/154. Will meet UL94 HB flammability standard. |
Size | 110 x 54 x 1000 mm. |
Jointing | RD4C – Rytons flat channel connector. |
Fixings | BANDGALV - Rytons galvanised banding.Guidance for specification option: Width: 12 mm; length:1000 mm. |
Accessories | None.RD4WP.Guidance for specification option: Rytons rectangular wall plate. RD4MFAB.Guidance for specification option: Rytons Multifix® air brick with flat channel ducting adaptor. |
Free area | 5424 mm². |
Static pressure drop | Guidance for specification option: Varies according to length. Refer to manufacturer's details. |
Fittings | RD4V90. Guidance for specification option: Rytons 90° vertical bend. RD4H90. Guidance for specification option: Rytons 90° horizontal bend. RD4TFLAT. Guidance for specification option: Rytons flat channel T piece. RD4EB. Guidance for specification option: Rytons 90° elbow bend. RD4EC. Guidance for specification option: Rytons 90° elbow connector. |
