RBA / RCA / RDA

Description

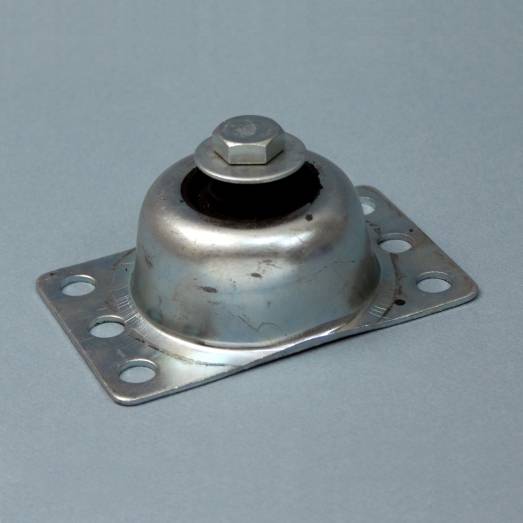

RBA / RCA / RDA mounts are fully captive isolators that can work in any orientation. Rubber isolators have to be compressed in order to isolate. In the majority of situations rubber is compressed by gravity load, from a floor, wall or piece of equipment. Therefore, normal isolators are only rated for vertical loading. This range of products compresses the rubber element within a metal housing. The rubber is compressed in all directions which allows these to have a load rating in all axes. These mounts can be used in any orientation and the larger sizes can handle significant loads. The load capacity ranges from 91kg up to 3230kg for larger variants.

General information

Color

Black, green, white

Green, red, white

Features

Steel insert, steel housing, J cap screw with standard washer

Material

Steel

Uniclass 2015

Pr_80_77_94_15 Compression isolatorsPrimary

Digital objects

Platform Compatible Version Certified to
Revit
-

2

2.1
IFC
-

2

2.1
