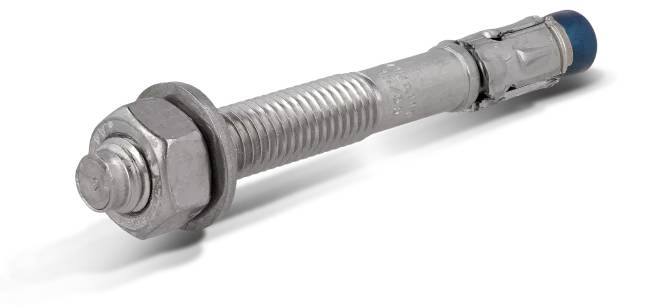

Rawlplug® HPTIII Throughbolt - Throughbolt Anchor for Concrete
Verified by manufacturer 6 days ago
European Technical Assessment (ETA)
Certificate type
FM Approved
Certificate type
Certificate of constancy of performance
Certificate type
European Technical Assessment (ETA)
Certificate type
Zinc-plated and stainless steel throughbolt anchors for cracked and non-cracked concrete.
Application
Suitable for use in:
- Balustrades; barriers, elevators and escalators; seats in public facilities; steel structures; storage racks; ventilated facades.
Description
Zinc-plated and stainless steel throughbolt anchors for cracked and non-cracked concrete.
Features and benefits:
- Optimized cone shape, increasing the rake angle floor straps.
- Identification mark of anchor length, facilitating control after installation.
- Two kinds of washer DIN 125, DIN 9021.
- Depth marker facilitating the installation anchors in the hole.
- High performance in cracked and non-cracked concrete confirmed by ETA Option 1.
- Steel expansion band with optimized design, providing secure anchoring.
- Thickness of fastened elements can be increased thanks to high carrying capacity and shallow depth anchoring.
- Can be used for fastening steel/ aluminium and wooden elements.
Substrates:
- Cracked concrete C20/25-C50/60.
- Non-cracked concrete C20/25-C50/60.
- Unreinforced concrete.
- Reinforced concrete.
General information
Color | Silver Blue |
Finish | Stainless steel Zinc plated |
Material | Stainless steel Steel |
Shape | Circle Hexagon |
Length | 60 mm 65 mm 75 mm 80 mm 85 mm |
Width | 8 mm 10 mm 12 mm 16 mm 20 mm Manufacturer guidanceThread diameter/ hole diameter in substrate. |
Height | 8 mm 10 mm 12 mm 16 mm 20 mm Manufacturer guidanceThread diameter/ hole diameter in substrate. |
Warranty description | 50 year |
Uniclass |
SKU Code | R-HPTIIIZP08085/35, R-HPTIIIZP08095/45, R-HPTIIIZP08105/55, R-HPTIIIZP08115/65, R-HPTIIIZP10065/5, R-HPTIIIZP10080/20, R-HPTIIIZP10095/35, R-HPTIIIZP10115/55, R-HPTIIIZP10130/70, R-HPTIIIZP12080/5, R-HPTIIIZP12100/25, R-HPTIIIZP12115/40, R-HPTIIIZP12125/50, R-HPTIIIZP12135/60, R-HPTIIIZP12150/75, R-HPTIIIZP16105/5, R-HPTIIIZP16125/25, R-HPTIIIZP16140/40, R-HPTIIIZP16150/50, R-HPTIIIZP16180/80, R-HPTIIIZP20125/5, R-HPTIIIZP20160/40, R-HPTIIIZP20180/60, R-HPTIIIZP20200/80, R-HPTIIIA408060/10, R-HPTIIIA408075/25, R-HPTIIIA408085/35, R-HPTIIIA408095/45, R-HPTIIIA408105/55, R-HPTIIIA408115/65, R-HPTIIIA410065/5, R-HPTIIIA410080/20, R-HPTIIIA410095/35, R-HPTIIIA410115/55, R-HPTIIIA410130/70, R-HPTIIIA410140/80, R-HPTIIIA412080/5, R-HPTIIIA412100/25, R-HPTIIIA412115/40, R-HPTIIIA412125/50, R-HPTIIIA412150/75, R-HPTIIIA412180105, R-HPTIIIA416125/25, R-HPTIIIA416140/40, R-HPTIIIA416150/50, R-HPTIIIA416180/80 |
Sustainability data
Country of material origin | Poland |
Country of product manufacture | Poland |
Material | Stainless steel Steel |
Expected Life | 50 year |
Product certifications
Certification type
European Technical Assessment (ETA)
R-HPTIII A4 European Technical Assessment
FM Approved
R-HPTIIIA4 FM Approval
Certificate of constancy of performance
CoCP R-HPT III R-HPT III and R-HPT III A4
European Technical Assessment (ETA)
European Technical Assessment - R-HPT III and R-HPT III A4
Literature
DECLARATION OF PERFORMANCE R-HPTIII-A4
