Extruded polystyrene (XPS) thermal insulation designed for very high loadbearing floors such as cold stores and aircraft hangars.
Suitable for load-bearing industrial floors, base slabs or high-load rooftop car parks.

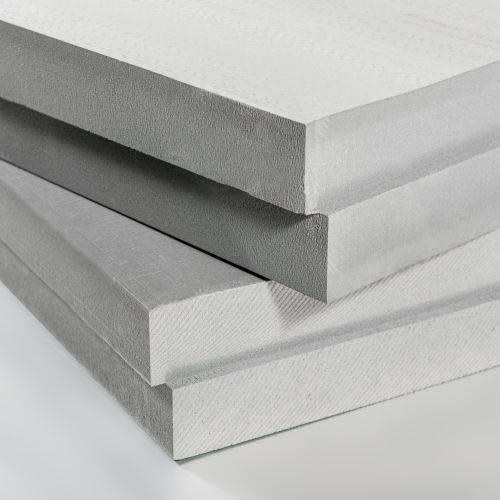

Ravatherm XPS X 700 SL closed-cell polystyrene foam thermal insulation, with its excellent thermal insulation capability, high compressive strength and resistance to moisture, can be safely used in locations where good thermal insulation capability is only one of many complex requirements.
Features and benefits:
Smooth surface skin (extrusion skin)
Homogeneous, closed-cell material structure comprised of extruded polystyrene (XPS), a rigid form of insulation.
E20/200 Proprietary underslab insulation
E20/30 Underslab insulation
K11/115 Battened plywood floating floor
K11/125 Battened particleboard floating floor
K11/135 Battened oriented strand board floating floor
K11/145 Battened cement-bonded particleboard floating floor
K11/20 Battened particleboard floating floor
K11/215 Plywood floating floor
K11/225 Particleboard floating floor
K11/235 Oriented strand board floating floor
K11/245 Cement bonded particleboard floating floor
K11/25 Particleboard floating floor
K20/150 Battened timber board floating floor
K20/20 Battened timber board floating floor
K21/120 Battened wood flooring
K21/130 Battened wood floating floor
K21/30 Wood lining on battens
M10/290 Floating construction
M10/40 Floating construction
M13/260 Floating construction
M13/40 Floating construction
To BS EN 13164.
Third party product certification
To BS EN 13501-1.
Products contain an ecologically safe flame-retardant additive.
Compressive strength (minimum) at 10% compression
To EN 826. To plan the reinforcement steel requirements of floor slab used as a load-distribution structure over the thermal insulation layer, please consult a structural engineer.
Thermal conductivity (maximum)
Face size (length x width)
1250 x 600 mm.
The maximum installation depth of the thermal insulation is determined by the load: the horizontal pressure must not exceed the compressive strength of the boards, taking into account the value of the permanent load.
Smooth surface skin (extrusion skin). PE film separating and sliding layer between the thermal insulation and the concrete screed for installation on floor applications.
A grooved edge allowing boards to overlap, minimizing gaps.
Compressive creep (design load) maximum 2% deflection after 50 years
To EN 1606.
-50°C to +75°C maximum.
Provides the permanent application temperature of Ravatherm XPS X products. At higher temperatures, the boards will start to soften and suffer permanent deformation.
Thermal resistance (R-value)
(Rd m2 .K/W)
Country of product manufacture
Ravatherm XPS X uses carbon dioxide as a blowing agent, which gives it an ozone-depleting potential (ODP) of zero and a Global Warming Potential (GWP) of less than five
