RAVATHERM XPS X UB300

Verified by manufacturer 15 days ago

Ravago Building Solutions Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

Ravatherm XPS X UB300 pairs the thermal performance of Ravatherm XPS X 300 SB with a 6 mm fibre cement layer, resulting in a specialist insulation board for use on parapets and upstands.

Jump to:
BIM object icon
Website

Application

Suitable for use on parapets and upstands in flat roof applications.

Description

Ravatherm XPS X UB300 pairs the thermal performance of Ravatherm XPS X 300 SB with a 6 mm fibre cement layer to address the challenge of thermal bridging in flat roofs.


Features and benefits:

  • Good thermal insulation capability.
  • Waterproof; negligible moisture uptake.
  • Energy-saving.
  • Frost-resistant.
  • Resistant to high loads.
  • Simple installation.
  • Quick installation.
  • Does not slump or shrink.
  • Environmental friendly and a cost efficient solution to thermal bridging in flat roof applications.

General information

Color

Grey

Finish

6 mm fibre cement topping on one external face

Material

Polystyrene

Homogeneous, closed-cell material structure comprised of extruded polystyrene (XPS), a rigid form of insulation with 6 mm fibre cement layer.

Shape

Rectangle

Length

1200 mm

Width

600 mm

Height

56 mm

Uniclass

Pr_25_71_63_29 Extruded polystyrene (XPS) boardsPrimary

CAWS

J21/440 Inverted roof insulation

J41/440 Inverted roof insulation

J42/440 Inverted roof insulation

Q37/310 Inverted roof insulation

Specification data - Extruded polystyrene (XPS) boards

Standard

To BS EN 13164.

Third party product certification

BRE.

Fire performance

Euro class E, Class A1, to BS EN 13501-1.

Products contain an ecologically safe flame-retardant additive.

Compressive strength (minimum) at 10% compression

300 kPa.

To EN 826. To plan the reinforcement steel requirements of floor slab used as a load-distribution structure over the thermal insulation layer, please consult a structural engineer.

Thermal conductivity (maximum)

<60 mm - 0.030 W/m·K.

Typical thickness 50 mm to EN 13164.

Thickness

50 mm.

Face size (length x width)

1200 x 600 mm.

The maximum installation depth of the thermal insulation is determined by the load: the horizontal pressure must not exceed the compressive strength of the boards, taking into account the value of the permanent load.

Facing

6 mm fibre cement flat sheet.

Fibre cement topping on external face Ravatherm XPS X 300 SB.

Edges

Butt edge.

This product must be laid with no gaps between the boards in structures with contact to soil. For gluing, solvent-free adhesives must be used. Follow the supplier’s guidance.

TemperatureRange

-50°C to 75°C maximum.

Provides the permanent application temperature of Ravatherm XPS X products. At higher temperatures, the boards will start to soften and suffer permanent deformation.

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC
-

2

Revit
-

2

Third party certifications

  • BS EN 13501-1 - Fire classification of construction products and building elements. Classification using data from reaction to fire tests : Once the insulation is placed in the inverted roof, if the finishing used is that covered by the European Commission Decision EC 2000/553/EC, the designation of the roof is Broof(t4) hence complying with Requirement B4 (External Fire spread) of Approved Document B of the Building Regulations
  • BS EN 826:2013 - Thermal insulating products for building applications. Determination of compression behaviour
  • BS EN 13164:2008 - Thermal insulation products for buildings. Factory made products of extruded polystyrene foam (XPS)

Literature

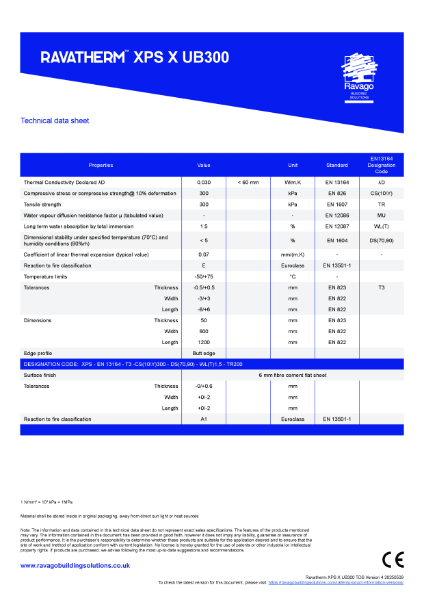

Ravatherm XPS X UB300 Technical Data Sheet

Ravatherm XPS X UB300 Technical Data Sheet
