RAVATHERM XPS X 500 SL
Verified by manufacturer 2 months ago
50 mm
50 mm
Extruded polystyrene (XPS) thermal insulation designed for high loadbearing floors.
Application
Provides a suitable thermal insulation with its closed cell structure is a perfect solution for heavy-duty inverted roofs and floor structures.
Description
Ravatherm XPS X 500 SL thermal insulation with its closed cell structure is a perfect solution for the thermal insulation of heavy-duty inverted roofs, floor structures and load-bearing base slabs.
Features and benefits:
- Permanently high thermal insulation level.
- Negligible moisture uptake.
- High strength and rigidity.
- Dimensional stability.
- Resistance to rot and deterioration.
- Simple and quick installation with only a small amount of waste.
- Environmental friendly and a cost efficient solution.
General information
Color | Grey |
Finish | Smooth Guidance for specification option: Smooth surface skin (extrusion skin). |
Material | Polystyrene Guidance for specification option: Homogeneous, closed-cell material structure comprised of extruded polystyrene (XPS), a rigid form of insulation. |
Shape | Rectangle |
Length | 1250 mm |
Width | 600 mm |
Height | 50 mm 75 mm 100 mm |
Uniclass | |
CAWS | E20/200 Proprietary underslab insulation E20/30 Underslab insulation K11/115 Battened plywood floating floor K11/125 Battened particleboard floating floor K11/135 Battened oriented strand board floating floor K11/145 Battened cement-bonded particleboard floating floor K11/20 Battened particleboard floating floor K11/215 Plywood floating floor K11/225 Particleboard floating floor K11/235 Oriented strand board floating floor K11/245 Cement bonded particleboard floating floor K11/25 Particleboard floating floor K20/150 Battened timber board floating floor K20/20 Battened timber board floating floor K21/120 Battened wood flooring K21/130 Battened wood floating floor K21/30 Wood lining on battens M10/290 Floating construction M10/40 Floating construction M13/260 Floating construction M13/40 Floating construction |
Specification data - Extruded polystyrene (XPS) boards
Standard | To BS EN 13164. |
Fire performance | Euroclass E.Guidance for specification option: Products contain an ecologically safe flame-retardant additive. Manufacturer guidanceTo BS EN 13501-1. |
Compressive strength (minimum) at 10% compression | 500 kPa.Guidance for specification option: To EN 826. To plan the reinforcement steel requirements of floor slab used as a load-distribution structure over the thermal insulation layer, please consult a structural engineer. |
Thermal conductivity (maximum) | 0.031 W/m·K.Guidance for specification option: To EN 13164. |
Thickness | 50 mm. |
Face size (length x width) | 1250 x 600 mm.Guidance for specification option: The maximum installation depth of the thermal insulation is determined by the load: the horizontal pressure must not exceed the compressive strength of the boards, taking into account the value of the permanent load. |
Facing | Smooth.Guidance for specification option: Smooth surface skin (extrusion skin). PE film separating and sliding layer between the thermal insulation and the concrete screed for installation on floor applications. |
Edges | Ship lap.Guidance for specification option: A grooved edge allowing boards to overlap, minimizing gaps. |
Compressive creep (design load) maximum 2% deflection after 50 years | 180 kPa. Guidance for specification option: To EN 1606. |
TemperatureRange | -50°C to +75°C maximum. Guidance for specification option: Provides the permanent application temperature of Ravatherm XPS X products. At higher temperatures, the boards will start to soften and suffer permanent deformation. |
Thermal resistance (R-value) | 1.60. Manufacturer guidance(Rd m2 .K/W) |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Polystyrene Guidance for specification option: Homogeneous, closed-cell material structure comprised of extruded polystyrene (XPS), a rigid form of insulation. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 2.77 kg CO₂ eq/kg Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceRavatherm XPS X uses carbon dioxide as a blowing agent, which gives it an ozone-depleting potential (ODP) of zero and a Global Warming Potential (GWP) of less than five. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 7 |
 IFC | - | 7 |
Literature

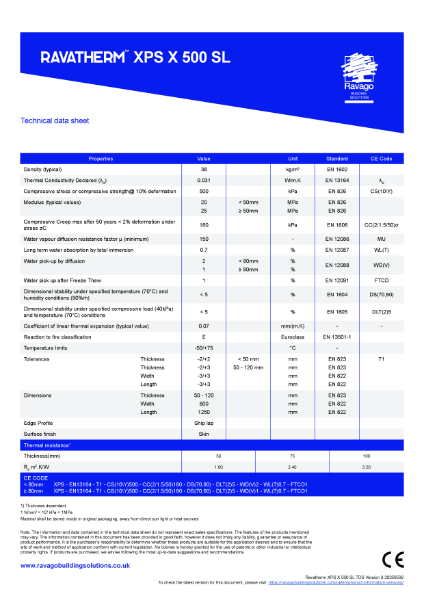

Ravatherm XPS X 500 SL Technical Data Sheet
