Rapidor Imperial - Well-sealed and Fastest Opening Speed Door Verified by manufacturer 2 months ago
Verified by manufacturer 2 months ago
PVC Curtain
PVC Curtain
A rapid-rise door designed for external openings where a high wind class is needed, fitted with a push/ pull drive system.
Application
Suitable for external openings.
Description
A rapid-rise door designed for external openings with a push/ pull drive system that interlocks with the edge of the curtain, giving it the ability to open and close in very windy conditions.
Features and benefits:
- Impact-resistant and self-repairing
- Suitable for high traffic
- zipper edge which results in a well-sealed door
- Low air permeability
- Excellent hygiene barrier
- Wide variety of vision panel designs & sizes
- Specialist variations available for freezer rooms, ATEX areas or air-tight clean rooms.
- Cut the cost of energy wastage
- Quiet and reliable operation
- Opening speeds up to 3 metres/second
- Tough PVC fabric curtain available in a wide range of colours
- Door frames available in Stainless Steel, Galvanised & Powdercoat colour finishes
- Wind class 5
General information
ColorCurtain colour. | Blue Brown Grey Green Ivory |
Finish | Galvanized Powder-coated |
Material | Stainless steel Steel Polyvinyl chloride (PVC) |
Shape | Square Rectangle |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/60 Doors L20/570 High-speed doors |
Product range |
Specification data - High-speed doorsets
Speed (minimum) | - |
Opening | 3.0 m/s (maximum). |
Closing | 1.0 m/s. |
Format | Rapid roll up. |
Arrangement | Face-fitted across opening.Fitted into reveal. |
Curtain material | 1300 g/m² PVC curtain.Standard. |
Frame and guides | - |
Material | Galvanized steel, patented sliding system, PE-HD, self-lubricant.Standard. Stainless steel, Grade 441, patented sliding system, PE-HD, self-lubricant.Optional. Stainless steel, Grade 316, patented sliding system, PE-HD, self-lubricant.Optional. Powder-coated steel, patented sliding system, PE-HD, self-lubricant.Optional. |
Finish and colour | RAL 9010.RAL 3002.RAL 5010.RAL 7037.RAL 9005.RAL.Any RAL colour, insert requirement. |
Operation | Push start/ stop button. |
Standards | To BS EN 12604 and EN 13241. |
Control panel | Powder-coated steel (IP54). Standard. PVC (IP65). Optional. Stainless steel (IP54). Optional. |
Power supply | Three phase 230, 380, 500 V, 50/ 60 Hz, (10–16 A). Inverter system. |
Safety | 2500/ 2000 mm Light Curtain (IP67). |
Air permeability | To EN 12426, Class 4. |
ThermalTransmittance | To EN 12428, 5.80 W/m²·K. Standard PVC Curtain. |
Resistance to water penetration | To EN 12425, Class 3. |

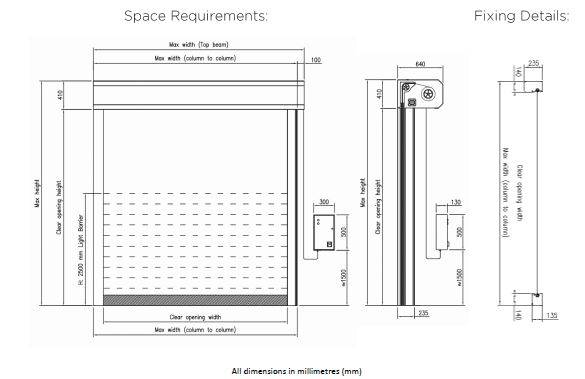

DimensionsW x H. | 8000 x 6000 mm (maximum). Insert requirement. 5000 x 5000 mm (maximum). Type 2, consult manufacturer and insert requirement. |
Battery back-up | Not required. UPS Battery. |
Emergency release | Hand Crank Standard. Chain. Optional. Counterweight. Optional. UPS Backup. Optional. |
Ingress protection (IP) rating | Powder-coated steel and Stainless steel: IP54, PVC: IP65. |
Operating temperature | +1 to +70°C. |
Curtain colour | RAL 9010. RAL 1015. RAL 1003. RAL 2004. RAL 3002. |
Sound insulation | 18 dB. Standard curtain. |
Vision panel | Not required. One row 500 mm high. Standard option. Two rows 300 mm high. Standard option. Additional rows round/ full height/ mesh. Optional, insert requirements. |
Motor | Direct drive motor with fall back system to EN 13241. |
