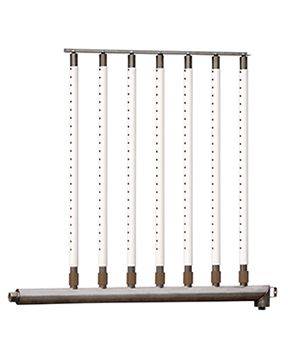

Rapid-sorb® Dispersion Tube System
Application

Designed for situations in which multiple tubes are needed to accommodate load and/ or when available non-wetting distance is needed. Used to disperse steam by other driSteem products.

Description

Dispersion tube system designed for applications where multiple tubes are needed to accommodate load and/ or when available non-wetting distance is limited.


Compatible with non-pressurized steam generators such as the GTS® humidifier, STS® humidifier, Vaporstream® humidifier, Vapormist® humidifier, and XT Series humidifiers (all specified separately).


Features and benefits:


  • Better non-wetting distance compared to standard dispersion tubes.
  • Models available in sizes from 10" x 10" (254 x 254 mm) and upwards.
  • For horizontal or vertical airflow with header inside or outside of duct.
  • Available with high-efficiency dispersion tubes.

General information

Color

Silver.

Features

Better non-wetting distance compared to standard dispersion tubes. Horizontal or vertical airflow with header inside or outside of duct.

Material

Manufacturer's standard.

Shape

Cylindrical.

Size

254 x 254 mm.

Uniclass 2015

Pr_65_67_39_84 Steam humidifiersPrimary
Specification data - Steam humidifiers Enhanced data

Duty

-

Air volume

Capacity to 2100 lbs/hr (953 kg/h).

Steam source

Non-pressurized steam.

Accessories

None

High-efficiency tube

Environmental information

Country of product manufacture

United States
