Rapid Select Carpet Tile Collection: Graph 5T227
Verified by manufacturer 7 months ago
26481
26481
M1 emission classification
Certificate type
Carpet tiles with a multi-level pattern loop.
Application
Recommended installation methods:
- Quarter turn; Random; Monolithic; Brick; Ashlar.
Description

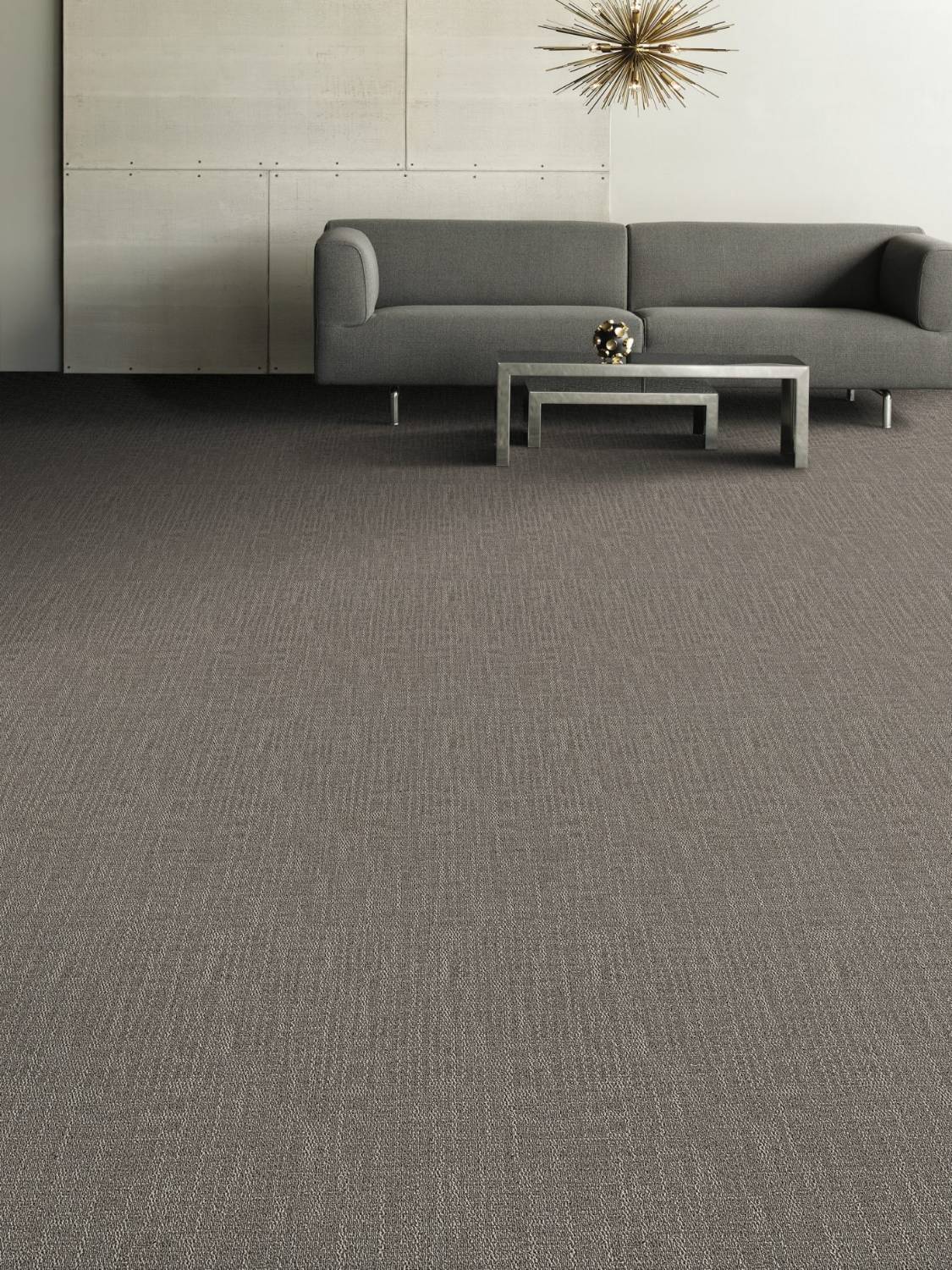

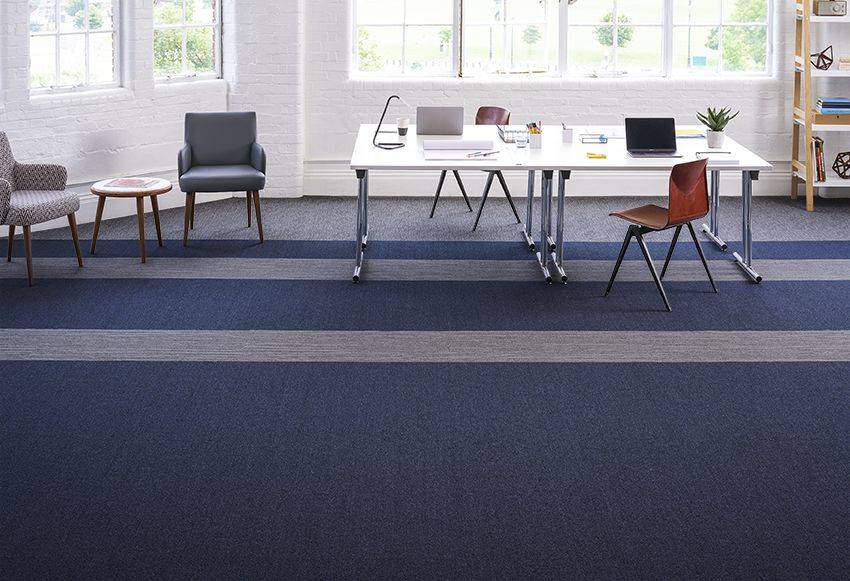

Multi-level pattern loop carpet tiles with a network of lines that overall create a small-scale pattern in eight colours.
Features and benefits:
- Use classification 33 Commercial Heavy EN1307.
- Multi-level pattern loop, Eco Solution Q 100% solution dyed nylon fibre.
- Use classification 33 Commercial Heavy EN1307.
- Cradle to Cradle™ Bronze Certified.
- 15-year commercial limited warranty.
- We want it back: At the end of its useful life, we’ll reclaim and recycle or reuse our carpet tiles through our reTURN scheme
- Adhesive-Free Installation: IOBAC MagTabs™
General information
Color | Grey Black Blue |
Material | Nylon |
Shape | Square |
Length | 500 mm |
Width | 500 mm |
Height | 6 mm |
Warranty description | 15 year Guidance for specification option: Commercial limited warranty |
Uniclass | |
CAWS | M50/15 Carpet tiling M50/130 Carpet tiling |
Product range |
Specification data - Pile carpet tiles
Style | tufted 1/12", 47.2 per 100 mm. |
Material | Eco Solution Q® Polyamide 6. |
Classification | |
Standard | To BS EN 1307. |
Third-party certification | Cradle to Cradle: Bronze. Indoor air quality: A+ and Environmental product declaration. |
Level of use class | To BS EN 1307, class 33. |
Luxury rating class | LC1. |
Recycled content | 25% (eco solution q® polyamide 6). |
Size | 500 x 500 mm. |
Colour and pattern | Grey mist. |
Dye method | 100% solution dyed. |
Primary backing | Pet non-woven. |
Secondary backing | Taskworx®tile (polymer modified bitumen). |
Total thickness | 6 mm. |
Mass | 616 g/m², (nominal total pile mass). |
Pile density | To ISO 8543, 0.099 g/cm³. |
Dimensional stability | To EN 986, ≤0.2%. |
Sound insulation | To ISO 10140, 25 dB. |
Sound absorption | To ISO 354/116540, 10 αw/Class E. |
Thermal resistance | 0.065 m² K/W. |
Colour fastness | >6. |
FlammabilityRating | To EN 13501-1, Bfl-S1 (adhered testing). |
Castor chair rating | To EN 985, ≥2.4. |
Light reflectance | 11.0. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Guidance for specification option: re[TURN] TakeBack scheme. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
M1 emission classification
M1 Certificate
