Ranger 2 Cable (Standard and High Sensitivity) - Water Sensing Cable
Verified by manufacturer 3 months ago
High Sensitivity
High Sensitivity
Senses the presence of water and triggers an alarm that pinpoints the exact location.
Application
Designed for a range of applications, including data centre floor voids, telecommunication rooms, HVAC equipment locations, pipes, electrical rooms, storage areas, tanks and roofs.
Suitable applications for the Standard cable include:
- Below raised floors.
- Above suspended ceilings.
- Run in drip trays.
- Laid around the base of plant, apparatus or tank.
- Laid in loops or wave pattern for general monitoring of larger areas.
Suitable applications for the High Sensitivity cable include:
- Attach to underside of pipes outside the lagging.
- Above suspended ceilings.
- Run in drip trays.
- Fix to soffits and ceilings to detect water ingress.
Description
Floodline Ranger 2 sensing cables detect the presence of water at any point along their length. The cables are installed with a Floodline Ranger Leak Detection Panel, and when the cable senses water, it triggers an alarm and pinpoints the exact location.
The cable is small, lightweight and flexible, allowing for easy installation. The sensor can be wetted and dried any number of times provided the cable is not contaminated with a substance that permanently changes its electrical characteristics. If the contamination is soluble then the cable can be removed, washed (clean water only), dried and returned to use subject to the level of contamination.
Features and benefits:
- Cable senses water presence and can pinpoint the exact location.
- Provides distributed leak detection and location over a wide range of areas.
- Available in a variety of lengths to provide as much coverage as needed.
- Small, lightweight and flexible.
- Easy installation.
- Sensor can be wetted and dried multiple times.
- Can be supplied with factory-installed metal connectors that plug together.
- Tough four-core construction with protective outer braid.
- The High Sensitivity cable has a fabric wrap under the outer braid.
Standards:
- CPR (Construction Products Regulation) Testing.
- Under the harmonised European standard EN 50575 this cable has been tested for heat release, smoke production and flame spread in accordance with EN 50399:2011+A1:2016 and EN 60332-1-2:2004+A11:2016.
- Tested under AVCP (Assessment and Verification of Constancy of Performance) system 3 by a notified body the cable was classified as Euroclass Dca-s2,d0 (Standard) and Euroclass Eca (High Sensitivity).
General information
Color | White |
Material | Polymeric Polyester Fabric |
Shape | Other |
Length | Bespoke |
Width | 6 mm |
Warranty description | Ten year |
Uniclass |
Specification data - Water-sensing cables
Liquid to be detected | Water. |
Resettability | Required.Guidance for specification option: If the contamination is soluble then the cable can be removed, washed (clean water only), dried and returned to use subject to the level of contamination. |
Cable length | To suit the application.Guidance for specification option: Available between 5 and 15 m lengths. Insert requirement. |
Leak location accuracy | +/- 1 m. |
Accessories | Not required.Factory installed metal connectors. |
Construction | Four core, all polymeric construction with a polyester fabric wrap and protective outer braid. |
Diameter | 6 mm. |
Fixing | Standard 6 mm tower clips, self-adhesive clips or tie- wraps. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polymeric Polyester Fabric |
Literature

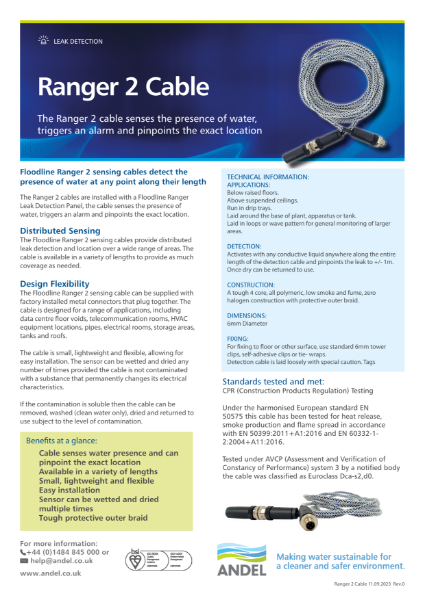

Ranger 2 Cable
