RailRoad Inline Loop - Straight Seating
Verified by manufacturer 5 months ago
RRLBLS7 1950
RRLBLS7 1950

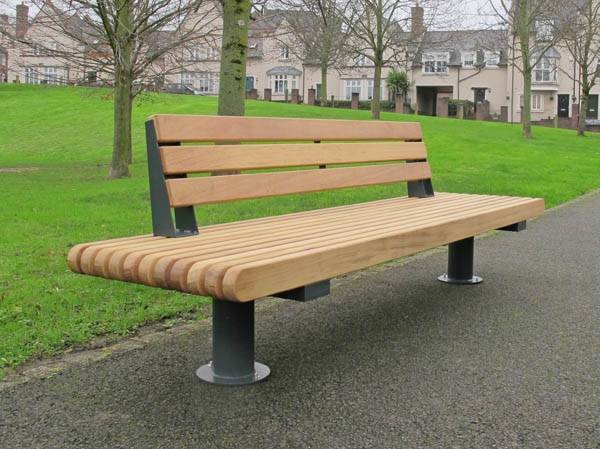

Straight timber seating.
Application
Suitable for long term, independent and continuous run straight line external seating.
Description
RailRoad Inline Loop benches and seats offer a cost effective alternative for independent and continuous run, straight line seating.
Features and benefits:
- Seat platform and backrest slats are horizontally orientated to run in line with the seat length, eradicating the need for a full length steel support chassis.
- Seat assemblies are supplied as starter, mid and end modules to allow long lines of visually seamless continuous seating, with backrests, armrests and tablet surfaces all available.

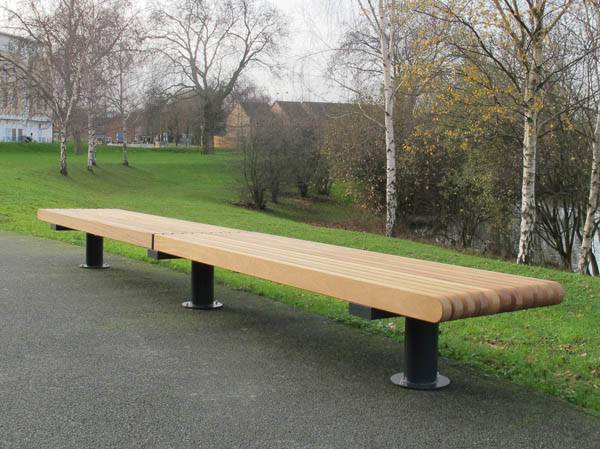

- Independent benches and seats are also available.
General information
Color | Brown Grey Other Guidance for specification option: Polyester powder coated to any RAL colour. |
Finish | Powder-coated Smooth Guidance for specification option: Planed iroko hardwood timber finish. |
Material | Steel Guidance for specification option: Platform chassis, armrests and backrest supports: Galvanized steel. Timber |
Shape | Rectangle |
Length | 1950 mm 2350 mm 2650 mm |
Width | 700 mm |
Height | 450 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/220 Benches Q50/225 Seats Q50/30 Street furniture |
Product range |
Specification data - Street and site benches
Length | 1.95 m. |
Base | Bolt down.Guidance for specification option: Standard. Root fixed. |
Material | Standard: Steel frame and iroko hardwood timber slats.Guidance for specification option: Platform chassis, armrests and backrest supports: Galvanized steel. |
Finish as delivered | Standard: Glavanized frame and smooth planed slats. |
Colours | RAL.Guidance for specification option: Polyester powder coated to any RAL colour. |
Accessories | Not required.Tablet surfaces.Guidance for specification option: 350 mm wide. |
Slats | Iroko timber, smooth planed finish. Guidance for specification option: Standard. Iroko timber, UV protective finish. |
Frame | Steel, hot dip galvanized and polyester powder coated, RAL. Guidance for specification option: Insert colour requirement. |
Armrests | Not required. Steel with iroko timber top. |
Width | 700 mm. |
Height: | 450 mm. |
Form | Independent bench. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel Guidance for specification option: Platform chassis, armrests and backrest supports: Galvanized steel. Timber |
Literature
RailRoad Planters & Seating Range Brochure
