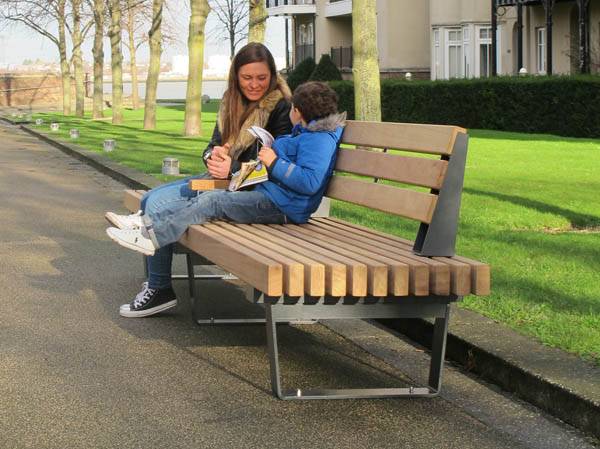

RailRoad Inline Delta - Straight Seating
Verified by manufacturer 6 months ago
RRLBDS7 1950
RRLBDS7 1950
Straight modular timber seating.
Application
Suitable for long term, independent and continuous run straight line external seating.
Description
RailRoad Inline Delta benches and seats offer a cost effective alternative for independent and continuous run, straight line seating.
Features and benefits:
- Seat platform and backrest slats are positioned horizontally to run in line with the seat length.
- Seat assemblies are supplied as starter, mid and end modules to allow long lines of visually seamless continuous seating, with backrests, armrests and tablet surfaces all available.
- Independent benches and seats are also available.
General information
Color | Brown Grey Other Guidance for specification option: Polyester powder coated to any RAL colour. |
Finish | Powder-coated Smooth Guidance for specification option: Planed iroko hardwood timber finish. |
Material | Steel Timber |
Shape | Rectangle |
Length | 1950 mm 2650 mm 2350 mm |
Width | 435 mm 700 mm |
Height | 450 mm 875 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/220 Benches Q50/225 Seats Q50/30 Street furniture |
Product range |
Specification data - Street and site benches
Length | 1.95 m. |
Base | Base plated.Guidance for specification option: Standard, pre-drilled for M10 or M12 ground anchors. |
Material | Standard: Steel frame and iroko hardwood timber slats. |
Finish as delivered | Standard: Glavanized frame and smooth planed slats. |
Colours | RAL.Guidance for specification option: Polyester powder coated to any RAL colour. |
Accessories | Not required.Tablet surfaces.Guidance for specification option: 350 mm wide. |
Slats | Iroko timber. Guidance for specification option: Standard, smooth planed finish. Iroko oiled timber. |
Frame | Steel, hot dip galvanized and polyester powder coated, RAL. Guidance for specification option: Insert colour requirement. |
Armrests | Not required. Steel with iroko timber top. |
Width | 700 mm. |
Height: | 450 mm. |
Form | Independent bench. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Timber |
Manufacturing plant location | |
Recyclability | TImber and Steel can be sperated and reused or recycled |
Expected Life | 20 year |
Literature
RailRoad Planters & Seating Range Brochure
