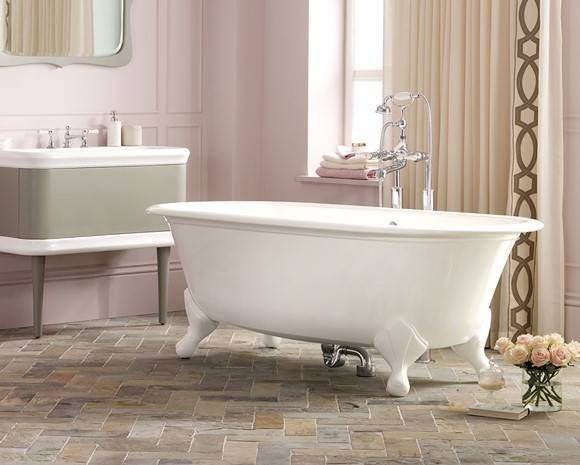

Radford - Freestanding Bath
Verified by manufacturer 3 months ago
Radford Bath, QUARRYCAST™ White (RAD-N-SW-OF, FT-RAD-SW).
Freestanding bath, 175 L capacity.
Application
Luxury freestanding bath suitable for domestic and hospitality settings.
Description
Double-ended roll-top freestanding bath.
Features and benefits:
- Elegant rim detailing offering classic symmetry.
- Statement piece.
- Made with QUARRYCAST™ a unique blend of Volcanic Limestone™ and high-performance resins.
- Delivers unrivalled strength, durability, and beauty.
- Available in a range of RAL colours.
General information
Color | White |
Finish | Gloss |
Material | Limestone Stone |
Shape | Oval |
Length | 1902 mm |
Width | 910 mm |
Height | 650 mm |
Warranty description | Eight year Guidance for specification option: For commercial use. 25 year Guidance for specification option: For residential use. |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Free-standing. |
Materials | QUARRYCAST™ volcanic limestone. |
Colour | White. |
Size | 1902 x 910 mm. |
Volume to overflow (maximum) | 175 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes.Guidance for specification option: Tap holes cannot be drilled for this product. |
Overflow | Overflow hole. |
Waste | Bottom waste outlet.Guidance for specification option: Waste diameter: 52 mm. |
Material Finish | Gloss. |
Weight | 77 kg. |
Dimensions – height | 650 mm. |
Feet | QUARRYCAST™ white. Guidance for specification option: Feet product code: FT-RAD-SW. Manufacturer guidanceFeet are supplied in the same colour as bath as standard. |
Recommended discharge pipe | Not required. K-30-xx. K-31-xx. Manufacturer guidance(Recommended wastes): |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
EU_Radford_2022
