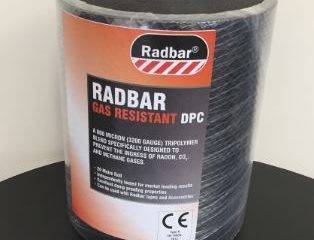

Radbar® Gas Resistant Damp Proof Course

Verified by manufacturer 5 months ago

Capital Valley Plastics Ltd

Radon, methane and carbon dioxide resistant damp proof course. Manufactured from a blend of virgin polymers this DPC complied with BS8485 and is BBA certified.

Jump to:
+44 (0)1495 772255 Website

Application

Manufactured from a blend of high quality virgin polymers Gas Resistant DPC is suitable for use as horizontal or stepped damp-proof courses (including cavity trays), in either solid or cavity walls of brick, stone or concrete. Specifically produced for use on sites contaminated with methane and carbon dioxide this DPC is robust and embossed for improved mortar adhesion

Description

Manufactured from a blend of high-quality virgin polymers, resulting in a high puncture and tear resistance. This DPC provides excellent protection from methane and carbon dioxide, it is independently certified by the BBA and complies with BS8485:2015+A1:2019.


Features and benefits:

  • Resistant to water (including water vapour) and radon, methane and carbon dioxide gases passing through the ground floor slab.
  • High mortar bond properties due to its embossing.
  • Complies with NHBC recommendations.
  • UKCA and CE marked in accordance with BS EN 14909:2012.
  • Complies with BS EN 14909:2012 and BS 8485:2015.


Performance:

  • Radon permeability (10-¹² m²/s) 6.
  • Radon transmittance (10-9 m/s-¹) 15.
  • Methane permeability (ISO 15105-1 ml/m2/day/atm) 33.95.
  • Water vapour transmittance (g/m²/day) 0.1.
  • Tear strength (Nail) (N) >700.
  • Tensile strength (N/mm²) >22.
  • Durability (heat ageing): Pass.
  • Resistance to low temperature: Pass -40°C.

General information

Color

Black

Finish

Embossed

Material

Low density polyethylene (LDPE)

Shape

Other

Length

20000 mm

Width

Bespoke

Warranty description

Lifetime

Uniclass

Pr_25_57_21_35 Gas-resistant damp-proof coursesPrimary

CAWS

D21/350 Gas-retardant membrane

D21/38 Gas-retardant membranes

F30/360 Gas-resistant damp-proof courses/ cavity trays

F30/54 Gas-resistant dpcs/ cavity trays

Specification data - Gas-resistant damp-proof courses

Material

High-quality virgin polymers.

Size:

0.8 x 20 000 x 100–1200 mm.

Colour

Black.

Accessories

None.

Radbar double sided gas tape.

Guidance for specification option:

For jointing membrane edges.

Radbar preformed cloaks.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Literature

RADBAR Gas Resistant DPC BBA Certificate

RADBAR Gas Resistant DPC BBA Certificate
