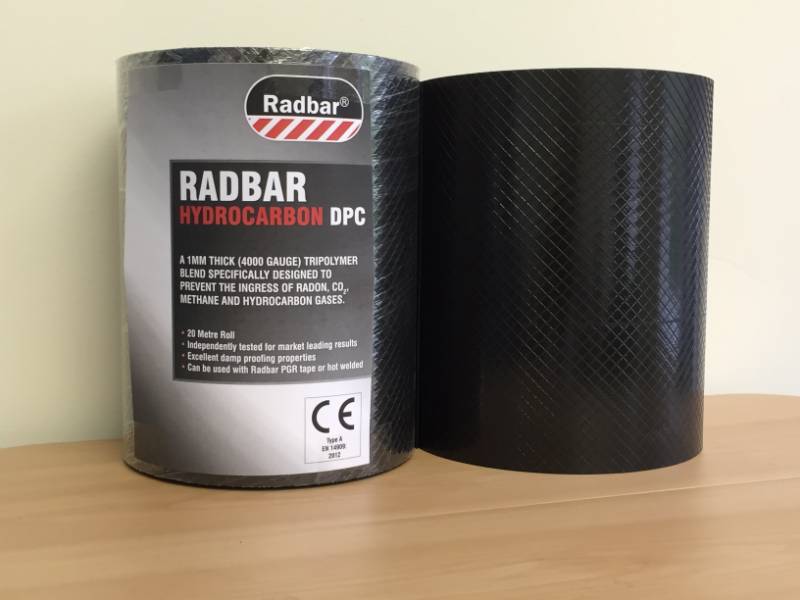

Radbar® Hydrocarbon DPC
Verified by manufacturer 6 months ago
Hydrocarbon damp proof course. To protect against the ingress of Hydrocarbons and VOC's in vertical and horizontal (including Cavity Trays) applications. Suitable for cavity tray use.
Application
Suitable for protection against the ingress of volatile organic compounds and hydrocarbons.
Description
Manufactured from a blend of virgin polymers engineered to provide protection against the ingress of hydrocarbons and VOC’s. Ideal for use on Brownfield projects Hydrocarbon DPC is extremely robust and embossed for greater mortar adhesion. Also suitable for multi-story use up to 18m.
The product complies with BS 8485: 2015 and CIRIA C748.
Performance:
- Tensile strength EN 12311 >150 N/50mm.
- Elongation EN 12311 >450%.
- Joint strength EN 12317-2 520 N.
- Watertightness 2kPA EN 1928 Pass.
- Resistance to impact EN 12691 660 mm.
- Resistance to static loading EN 12730 20 kg.
- Resistance to nail tear EN 12310-1 >700 N.
- Durability (heat ageing) EN 1926 Pass.
- Durability (chemical resistance) EN 1847 Pass.
- Resistance to low temperature EN 495-5 Pass at -40°C.
- Water vapour permeability EN 1932 0.08 g/m²/day.
- Radon permeability 9.5 x 10-¹² m²/S.
- Methane permeability ISO 15105-1 28 ml/m²/day/atm.
- Diesel permeability ISO 6179 0.004 g/m²h.
- Petrol permeability ISO 6179 5.172 g/m²h.
- Xylene permeability ISO 6179 4.845 g/m²h.
- Toluene permeability ISO 6179 6.695 g/m²h.
- Chemical resistance - Acidic EN 14414-A Pass.
- Chemical resistance - Basic EN 14414-B Pass.
- Chemical resistance - Solvents EN 14414-C Pass.
- Chemical resistance - Synthetic leachates EN 14414-D Pass.
- Resistance to leaching - Hot water EN 14415-A Pass.
- Resistance to leaching - Aqueous Alkaline EN 14415-B Pass.
- Resistance to leaching - Organic Alcohol EN 14415-C Pass.
General information
Color | Black |
Finish | Embossed |
Material | Low density polyethylene (LDPE) |
Shape | Other |
Length | 20000 mm |
Width | Bespoke |
Warranty description | Lifetime |
Uniclass | |
CAWS | F30/46 Damp-proof course – plastics F30/320 Damp-proof courses – plastics |
Specification data - Gas-resistant damp-proof courses
Material | Virgin polymers. |
Size: | 1 x 100–1200 x 20 000 mm. |
Accessories: | None. Jointing tape, double-sided and overlap tape. Top Hats, for sealing pipe penetrations. Pre-formed corners. Detailing Strip, self-adhesive for corners and penetrations. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature
RADBAR Hydrocarbon DPC BBA Certificate
