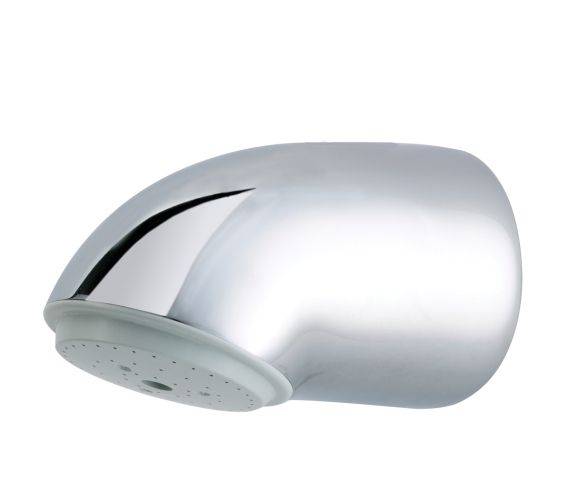

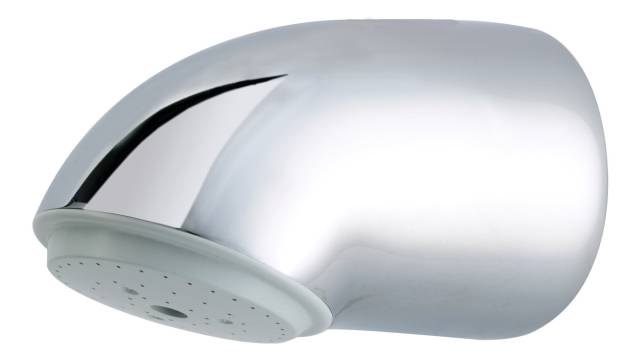

Vandal resistant shower fitting for connection to concealed pipe work with fixed spray plate and 9 L/min flow regulator.
A vandal resistant shower fitting for connection to concealed pipework, with single spray pattern plate with adjustable angle of discharge and 9 litres/ minute flow regulator.
Color | Silver |
Finish | Chrome |
Material | Brass Spray body: Brass, polished chrome finish, Mounting bush/Inlet nipple: Brass, Spray cartridges: Engineering plastic, Flow Regulator: Engineering plastic, Strainer: Stainless steel, VR security plate: Plated mild steel. |
Length | 112.00 mm |
Width | 67.00 mm |
Height | 67.00 mm |
WarrantyDescription | Two year Two years parts and labour as standard. Five year Extended to five years parts and labour if commissioned by Rada. UK only. |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units |
Product range |
Form | Single function fixed head. |
Materials | - |
Body | Brass.
|
Finish and colour | Polished chrome. |
Accessories | Not required. 300R - Adjustable spray cartridge. With Start, Active and Relax modes, chrome finish. 310R - Hard water spray cartridge. Self-draining with 'push-clean' action, chrome finish. 400R - High performance spray cartridge. With start, Pulsate and Champagne modes, white finish. VR security kit. Concealed mounting plate offering greater security. |
Connections | 15 mm compression connection to concealed pipework. |
Options | None. 6 litre flow regulator. Minimum flow rate 6 litres/minute to achieve fully formed spray pattern. |
TemperatureRange | 5–65°C. Designed to accept water supplied between 5°C and 65°C. |
Water pressure | 0.1 bar (minimum), 5.0 bar (maximum). Maintained pressure at the inlet. |
Country of product manufacture | United Kingdom |
