Rada V12 B Diverter

Rada V12 B Diverter

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Rada

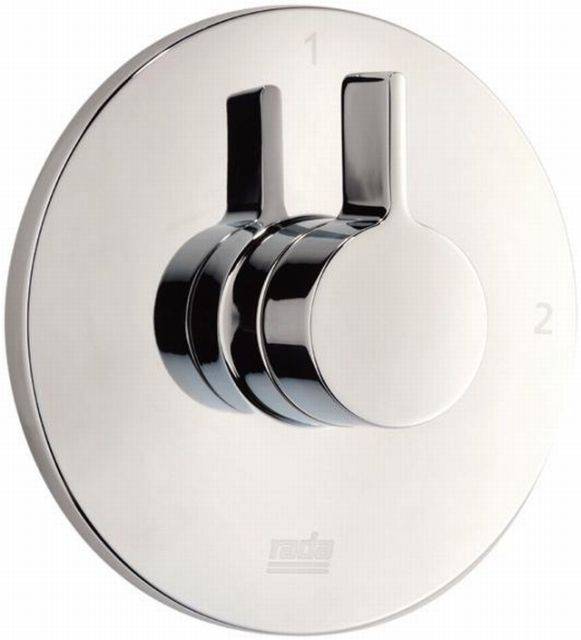

Concealed, lever operated diverter valve, designed for use with the Rada V12 Concealed Shower.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com
Description

Concealed, lever operated diverter valve, designed for use with the Rada V12 Concealed Shower. Two positions for standard fixed head and hand-held shower handset.

Features:

  • Two outlet diverter valves, designed to add extra convenience and flexibility to showering.
  • Designed to be installed on the outlet of the Rada V12 thermostatic shower valve.
  • Simple to use, allows you to divert water between two different outlets off the same shower valve.
  • Suitable for either high or low pressure systems.
  • Exposed or concealed configurations.

Approvals:

  • WRAS listed (Water regulations advisory scheme).
  • Designed, manufactured and supported in accordance with accredited BS EN ISO 9001:2008 Quality management systems and BS EN ISO 14001:2004 Environmental Management Systems.

General information
Features

Single lever, two positions for standard fixed head and hand-held shower handset

Size

0.0

WarrantyDescription

Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only

Uniclass 2015
Pr_40_20_87_81 Shower thermostatic water supply setsPrimary
CAWS

N13/375 Shower units

N13/40 Shower units

S90/67 Thermostatic mixing valves

S90/680 Thermostatic mixing valves

Specification data - Shower thermostatic water supply sets
Product Reference

Rada V12 B Diverter (1.1651.006)

Standard product features

Connections:

Inlet/Outlets: 15 mm compression.

Operation:

The diverter outlet is operated by an easy grip lever, with outlet positions clearly identified.

Temperature Range:

Normal showering temperatures: full cold - 45°C. However the materials of construction are capable of withstanding temperatures up to 85°C.

Pressure/ Flow Rates:

  • These diverters are free flowing so the performance of the showers will be largely dependent on the shower fittings installed.
  • At supply pressures > 0.5 bar, the 9 L/min flow regulator fitting is recommend or for increased water saving a 6 l/min flow regulator should be fitted (supplied).

Materials:

  • Body: DZR brass.
  • Lever: Chrome plated zinc die cast with a chrome plated ABS trim.

Digital objects
PlatformCompatibleVersionCertified to
AECOsim
- 1.0
IFC
- 6 1.3
Revit
Revit 2016 4 1.3
Download now from NBS National BIM Library
Third party certifications
  • WRAS listed (Water Regulations advisory scheme)
