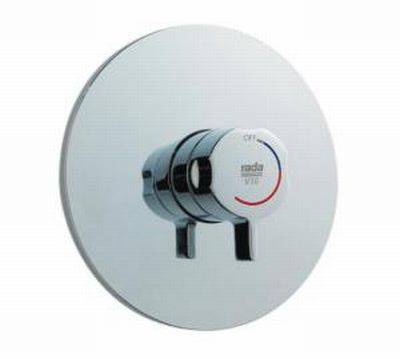

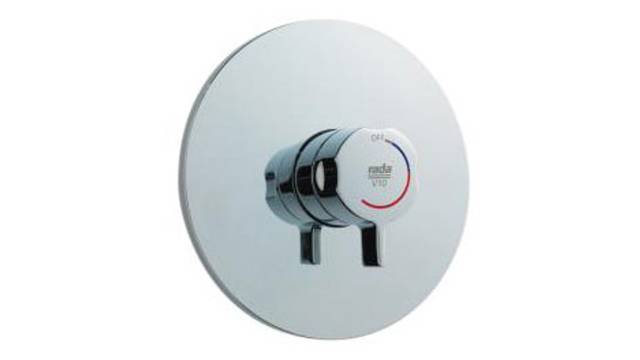

Rada V10 Concealed Shower Valve

Rada V10 Concealed Shower Valve

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type


TMV2 approved surface mounted, single sequential thermostatic shower valve suitable for commercial and semi-domestic applications.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com

The Rada V10 Built-in single sequential thermostatic shower valve is supplied complete with integral strainers and optional flow regulators.

The Rada V10 mixer incorporates a proven thermostatic cartridge providing extended service- free reliability, protected by integral inlet filters.


  • Buildcert TMV2 Scheme Approved.
  • HP-S High Pressure Showering.
  • LP-S Low Pressure Showering.
  • WRAS listed (Water regulations advisory scheme).
  • Designed, manufactured and supported in accordance with accredited BS EN ISO 9001:2008 Quality management systems and BS EN ISO 14001:2004 Environmental Management Systems.

General information




Single sequential operation off-cold-warm; Easy grip handle complete with durable, clear graphics; Robust construction to withstand heavy usage in public areas; Optional 6 L/min flow regulator for increased water savings. A 9 L/min flow regulator is also supplied




Body: DZR Brass, Lever: Chrome Plated Zinc Die Casting




Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only

Uniclass 2015

Pr_40_20_87_81 Shower thermostatic water supply setsPrimary


S90/67 Thermostatic mixing valves

S90/680 Thermostatic mixing valves

Specification data - Shower thermostatic water supply sets

Product Reference

Rada V10 Concealed Thermostatic Mixing Valve (1.1651.005)

Standard product features


  • Inlets: 15 mm compression.
  • Outlet: ½” BSP Flat Face/ 15 mm compression.
  • Standard connections are: hot- left, cold- right, outlet- bottom or top.


The Rada V10 is operated via a single sequential control which when rotated initially opens the valve, then increases the temperature from cold to a pre-set maximum.

Temperature Range:

  • The maximum temperature that can be selected is factory set at approximately 41˚C, but this can be reset on site if required.
  • Cold water temperature range 5–20˚C.
  • Hot water temperature range (recommended) 55–65˚C.
  • Maximum hot water temperature 85˚C

Note: In the event of loss of either supply, the valve will automatically shut off. Minimum temperature of the blend to either supply is 12˚C.

For reasons of general safety, hot water storage temperatures should be maintained at between 60–65˚C where serving ablutionary applications. The mixing valve can accept temporary excursions above 85˚C without damage, however operation at such elevated temperatures is not recommended.

Pressure/ Flow Rates:

  • Minimum dynamic supply pressure: 0.15 Bar
  • Maximum dynamic supply pressure: 5 Bar
  • Minimum flow rate: 3 L/min
  • Maximum flow rate: 30 L/min
  • Maximum pressure ratio: should not exceed 10:1 in favour of either supply during flow
  • Maximum static pressure: 10 Bar.


  • Body: Chrome Plated DZR Brass.
  • Lever: Chrome Plated Zinc Die Casting.

Digital objects
PlatformCompatibleVersionCertified to
Revit 2016 1 1.3
- 1 1.3
Download now from NBS National BIM Library
Third party certifications
  • Buildcert: TMV2 Scheme Approved
