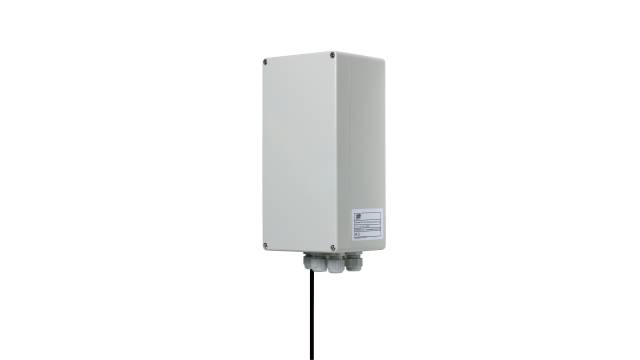

Rada Universal 12 V AC Transformer


Rada Universal 12 V AC Transformer providing safe low voltage supply to up to 16 Rada Mono Control Unit

Jump to:
+44 (0)844 571 1777 www.radacontrols.com

Universal 12 V AC Transformer providing safe low voltage supply to 16 (maximum) Rada Pulse Mono Control Units.

General information



Designed to provide safe, low voltage 12 V AC supply to up to 16 Rada Pulse Mono Control Units; Fuse protected internally; Supplied with 2m length of pre-connected supply cable


120 x 90 x 240 mm


Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only

Uniclass 2015
Pr_40_20_87_81 Shower thermostatic water supply setsPrimary
Specification data - Shower thermostatic water supply sets
Product Reference

Rada Universal 12v AC Transformer (

Standard product features


  • The transformer enclosure is water resistant and intended for wall mounting to a suitable flat dry surface. It is intended for permanent connection to the fixed electrical wiring of the mains electric system.
  • A 2 metre length of 230 V supply cable is supplied pre-connected within the box.
  • Safe, low-voltage 12 V AC output is fuse protected internally.

Size (w x h x d):

  • 120 x 240 x 90 mm.


  • Designed, manufactured and supported in accordance with accredited BS EN ISO 9001 and BS EN ISO 14001.
  • Complies with all relevant directives for CE marking.

Electrical specification:

  • Supply voltage: 230 V AC ±10%.
  • Power consumption: 160 VA.
  • Output voltage: 12 V AC ±10%.
  • Protection: IP54.
  • Ambient temperature: 0–40 °C.
  • Maximum humidity: 80% at 25 °C.

Digital objects
PlatformCompatibleVersionCertified to
- 1 1.3
Revit 2016 1 1.3
Download now from NBS National BIM Library
